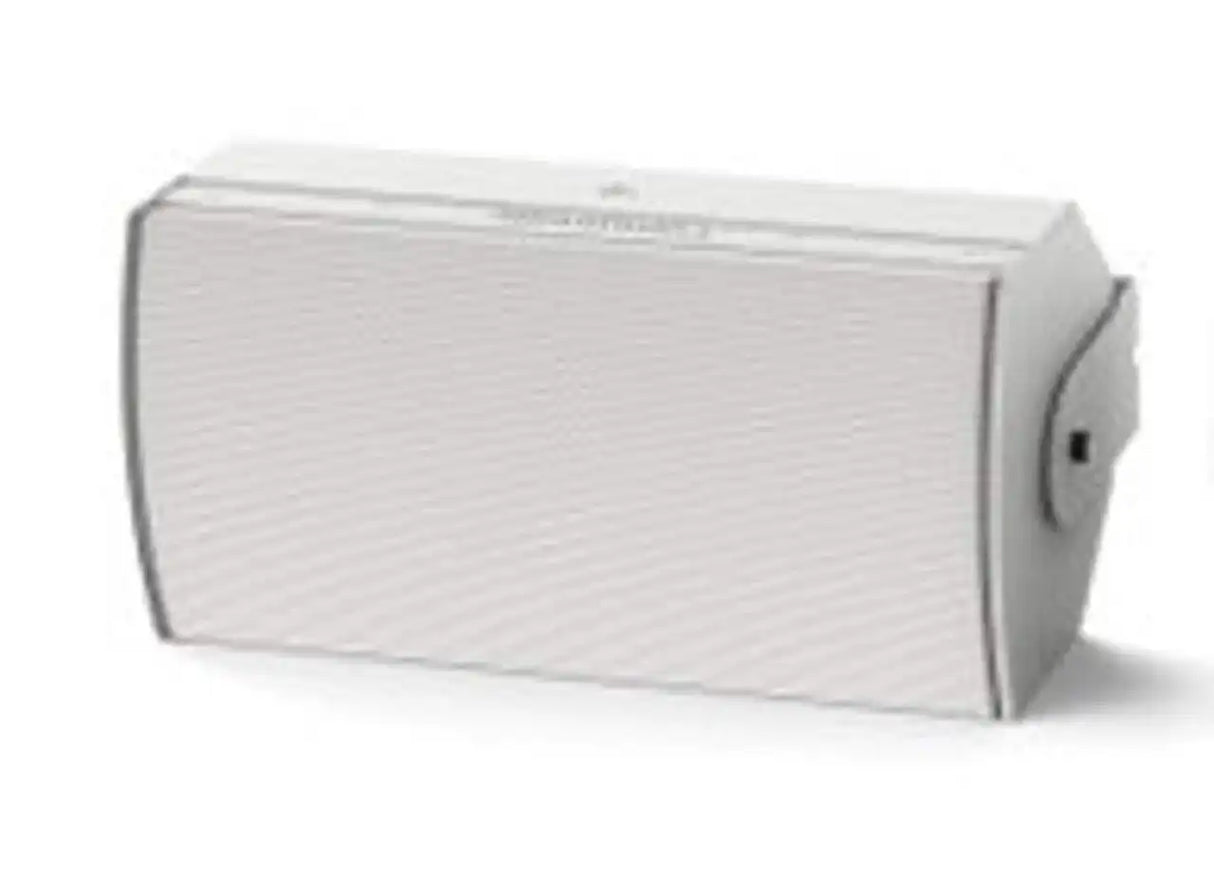

Biamp Community IC6-2082/96 High Output Dual 8-Inch 2-Way 90 X 60 Indoor Speaker (White) - 911.1024.900

The Community IC6-2082/96 is designed for demanding extended high output, high performance applications without sacrificing fidelity or coverage consistency. Most symmetrical dual 8" 2-way loudspeakers suffer from serious coverage inconsistencies through the crossover region. The IC6-2082/96 solves this problem by using a very high quality, low distortion 1.7" diaphragm neodymium HF compression driver on a large field-rotatable horn that is crossed over to partially baffled 8" LF drivers at an unusually low crossover frequency. The combination of baffles and low crossover point allows the IC6-2082/96 to perform similarly to a coaxial loudspeaker, resulting in a consistent, symmetrical, and wide coverage pattern through its operating range. The long excursion LF drivers and low velocity port effortlessly extend LF performance at any output level. Additionally, 16 ohm or 70V/100V models expand application flexibility both indoors and out. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets.
I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint Flyware modular array brackets.



• Engineered for demanding high output, high performance applications
• Exceptional fidelity with elegant I SERIES aesthetics
• Large, field-rotatable HF horn and LF pattern control technology for wide, consistent coverage
• Low impedance (16 ohm) or 70V/100V models available
• Low profile U-Bracket or Vertical Yoke available, compatible with most third party wall and ceiling brackets

Community IC6-2082/96 Specifications:

• Technical Specifications
• Operating Mode: Low Impedance or 70V/100V models
• Operating Environment: Indoor
• Operating Range: 50 Hz to 19.5 kHz
• Nominal Beamwidth (H x V): 90° x 60°, rotatable waveguide
• Transducers
• LF 2 x 8" (203mm) ferrite driver, 1.5" (37mm) voice coil
• HF 1 x 1" (25mm) exit, 1.7" (44mm) voice coil, ketone polymer diaphragm, neodymium compression driver
• Recommended Amplifiers: 300W - 600W @ 16 ohms, (69V - 98V)
• Physical
• Input Connection: (1) Screw terminal block (5-position)
• Mounting Points: (9) M10 threaded inserts; (4) M8 threaded inserts (rear)
• Weight: 31 lbs (14.1 kg) loudspeaker
• Dimensions (H x W x D): 11.30" x 22.46" x 10.62" (287 x 571 x 270 mm)
