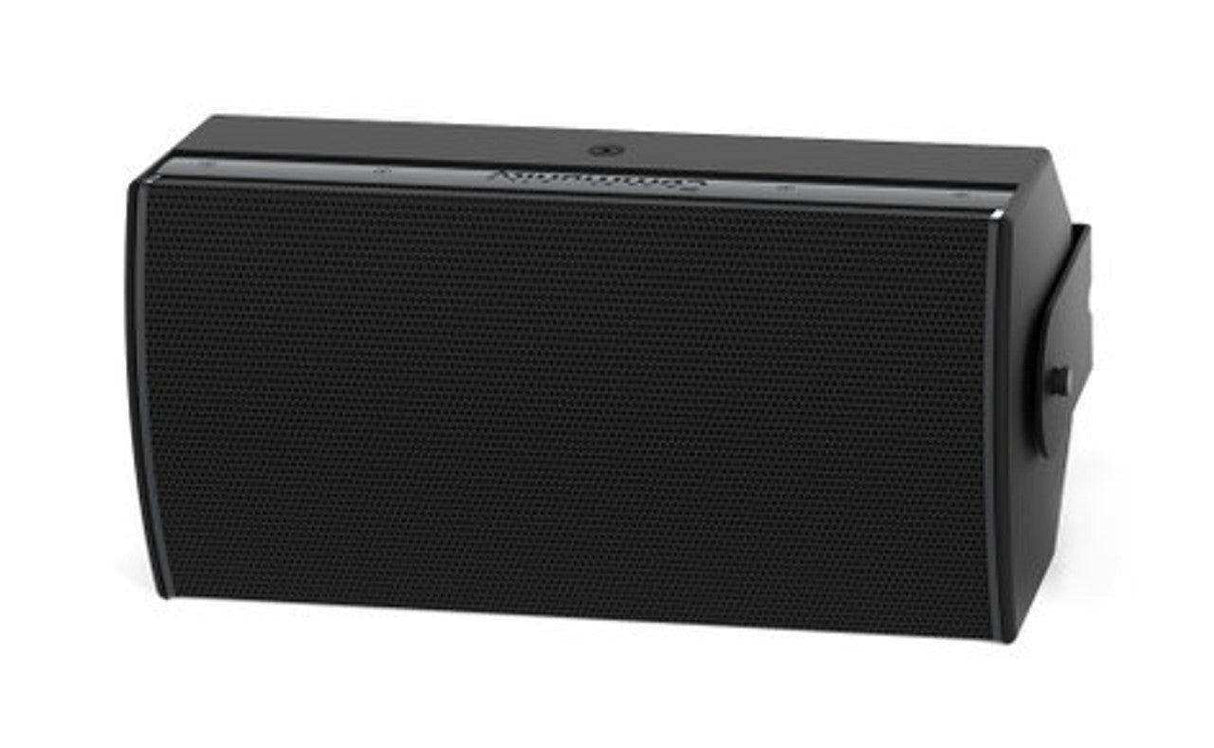

Biamp Community IC6-2082/96 High Output Dual 8-Inch 2-Way 90 X 60 Indoor Speaker (Black) - 911.1023.900
Biamp Community IC6-2082/96 High Output Dual 8-Inch 2-Way 90 X 60 Indoor Speaker (Black) - 911.1023.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community IC6-2082/96 High Output Dual 8-Inch 2-Way 90 X 60 I...
Product Overview
The Biamp Community IC6-2082/96 is a high-output dual 8-inch two-way installation loudspeaker providing a focused 90 by 60 degree pattern for demanding music and speech reinforcement. It is intended for large commercial spaces that need controlled, high-SPL coverage. Relevant searches include dual 8-inch installation loudspeaker, 90x60 commercial speaker, and high-output two-way loudspeaker.
Product Description
Like its wider-pattern sibling, the IC6-2082/96 uses a low-distortion 1.7-inch diaphragm neodymium HF compression driver on a large field-rotatable horn crossed over to partially baffled 8-inch LF drivers at a low frequency, yielding coaxial-like coverage consistency. Long-excursion woofers and a low-velocity port extend low-frequency output at any level, and 16 ohm or 70V/100V versions broaden application flexibility. Multiple attachment points provide compatibility with Community and third-party mounting brackets.
Key Features
- Dual 8-inch high-output LF — Two 8-inch ferrite drivers with low-velocity porting provide extended low-frequency output at high levels.
- Focused 90x60 coverage — A field-rotatable HF horn delivers controlled 90 by 60 degree dispersion for targeted listening areas.
- Coaxial-like consistency — Partially baffled woofers and a low crossover point maintain symmetrical coverage through the operating range.
- Flexible impedance options — Available as low-impedance (16 ohm) or 70V/100V for distributed or direct-drive systems.
- Versatile mounting — Nine M10 and four M8 inserts support U-bracket, vertical yoke, and BalancePoint Flyware hardware.
Typical Applications
- House of worship
- Auditorium
- Commercial meeting space
- Multi-purpose room
Technical Specifications
| Configuration | Two-way, full-range dual 8-inch |
| Operating Mode | Low impedance (16 ohm) or 70V/100V models |
| Operating Environment | Indoor |
| Operating Range | 50 Hz to 19.5 kHz |
| Nominal Beamwidth (H x V) | 90 by 60 degrees, rotatable waveguide |
| LF Transducer | 2 x 8-inch (203mm) ferrite, 1.5-inch voice coil |
| HF Transducer | 1 x 1-inch exit, 1.7-inch voice coil ketone polymer neodymium compression driver |
| Recommended Amplifiers | 300W - 600W @ 16 ohms (69V - 98V) |
| Input Connection | 5-position screw terminal block |
| Mounting Points | 9 x M10, 4 x M8 threaded inserts |
| Weight | 31 lbs (14.1 kg) |
| Dimensions (H x W x D) | 11.30 x 22.46 x 10.62 in (287 x 571 x 270 mm) |
| Warranty | Biamp Systems 5-year warranty |
Frequently Asked Questions
What is the coverage pattern of the IC6-2082/96?
It provides a nominal 90 by 60 degree pattern from a field-rotatable waveguide for focused coverage.
Does it support 70V/100V operation?
Yes. The IC6-2082/96 is available in both 16 ohm low-impedance and 70V/100V versions.
Can it be flown in an array?
Yes. Nine M10 and four M8 inserts allow integration into I SERIES BalancePoint Flyware arrays.
