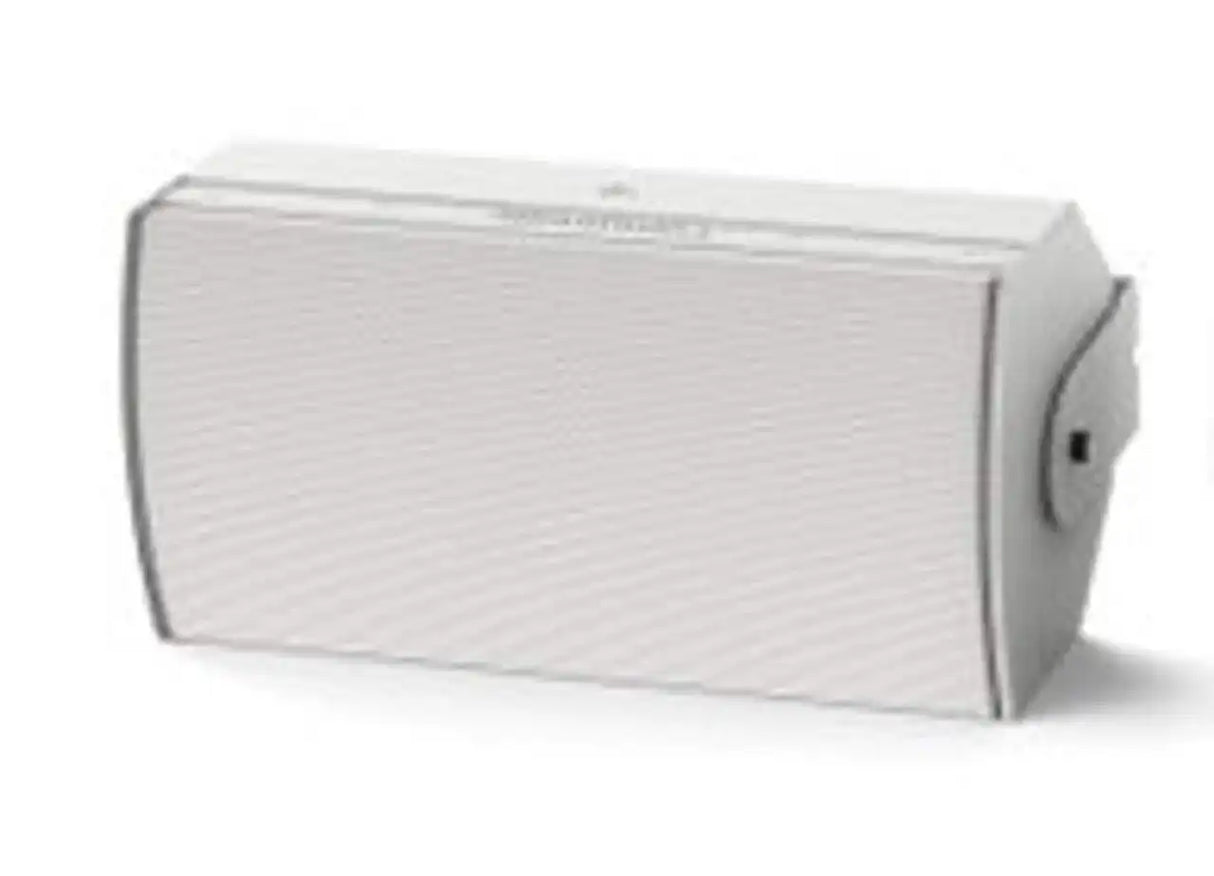

Biamp Community IC6-2082/26 High Output Dual 8-Inch 2-Way 120 X 60 Indoor Speaker (White) - 911.1022.900
Biamp Community IC6-2082/26 High Output Dual 8-Inch 2-Way 120 X 60 Indoor Speaker (White) - 911.1022.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community IC6-2082/26 High Output Dual 8-Inch 2-Way 120 X 60 ...
Product Overview
The Biamp Community IC6-2082/26 is a high-output dual 8-inch two-way installation loudspeaker delivering consistent 120 by 60 degree coverage for demanding foreground music and speech applications. It suits large commercial venues that require high SPL without sacrificing fidelity. Relevant searches include dual 8-inch installation loudspeaker, high-output commercial speaker, and 120x60 wide-coverage loudspeaker.
Product Description
The IC6-2082/26 solves the coverage inconsistencies common to symmetrical dual 8-inch designs by using a low-distortion 1.7-inch diaphragm neodymium HF compression driver on a large field-rotatable horn crossed over to partially baffled 8-inch LF drivers at an unusually low frequency. The result is symmetrical, wide, coaxial-like coverage through the operating range, while long-excursion woofers and a low-velocity port extend low-frequency output at any level. Multiple attachment points provide compatibility with Community and third-party brackets, and the model is offered in 16 ohm or 70V/100V versions.
Key Features
- Dual 8-inch high-output LF — Two 8-inch ferrite drivers with low-velocity porting deliver extended low frequency at high output levels.
- Coaxial-like coverage — A low crossover point and partially baffled woofers produce symmetrical, consistent 120 by 60 degree dispersion.
- Field-rotatable HF horn — The large rotatable waveguide allows pattern orientation to match portrait or landscape installation.
- Flexible impedance options — Available as low-impedance (16 ohm) or 70V/100V to suit a range of distributed and direct-drive systems.
- Versatile mounting — Nine M10 and four M8 inserts support U-bracket, vertical yoke, and BalancePoint Flyware array hardware.
Typical Applications
- House of worship
- Auditorium
- Commercial meeting space
- Multi-purpose room
Technical Specifications
| Configuration | Two-way, full-range dual 8-inch |
| Operating Mode | Low impedance (16 ohm) or 70V/100V models |
| Operating Environment | Indoor or weather-resistant outdoor |
| Operating Range | 49 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 120 by 60 degrees, rotatable waveguide |
| LF Transducer | 2 x 8-inch (203mm) ferrite, 1.5-inch voice coil |
| HF Transducer | 1 x 1-inch exit, 1.7-inch voice coil ketone polymer neodymium compression driver |
| Recommended Amplifiers | 300W - 600W @ 16 ohms (69V - 98V) |
| Input Connection | 5-position screw terminal block |
| Mounting Points | 9 x M10, 4 x M8 threaded inserts |
| Weight | 31 lbs (14.1 kg) |
| Dimensions (H x W x D) | 11.30 x 22.46 x 10.62 in (287 x 571 x 270 mm) |
| Warranty | Biamp Systems 5-year warranty |
Frequently Asked Questions
What coverage pattern does the IC6-2082/26 provide?
It delivers a nominal 120 by 60 degree pattern from a field-rotatable HF waveguide, configurable for portrait or landscape mounting.
Is a 70V/100V version available?
Yes. The IC6-2082/26 is offered in both 16 ohm low-impedance and 70V/100V configurations.
Can it be used outdoors?
The enclosure is rated for indoor or weather-resistant outdoor use depending on the configuration ordered.
