Biamp Community IC6-1082T96 High Output 8-Inch 2-Way 90 X 60 70V/100V Indoor Speaker (Black) - 911.1015.900
Biamp Community IC6-1082T96 High Output 8-Inch 2-Way 90 X 60 70V/100V Indoor Speaker (Black) - 911.1015.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community IC6-1082T96 High Output 8-Inch 2-Way 90 X 60 70V/10...
Product Overview
The Biamp Community IC6-1082T96 is an 8-inch two-way indoor installation loudspeaker with a built-in 200W autoformer and a focused 90 by 60 degree pattern for 70V/100V distributed audio. Relevant searches include 8-inch 70V loudspeaker, 90x60 commercial speaker, and indoor distributed installation speaker.
Product Description

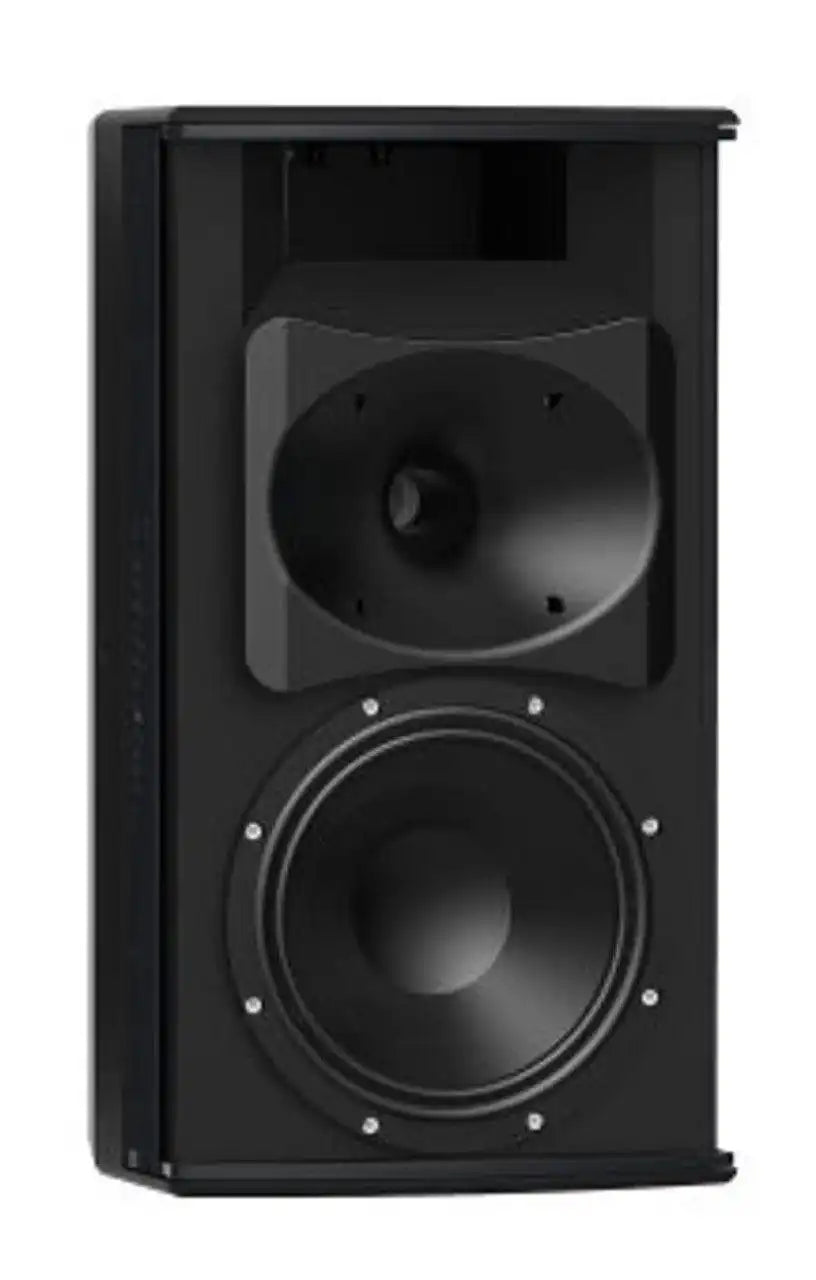

The IC6-1082T96 uses a single 8-inch ferrite LF driver and a 1-inch exit advanced polymer diaphragm ferrite compression driver on a large rotatable horn, crossing over at 1800 Hz. A 200W autoformer provides 70V taps of 25W, 50W, 100W, and 200W (50W, 100W, and 200W for 100V). The 11-layer cross-laminated 15mm Baltic birch enclosure with perforated steel grille and seven M10 plus four M8 inserts supports standalone or array use. The model is also available in 8 ohm low-impedance configurations.
Key Features
- Integrated 200W autoformer — Built-in autoformer provides 70V taps of 25W, 50W, 100W, and 200W and 100V taps of 50W, 100W, and 200W.
- Focused 90x60 coverage — A large field-rotatable HF horn delivers controlled 90 by 60 degree dispersion.
- Compact high output — A single 8-inch LF driver and flared low-velocity port extend low frequency from a small enclosure.

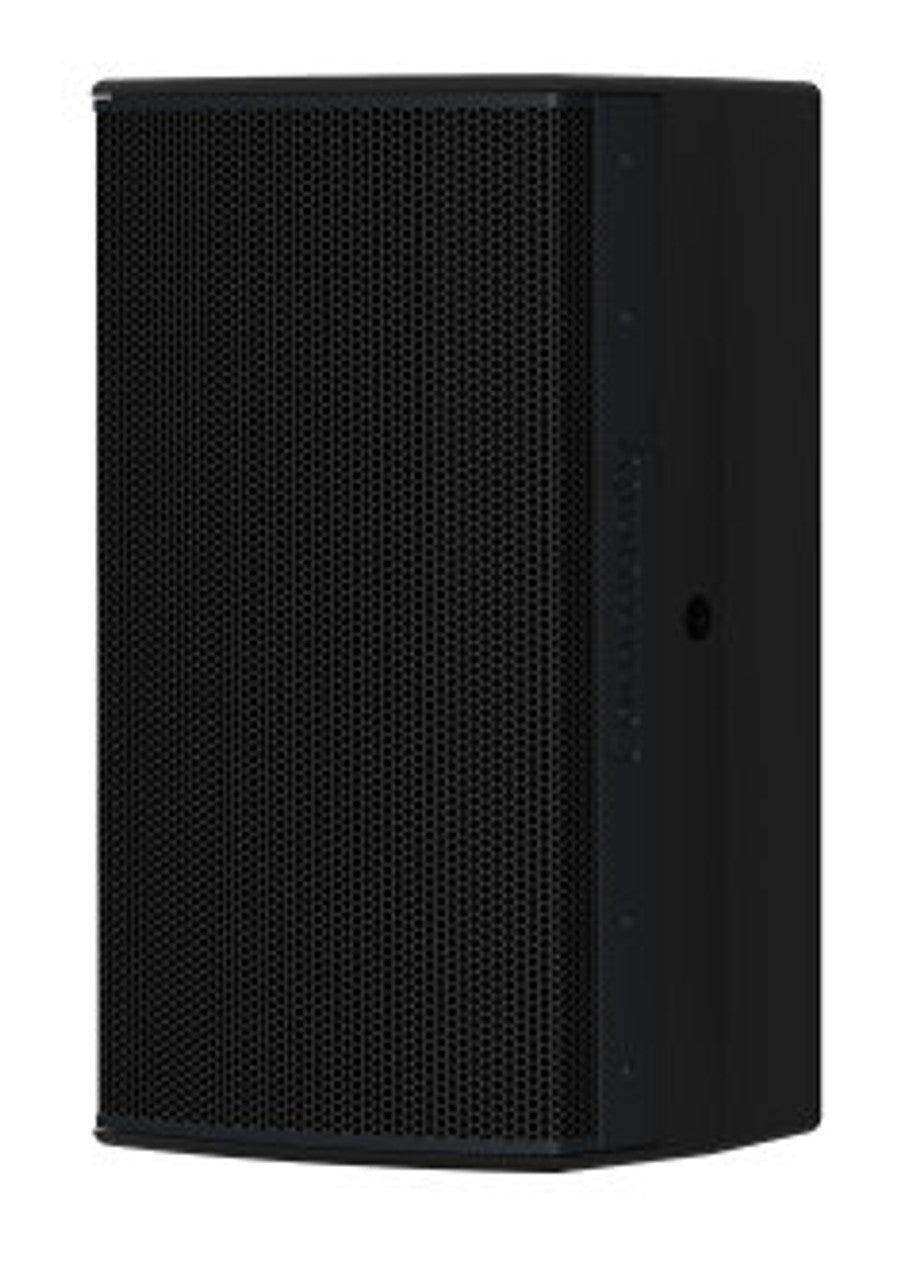

- Durable enclosure — 11-layer cross-laminated 15mm Baltic birch with a perforated steel grille withstands install environments.
- Flexible mounting — Seven M10 and four M8 inserts support U-bracket, vertical yoke, and most third-party brackets.
Typical Applications
- House of worship
- Auditorium
- Commercial meeting space
- Multi-purpose room
Technical Specifications
| Configuration | Two-way, full-range single 8-inch |
| Operating Mode | 70V/100V with 200W autoformer (low-impedance models available) |
| Operating Environment | Indoor |
| Operating Range | 53 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 90 by 60 degrees, rotatable waveguide |
| LF Transducer | 1 x 8-inch (203mm) ferrite, 1.8-inch voice coil |
| HF Transducer | 1 x 1-inch exit, 1.75-inch voice coil advanced polymer ferrite compression driver |
| Autoformer Taps (70V) | 25W, 50W, 100W, 200W |
| Recommended Amplifiers | 250W - 500W @ 8 ohms (45V - 63V) |
| Input Connection | 5-position screw terminal block |
| Mounting Points | 7 x M10, 4 x M8 threaded inserts |
| Weight | 29 lbs (13.2 kg) |
| Dimensions (H x W x D) | 18.75 x 10.40 x 10.63 in (476 x 264 x 270 mm) |
| Warranty | Biamp Systems 5-year warranty |
Frequently Asked Questions
Does the IC6-1082T96 include a 70V/100V transformer?
Yes. A 200W autoformer with 70V and 100V taps is built in.
What coverage pattern does it provide?
A nominal 90 by 60 degree pattern from a large field-rotatable HF horn.
Is it intended for indoor use?
Yes. This model uses a Baltic birch enclosure for indoor commercial installations.
