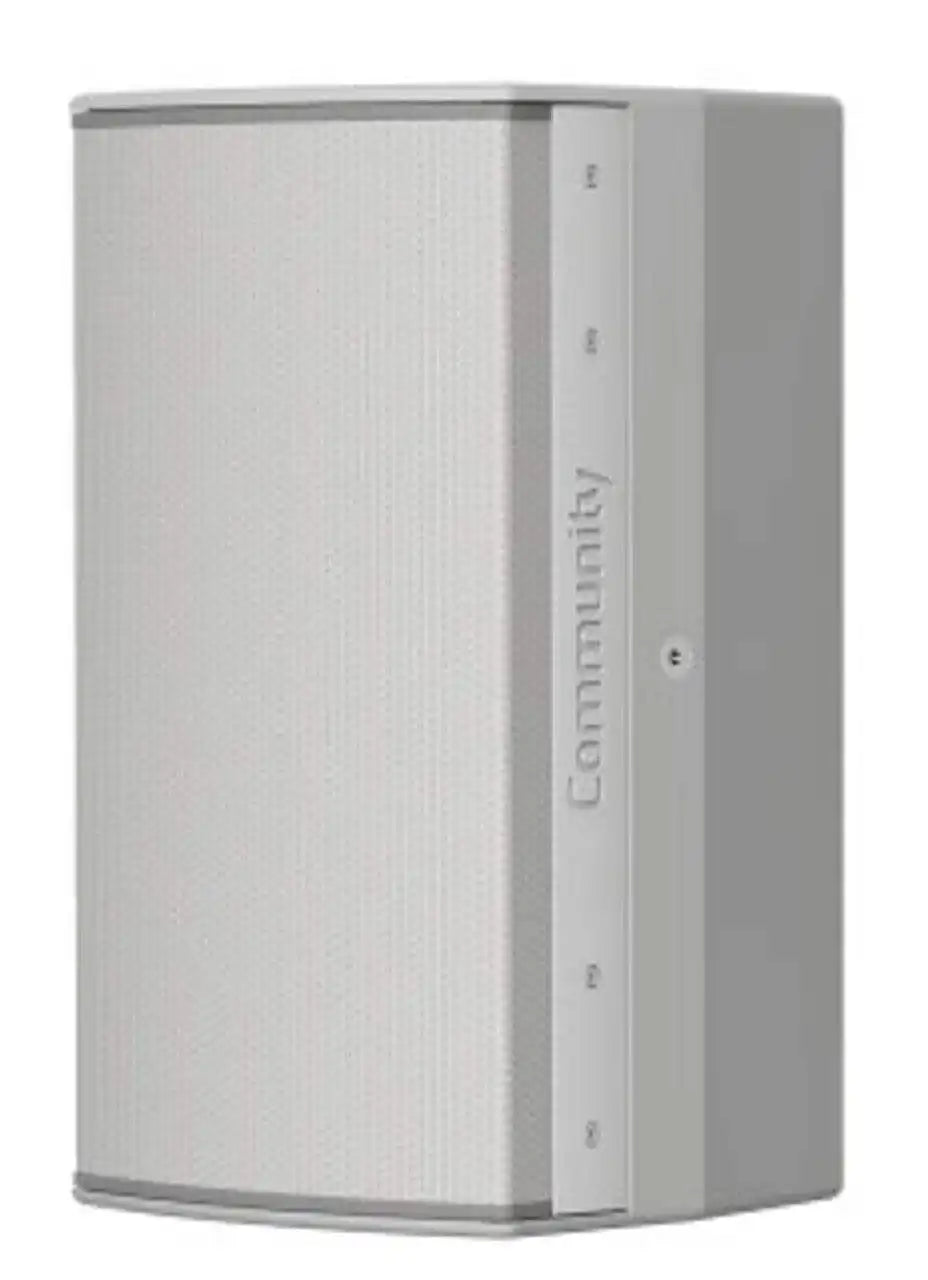

Biamp Community IC6-1082T26 High Output 8-Inch 2-Way 120 X 60 70V/100V Indoor Speaker (White) - 911.1014.900
Biamp Community IC6-1082T26 High Output 8-Inch 2-Way 120 X 60 70V/100V Indoor Speaker (White) - 911.1014.900
Roll over image to zoom in Click on image to zoom
Biamp Community IC6-1082T26 High Output 8-Inch 2-Way 120 X 60 70V/100V Indoor Speaker (White) - 911.1014.900
Biamp Community IC6-1082T26 High Output 8-Inch 2-Way 120 X 60 70V/100V Indoor Speaker (White) - 911.1014.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Community IC6-1082T26 High Output 8-Inch 2-Way 120 X 60 70V/100V Indoor Speaker (White) - 911.1014.900

Biamp SKU: 911.1014.900
No reviews
Price:
$1,816.00

Description

The IC6-1082T26 loudspeaker system is a two-way, full-range design incorporating one 8 in. (203mm) ferrite LF driver with an inherently weather resistant cone and one 1 in. (25mm) exit advanced polymer diaphragm, ferrite compression driver. The drivers are connected to an internal frequency dividing network with an acoustical crossover frequency of 1800 Hz. There is one five-terminal barrier strip on a recessed powder-coated 2mm thick steel input panel. The system is equipped with a high performance 200W autoformer for use in 70V/100V audio systems, with taps of 25W, 50W, 100W, and 200W for 70V operation (50W, 100W, and 200W for 100V systems).The modified trapezoidal loudspeaker enclosure is constructed of 11-layer cross-laminated exterior grade 15mm thick Baltic birch plywood and shall be fitted with (7) M10 and (4) M8 rigging inserts and finished with low gloss, uniformly textured coating. The front of the enclosure is fitted with a wraparound powder-coated 1.5mm perforated steel grille backed with acoustically transparent woven fabric. The system has an operating range of 52 Hz to 19.5 kHz (-10dB SPL). The system produces a sound pressure level of 94 dB (averaged SPL between -10 dB points) on axis at one meter with a power input of 1 Watt, and is capable of producing a continuous output of 118 dB SPL (with peak output of 124 dB SPL) on axis at one meter. The nominal dispersion shall be 120° H x 60° V. The loudspeaker is 18.75 in. (476 mm) H x 10.40 in. (264 mm) W (front) x 7.69 in. (195 mm) W (rear) x 10.63 in. (270 mm) D.

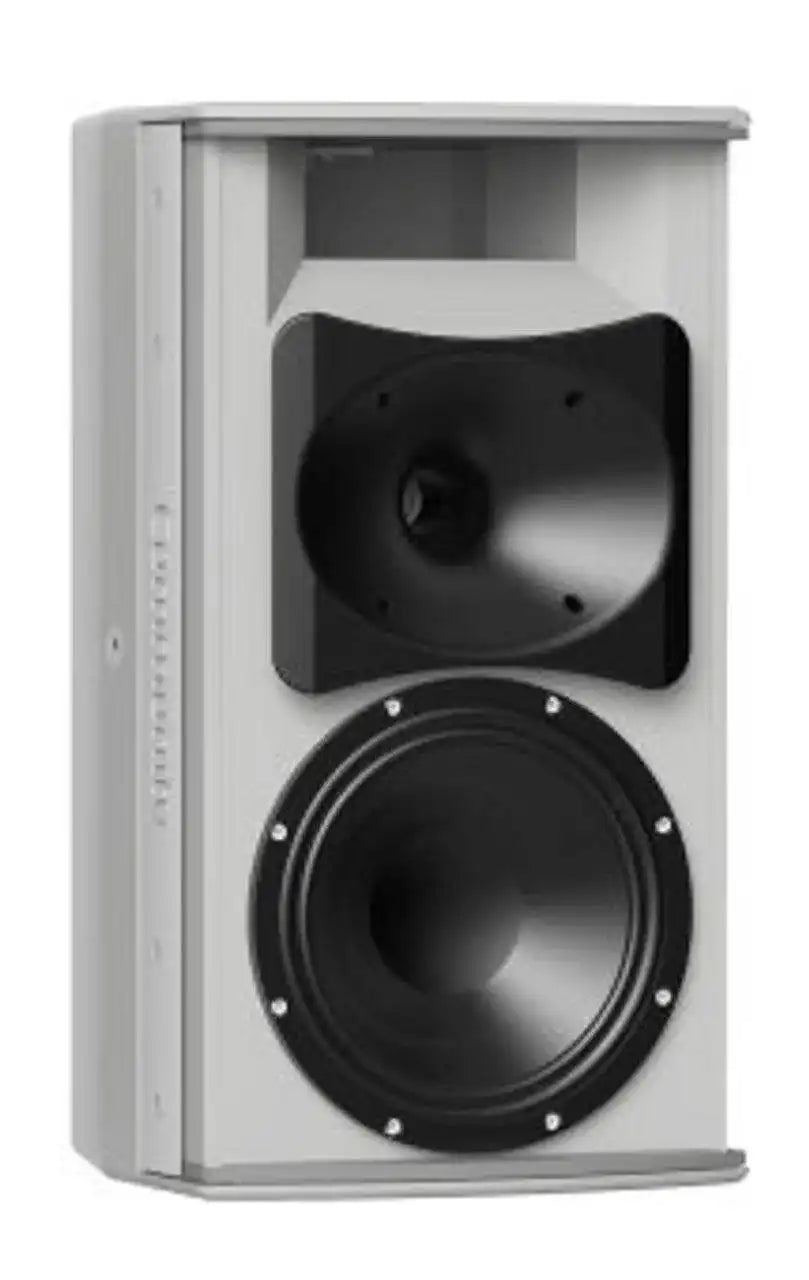

 The IC6-1082/96 is designed for maximum performance in a minimal size enclosure. The large, rotatable horn coupled to a 1.75" (44mm) diaphragm HF driver provides consistent directivity and smooth response through the critical voice band, then seamlessly integrates with the high output 8" LF through the crossover region. The precisely engineered low velocity, flared port ensures low distortion, extended LF performance at any output level. Additionally, 8 ohm or 70V/100V models expand application flexibility both indoors and out. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets. I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint Flyware modular array brackets.

 

Spec Sheet

  • Excellent LF extension and output in a very smallenclosure
  • Exceptional fidelity with elegant I SERIES aesthetics
  • Large, field-rotatable HF horn for smooth, consistentcoverage
  • Low impedance (8 ohm) or 70V/100V models available
  • Low profile U-Bracket or Vertical Yoke available, compatible with most third party wall and ceiling brackets

Community IC6-1082T26 Specifications:

  • Technical Specifications:
    • Operating Mode: Low Impedance or 70V/100V models
    • Operating Range: 53 Hz to 20 kHz
    • Nominal Beamwidth (H x V): 120° H x 60° V, rotatable waveguide
    • Transducers:
      • LF 1 x 8" (203mm) ferrite driver, 1.8" (45mm) voice coil
      • HF 1 x 1" (25mm) exit, 1.75" (44mm) voice coil, advanced polymer diaphragm, ferrite compression driver
    • Recommended Amplifiers: 250W - 500W @ 8 ohms, (45V - 63V)
  • Physical:
    • Input Connection: (1) Screw terminal block (5-position)
    • Mounting Points: (7) M10 threaded inserts; (4) M8 threaded inserts (rear)
    • Weight: 29 lbs (13.2 kg) loudspeaker
    • Dimensions: 18.75" x 10.40" x 10.63" (476 x 264 x 270 mm)
