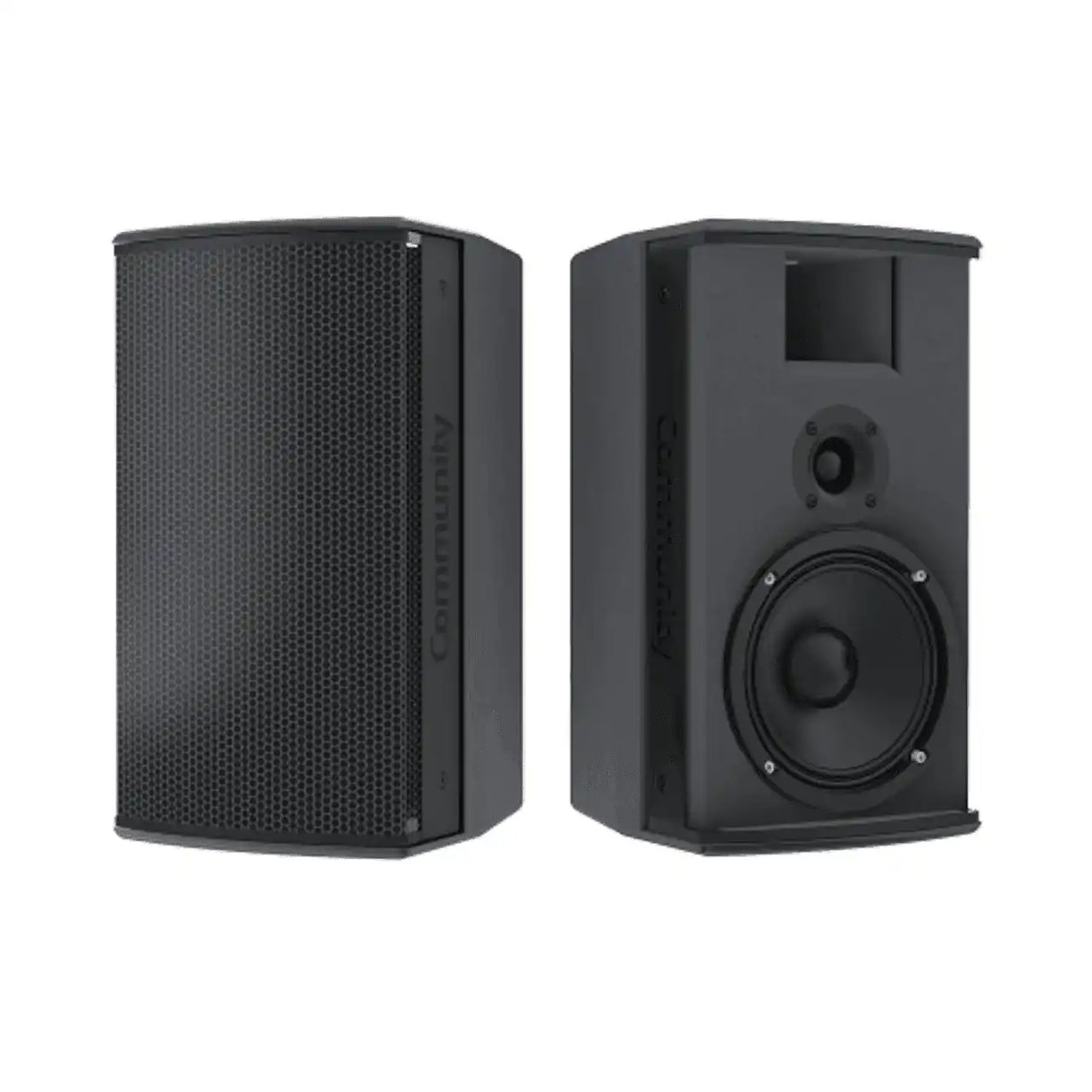

Biamp Community IC6-1062WR00 High Output 6.5-Inch 2-Way 100 X 100 Weather Speaker (Resistant Grey)
Biamp Community IC6-1062WR00 High Output 6.5-Inch 2-Way 100 X 100 Weather Speaker (Resistant Grey) is backordered and will ship as soon as it is back in stock.
Biamp Community IC6-1062WR00 High Output 6.5-Inch 2-Way 100 X 100 W...
Product Overview
The Biamp Community IC6-1062WR00 is a weather-resistant 6.5-inch two-way installation loudspeaker with very wide 100 by 100 degree coverage for outdoor low-impedance audio. It delivers broad, even coverage from a compact, durable enclosure. Relevant searches include outdoor installation loudspeaker, wide-coverage weather-resistant speaker, and 6.5-inch commercial outdoor speaker.
Product Description
The IC6-1062WR00 combines a 6.5-inch ferrite LF driver with a 1-inch direct-radiating damped fabric dome diaphragm on a ferrofluid and heatsink-cooled dual-neodymium motor, crossing over at 2500 Hz. Its PolyGlas composite enclosure embeds dual fiberglass layers under heavy exterior-grade paint and a UV-resistant top coat, with a sealed input panel and internal 12 ft 14-gauge SJOW cable. The 8 ohm system has a 35V input capability, and nine M6 rigging points allow flexible mounting.
Key Features
- Very wide 100x100 coverage — A direct-radiating dome HF section delivers exceptionally wide 100 by 100 degree dispersion.
- Weather-resistant construction — PolyGlas composite enclosure with dual fiberglass layers and UV top coat is rated IP55W per IEC 60529 and MIL-STD-810G.
- Compact extended LF — A high-sensitivity 6.5-inch woofer and bass-reflex port deliver low frequency beyond the enclosure size.
- Flexible mounting — Nine M6 rigging points with an optional U-bracket are compatible with most third-party brackets.
- Pre-wired connection — A sealed gland nut and internal 12 ft 14-gauge SJOW cable simplify outdoor installation.
Typical Applications
- House of worship
- Commercial meeting space
- Multi-purpose room
- Auditorium
Technical Specifications
| Configuration | Two-way, full-range 6.5-inch |
| Operating Mode | Low impedance (8 ohm) |
| Operating Environment | Weather-resistant outdoor |
| Operating Range | 56 Hz to 18.5 kHz |
| Nominal Beamwidth (H x V) | 100 by 100 degrees |
| LF Transducer | 1 x 6.5-inch (165mm) ferrite, 1.5-inch voice coil |
| HF Transducer | 1 x 1-inch direct-radiating damped fabric dome, dual-neodymium motor |
| Recommended Amplifiers | 150W - 300W @ 8 ohms (35V - 49V) |
| Environmental Rating | IP55W per IEC 60529, MIL-STD-810G |
| Mounting Points | 9 x M6 threaded rigging points |
| Weight | 12.6 lbs (5.7 kg) |
| Dimensions (H x W x D) | 14.29 x 8.00 x 8.94 in (363 x 203 x 227 mm) |
| Warranty | Biamp Systems 5-year warranty |
Frequently Asked Questions
How wide is the coverage?
The IC6-1062WR00 provides a very wide 100 by 100 degree pattern for broad, even fill.
Is it suitable for outdoor use?
Yes. The PolyGlas enclosure is rated IP55W per IEC 60529 and tested to MIL-STD-810G.
What amplifier power is recommended?
150W to 300W at 8 ohms (35V to 49V).
