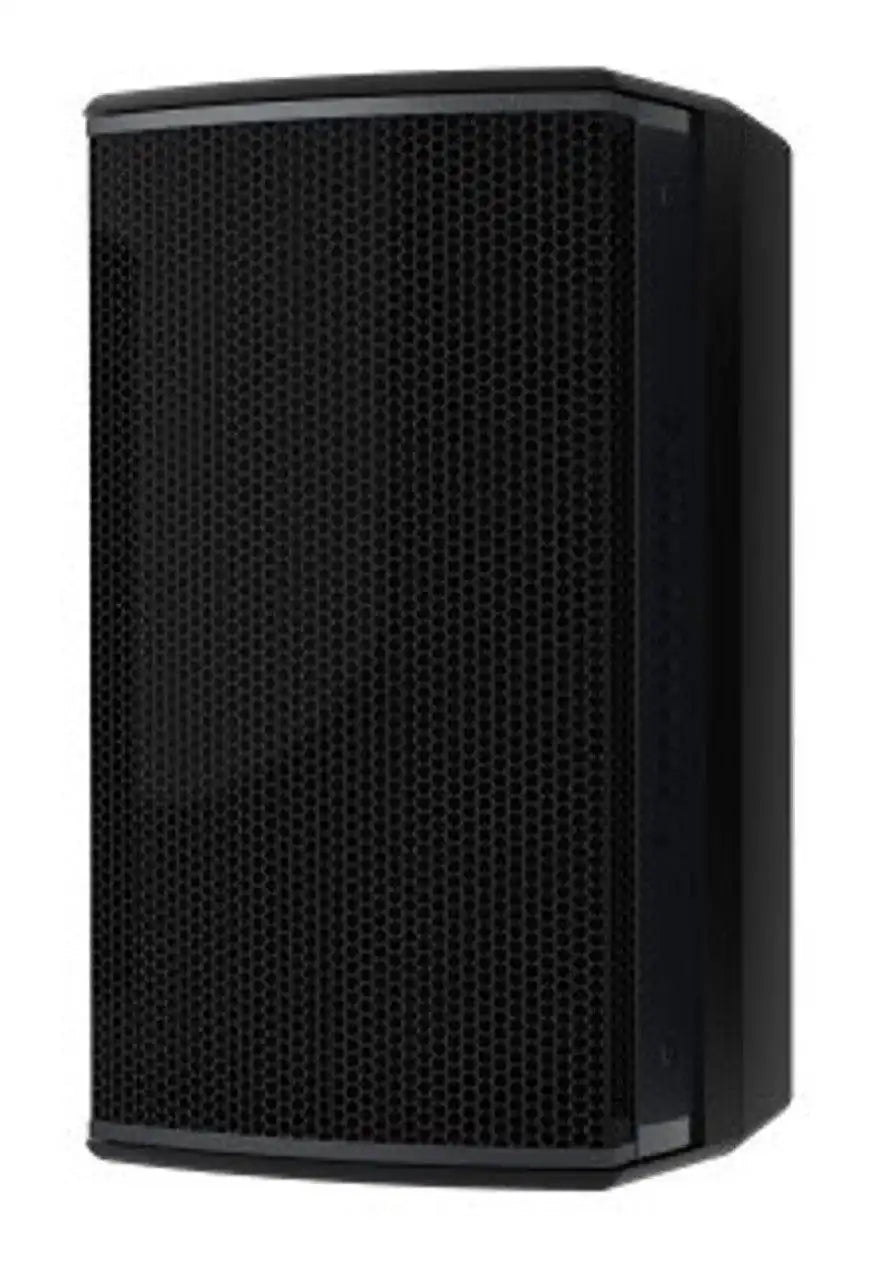

Biamp Community IC6-1062T00 High Output 6.5-Inch 2-Way 100 X 100 70V/100V Indoor Speaker

Biamp SKU: 911.1005.900
No reviews
Model: Black
Price:
$1,432.00

Description

Community IC6-1062T00 6.5-inch 2-Way 70V/100V Speaker - Indoor

The Community IC6-1062T00 loudspeaker system is a two-way, full-range design incorporating one 6.5 in. (165mm) ferrite LF driver with an inherently weather resistant cone and one 1 in. (25mm) exit direct radiating damped fabric dome diaphragm, ferrofluid and heatsink-cooled dual-neodymium motor. The drivers are connected to an internal frequency dividing network with an acoustical crossover frequency of 2500 Hz. There is one five-terminal barrier strip on a recessed powder-coated 2mm thick steel input panel. The system is equipped with a high performance 100W autoformer for use in 70V/100V audio systems, with taps of 12.5W, 25W, 50W, and 100W for 70V operation (25W, 50W, and 100W for 100V systems). The modified trapezoidal loudspeaker enclosure is constructed of 11-layer cross-laminated exterior grade 15mm thick Baltic birch plywood and is fitted with (9) M6 rigging inserts and finished with low gloss, uniformly textured coating. The front of the enclosure is fitted with a wraparound powder-coated 1.5mm perforated steel grille backed with acoustically transparent woven fabric. The system produces a sound pressure level of 92 dB (averaged SPL between -10 dB points) on axis at one meter with a power input of 1 Watt, and is capable of producing a continuous output of 114 dB SPL (with peak output of 120 dB SPL) on axis at one meter.

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint™ Flyware modular array brackets.

 

  • Excellent LF extension and output in a very small enclosure
  • Exceptional fidelity with elegant I SERIES aesthetics
  • Very wide coverage pattern
  • Operating Range: 56 Hz to 18.5 kHz (-10 dB SPL)
  • Nominal Dispersion: 100° H x 100° V
  • Dimensions (H x W x W (front) x W (rear)): 14.29" x 8.00" x 5.64" x 8.94" (363 x 203 x 143 x 227mm)
  • Weight: 20 lbs. (9.1 kg)
