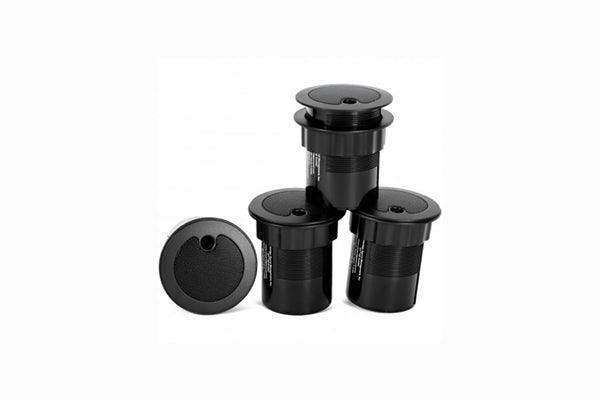

Cambridge Sound Qt® E-P-B-16-4 Active emitters + 4 patch cables for sound masking, paging & music (Black) 4 Pack - 911.0896.900

Product Overview

The Cambridge Sound Qt E-P-B-16-4 (part number 911.0896.900) is a four-pack of Qt Active Emitters in black, supplied with four 16-foot patch cables, for QtPro direct-field sound masking systems. Each emitter performs sound masking and plays paging and music signals with clarity from a single ceiling-mounted source. Advanced direct-field electronics deliver a wider frequency range and higher SPL than previous emitter generations. The units are UL 2043 plenum rated and virtually invisible in finished or open-structure ceilings.

Product Description

Emitters are the ceiling loudspeakers of a sound masking system, and the Qt Active Emitter uses Cambridge Sound's direct-field Quiet Technology to project masking straight into the workspace rather than bouncing it off the ceiling deck from large in-plenum loudspeakers. The direct path yields consistent masking levels between workstations and clearer paging and music, since the driver faces the listener instead of playing through ceiling material. The ported enclosure extends masking response down to the 125 Hz octave band and paging/music response to 115 Hz, with a maximum paging/music output of 74 dBA at 1 meter and 17 dB more output than previous direct-field emitters. Four auto-sequencing uncorrelated audio channels reduce phasing and comb-filtering between adjacent emitters. Each unit connects over RJ-45 category UTP cabling, draws no more than 2 watts at 36 VDC, and ships with an acoustic ceiling tile mounting ring and slip-ring mount. Rear DIP switches trim level in 1.5 dB steps to -4.5 dB. The pack works with Qt 300 and Qt 600 control modules and the DynasoundPro network system (specify DS1320). Build out the system with components from the Cambridge Sound collection.

Key Features

• Masking, Paging, and Music in One Emitter — a single ceiling speaker covers all three functions for office environments.
• Direct-Field Quiet Technology — distributes masking evenly into the workspace without plenum reflections.
• Active Electronics — integral amplifier provides 17 dB more output than previous direct-field emitters.
• Extended Low-Frequency Response — ported enclosure reaches the 125 Hz octave band for masking and 115 Hz for paging and music.
• Four Uncorrelated Channels — auto-sequencing channel assignment reduces phasing and comb-filtering.
• UL 2043 Plenum Rated — UL-listed for installation in air handling spaces.
• Adjustable Attenuation — rear DIP switches reduce volume in 1.5 dB increments to -4.5 dB.
• 16 ft Patch Cables Included — four patch cables ship in the box; connections are RJ-45 over 8-conductor category UTP.
• Tile Mounting Ring Included — slip-ring mount installs in acoustical ceiling tile.
• Qt and DynasoundPro Compatible — works with Qt 300 and Qt 600 control modules; DynasoundPro network systems specify DS1320.

Typical Applications

• Open offices — uniform direct-field masking with integrated paging across open floor plates.
• Call centers — reduces speech distraction between adjacent agent positions.
• Healthcare facilities — supports speech privacy in exam rooms, waiting areas, and corridors.
• Law and financial offices — protects confidential client conversations.
• Conference rooms — masks speech transfer to and from adjacent spaces.

Technical Specifications

Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.

FAQ

What is included in the E-P-B-16-4 pack?
Four black Qt Active Emitters, four 16-foot patch cables, and acoustic ceiling tile mounting rings with slip-ring mounts.

What does the active emitter add over a standard emitter?
Built-in active electronics support simultaneous paging and background music alongside masking, with 17 dB more output and extended low-frequency response.

Which control modules drive these emitters?
The Qt 300 and Qt 600 control modules; DynasoundPro network systems should specify the DS1320 version.

Can they be installed in plenum spaces?
Yes. The emitters are UL-listed and comply with UL 2043 for air handling spaces.
