Biamp 930-10008-00014 Biamp MRB-L-X400-T-ENT206

Product Overview

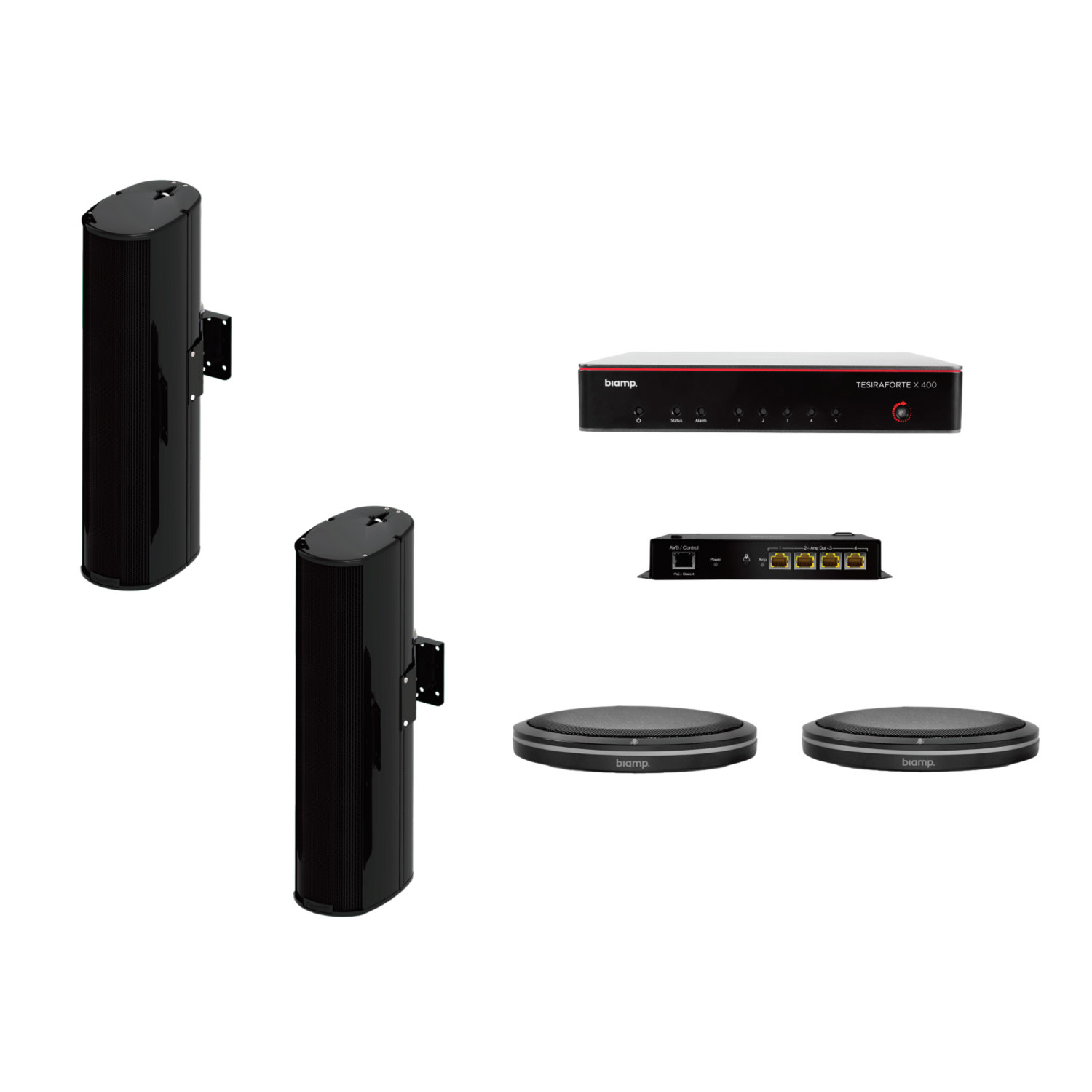

The Biamp MRB-L-X400-T-ENT206 is a certified large conference room audio bundle built around the TesiraFORTÉ X 400 meeting room DSP, Parlé Beamtracking tabletop microphones, and Desono ENT206 loudspeakers. It provisions large meeting rooms with tabletop microphone pickup, in-room loudspeakers, and digital signal processing as one factory-matched package. This large conference room DSP bundle suits AV integrators specifying a certified UC room system without sourcing each component separately, and the platform supports Microsoft Teams Rooms, Zoom Rooms, Google Meet, Cisco Webex, and GoTo Meeting.

Product Description

The Biamp MRB-L-X400-T-ENT206 centers on the TesiraFORTÉ X 400 meeting room DSP, which combines audio processing and network connectivity in a single device and provides four channels of acoustic echo cancellation assignable to any input for clear far-end audio. Parlé Beamtracking tabletop microphones sit on the conference table and track active talkers for close, consistent voice pickup. Desono ENT206 wall-mount loudspeakers provide directed coverage for speech in the room and mount to the wall where ceiling installation is not practical. At commissioning, Biamp Launch discovers the connected Biamp devices, measures room acoustics, and automatically tunes equalization, echo cancellation, noise reduction, and levels, so the room reaches a consistent performance level with zero programming. The DSP connects to the room compute over a single USB interface with HID synchronization, while microphones and loudspeakers connect over the network using its five 1 Gigabit Ethernet ports, four of which supply PoE+ power. For integrators standardizing multiple rooms, browse related configurations in the Biamp collection at Creation Networks. A companion configuration is the MRB-L-X400-C-ENT206.

Key Features

• Certified large-room bundle — The system is a factory-matched, certified conference room audio bundle so the space is deployed as a supported single-vendor configuration.
• TesiraFORTÉ X 400 DSP — The meeting room DSP integrates audio processing and network connectivity in one device with four channels of acoustic echo cancellation assignable to any input.
• Parlé Beamtracking tabletop microphones — Parlé Beamtracking tabletop microphones sit on the conference table and track active talkers for close, consistent voice pickup.
• Desono ENT206 loudspeakers — Wall-mount loudspeakers provide directed speech coverage where ceiling installation is not practical.
• Network audio with PoE+ — Five 1 Gigabit Ethernet ports, four with PoE+ power, carry AVB, Dante, and AES67 audio to microphones and loudspeakers over standard RJ-45 cabling.
• USB conferencing peripheral — A single USB connection with HID synchronization links the DSP to the UC room compute as a conferencing audio peripheral.
• Automated tuning with Biamp Launch — Biamp Launch measures room acoustics at commissioning and automatically optimizes EQ, echo cancellation, noise reduction, and levels with no manual programming.
• Five-year warranty — The TesiraFORTÉ X 400 DSP is CE marked, UL listed, RoHS compliant, and covered by Biamp's five-year warranty.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room

Technical Specifications

Specifications sourced from Biamp product documentation and data sheets (TesiraFORTÉ X 400 meeting room DSP; Desono loudspeaker data sheets). Bundle contents are decoded from the model configuration; confirm exact included components and quantities against current Biamp documentation.

Frequently Asked Questions

Which collaboration platform does this bundle support?
The platform supports Microsoft Teams Rooms, Zoom Rooms, Google Meet, Cisco Webex, and GoTo Meeting, among others.

What room size is it intended for?
It is a large-room bundle; the MRB-L configurations are specified for large meeting rooms. Confirm exact room dimensions against current Biamp room-design documentation.

How does the room capture voice?
Parlé Beamtracking tabletop microphones sit on the conference table and track active talkers for close, consistent voice pickup. The TesiraFORTÉ X 400 DSP then applies echo cancellation and mixing across up to four AEC channels.

How does it integrate with the AV system?
The DSP connects to the UC room compute over a single USB interface with HID synchronization, while microphones and loudspeakers connect over the network using the DSP's Gigabit Ethernet ports, four of which supply PoE+ power.

Does the DSP support Dante and AVB?
Yes. The TesiraFORTÉ X 400 supports simultaneous AVB, Dante, and AES67 networked audio, plus a SIP VoIP interface over Gigabit Ethernet.

How is the system commissioned?
Biamp Launch discovers the connected devices, measures room acoustics, and automatically tunes EQ, echo cancellation, noise reduction, and levels with no custom programming, then issues a performance report.

What warranty and support apply?
The TesiraFORTÉ X 400 DSP is covered by Biamp's five-year warranty; contact Creation Networks for current warranty terms on all bundle components, lead times, and integration support.
