Biamp 930-10007-00004 Biamp MRB-M-X400-T-DXS5

Product Overview

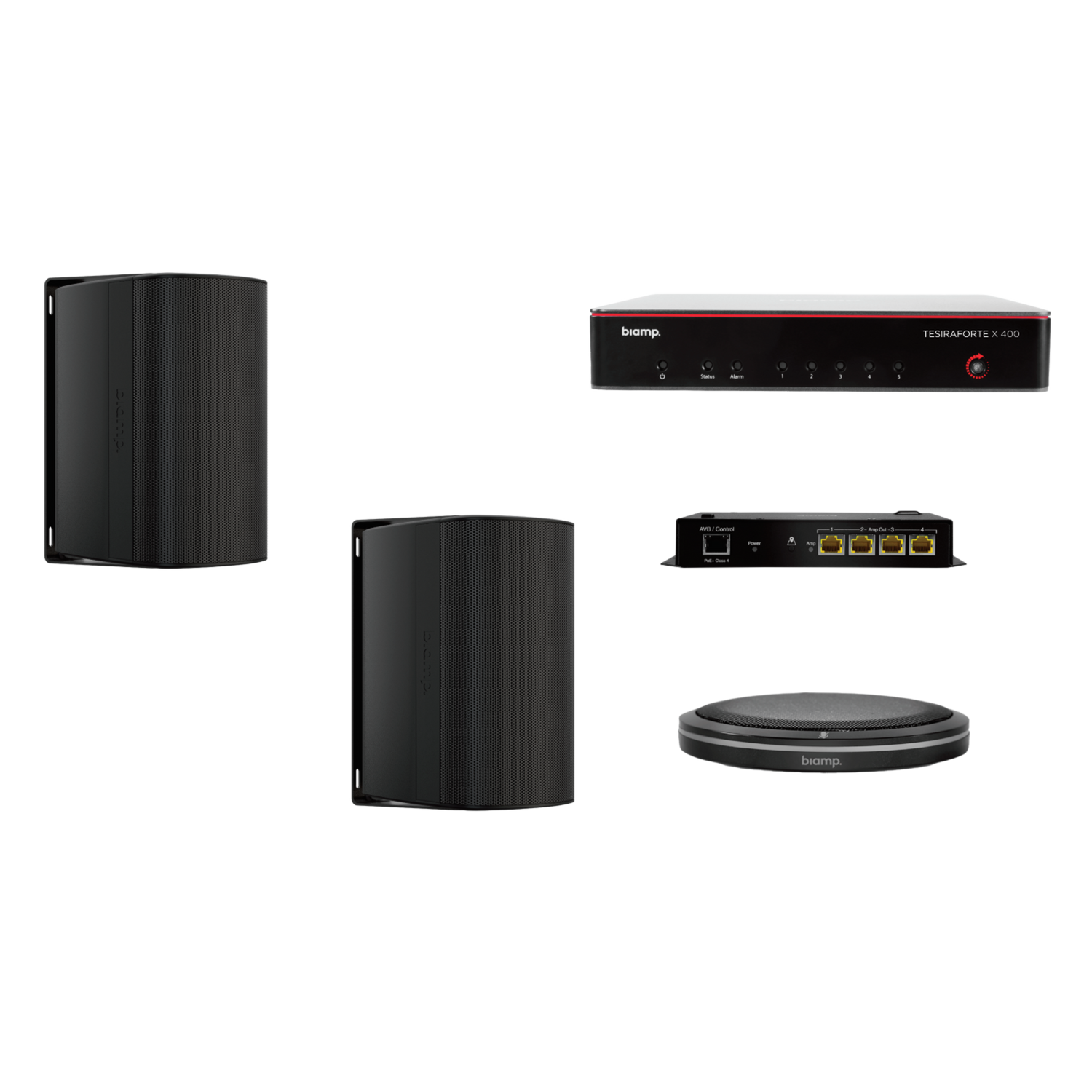

The Biamp MRB-M-X400-T-DXS5 is a certified medium conference room audio bundle built around the TesiraFORTÉ X 400 meeting room DSP, a Parlé TTM-X table Beamtracking microphone, an AMP-450BP PoE+ amplifier, and two Desono DX-S5 surface-mount loudspeakers. It includes everything required to provision a medium meeting room of up to 388 sq ft (36 sq m) with clear conferencing audio. This UC-agnostic medium meeting room bundle connects to a room codec over USB and supports Microsoft Teams Rooms, Zoom Rooms, Google Meet, and Cisco Webex.

Product Description

This bundle is aimed at AV integrators equipping medium conference rooms and commercial meeting spaces that need reliable audio for hybrid meetings. The TesiraFORTÉ X 400 consolidates audio DSP and networking into a single device and powers peripherals over its PoE+ Gigabit Ethernet ports. The Parlé TTM-X table microphone uses Beamtracking to follow active talkers while keeping table clutter to a minimum and providing LED mute indication. Two Desono DX-S5 surface-mount loudspeakers, driven by the AMP-450BP PoE+ amplifier, are tuned for voice reproduction. Biamp Launch automates device discovery and tuning without custom programming and produces a performance report at commissioning. Mute buttons and LEDs synchronize with the UC software. For a matching medium-room configuration with MASK6C loudspeakers, see the MRB-M-X400-T-MASK6C, and the Biamp collection lists compatible peripherals. AVB, Dante, and AES67 support lets the bundle scale into larger networked Tesira systems.

Key Features

• TesiraFORTÉ X 400 DSP — One meeting room DSP provides audio processing, networking, and PoE+ power for the bundle.
• Parlé TTM-X table microphone — A Beamtracking table microphone tracks talkers with clear pickup and UC-synced mute indication.
• AMP-450BP PoE+ amplifier — A PoE+ powered amplifier drives the loudspeakers without a separate power run.
• Two Desono DX-S5 loudspeakers — Surface-mount loudspeakers are tuned for voice reproduction in medium conference rooms.
• Biamp Launch automated tuning — Device discovery and room tuning complete without custom programming and produce a full performance report.
• Custom AEC and noise reduction — Acoustic Echo Cancellation and AI noise reduction improve the far-end experience on any UC platform.
• UC platform flexibility — A single USB connection supports Microsoft Teams Rooms, Zoom Rooms, Google Meet, and Cisco Webex.

Typical Applications

• Conference room
• Commercial meeting space
• Multi-purpose room
• Training room
• Government space

Technical Specifications

Specifications compiled from the Biamp MRB-M-X400-T series and TesiraFORTÉ X 400 datasheets. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which UC platforms are supported?
Connecting over USB to a room codec, the bundle supports Microsoft Teams Rooms, Zoom Rooms, Google Meet, Cisco Webex, and GoTo Meeting.

What room size does the MRB-M-X400-T cover?
It is a medium-room bundle for spaces up to 388 sq ft (36 sq m).

What is included in the bundle?
The kit includes a TesiraFORTÉ X 400 DSP, one Parlé TTM-X table microphone, one AMP-450BP amplifier, two Desono DX-S5 loudspeakers, and plenum-rated cabling.

How is the system installed and tuned?
Biamp Launch performs automated device discovery and room tuning without custom programming and provides a post-commissioning performance report.

Can it be part of a larger AV system?
Yes. The TesiraFORTÉ X 400 supports AVB, Dante, and AES67 networked audio and SIP VoIP for larger Tesira integrations.

Is custom programming required?
No. Standard deployment needs no custom programming; the DSP can still be customized in Tesira software.

What warranty applies?
The TesiraFORTÉ X 400 DSP carries Biamp's five-year warranty; confirm coverage for other components with Biamp.
