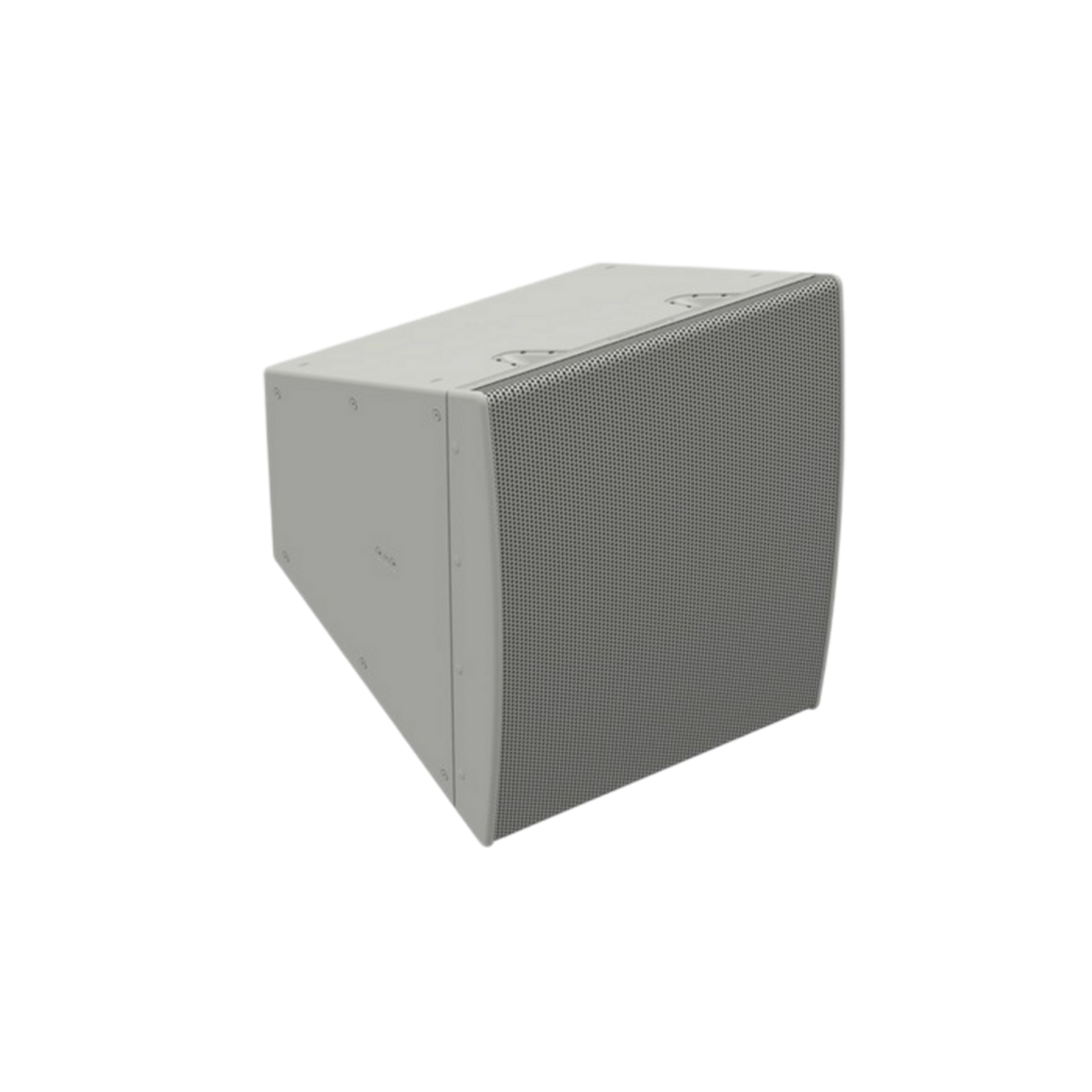

Biamp 930-00006 Community LVH-906WRC and LVH-909WRC (Custom Color)

Product Overview

The 930-00006 Community LVH-906WRC and LVH-909WRC (Custom Color) is a custom-color, made-to-order configuration of Biamp's Community L Series Beamforming Venue Horn, covering both the 60° (LVH-906) and 90° (LVH-909) horizontal-dispersion models. This large-format beamforming venue loudspeaker delivers high-output speech and music reinforcement with FIR DSP beamforming and user-selectable 20°, 40°, and 60° vertical coverage. Ordered in a custom paint finish and rated for both indoor and outdoor direct-exposure installations, it lets integrators match the loudspeaker to architectural requirements in houses of worship, auditoriums, and large commercial venues.

Product Description

This custom-color line item covers the weather-resistant, outdoor-rated Community LVH-906 and LVH-909 Active Standard loudspeakers finished in a customer-specified color (CTO). Both models use the same triaxial array of four 12-inch low-frequency drivers, three Community M200 mid-range compression drivers, and four 1.5-inch high-frequency compression drivers integrated into a single waveguide for pattern control below 400 Hz. The LVH-906 provides 60° nominal horizontal coverage and the LVH-909 provides 90°, and both offer selectable 20°, 40°, and 60° vertical presets set through Biamp's Community Amplified Loudspeaker Controllers (ALCs). Weather-resistant construction is IP56-rated per IEC 60529 with the input panel and seal cup covers fitted, suiting stadiums and outdoor venues. The loudspeakers operate in multi-amplifier mode and require external DSP, with Biamp recommending LF: ALC-1604D (2 channels, bridged); MF/HF: ALC-404D (4 channels). Because finish is made to order, confirm color, model, and lead time at the quoting stage. Related configurations include the grey LVH-906WRG and the grey LVH-909WRG, and the full Biamp collection lists compatible amplification and control hardware.

Key Features

• Custom-color finish — The LVH-906WRC/AS and LVH-909WRC/AS models are painted to a customer-specified color so the loudspeaker matches the installation environment.
• Two coverage patterns — The line item covers both the 60° LVH-906 and 90° LVH-909 horizontal-dispersion models within one custom-color order.
• Beamforming venue horn design — External FIR DSP steers horizontal and vertical coverage across the triaxial array for consistent audience coverage.
• Selectable vertical dispersion — User-selectable 20°, 40°, and 60° vertical presets tune coverage without physically re-aiming the cabinet.
• High-output triaxial array — Four 12-inch LF, three M200 MF, and four 1.5-inch HF drivers deliver high continuous and peak SPL for large venues.
• Multi-amplifier operation — Biamp recommends LF: ALC-1604D (2 channels, bridged); MF/HF: ALC-404D (4 channels) with FIR beamforming presets in the Community ALCs.
• Flexible rigging — 24 x M10 rigging inserts with optional array frames, pull-back bars, and splay brackets support flown and stacked arrays.
• Weather-resistant construction — The IP56-rated enclosure and marine-grade aluminum grille support outdoor direct-exposure use.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Specifications sourced from the Biamp Community LVH-906/AS and LVH-909/AS data sheets. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

What does this custom-color line item include?
It covers the weather-resistant, outdoor-rated Community LVH-906 (60°) and LVH-909 (90°) Active Standard loudspeakers finished in a customer-specified color, ordered made-to-order.

Does this loudspeaker need external amplification and DSP?
Yes. Both models operate in multi-amplifier mode and require external DSP with Biamp FIR presets; Biamp recommends LF: ALC-1604D (2 channels, bridged); MF/HF: ALC-404D (4 channels).

What is the difference between the LVH-906 and LVH-909?
The LVH-906 provides 60° nominal horizontal coverage and the LVH-909 provides 90°. Both share the same drivers, enclosure, and selectable vertical presets.

How does it integrate into a larger AV system?
The loudspeakers wire to Community Amplified Loudspeaker Controllers via terminal blocks, and those controllers integrate into a wider Biamp signal chain for zoning and monitoring.

How long does a custom-color order take?
Custom-color (CTO) finishes are built to order, so lead times vary. Confirm color code, model, coverage, and delivery schedule with Creation Networks before ordering.

How is the loudspeaker mounted or flown?
It provides 24 x M10 rigging inserts plus optional array frames, pull-back bars, and splay brackets. Biamp recommends a licensed structural engineer approve any rigging design.

What warranty and support apply?
The loudspeakers carry Biamp's standard commercial loudspeaker warranty. Contact Creation Networks for warranty terms, lead times, and integration support.
