Biamp 930-00004-00014 IC6-2082T96W

Product Overview

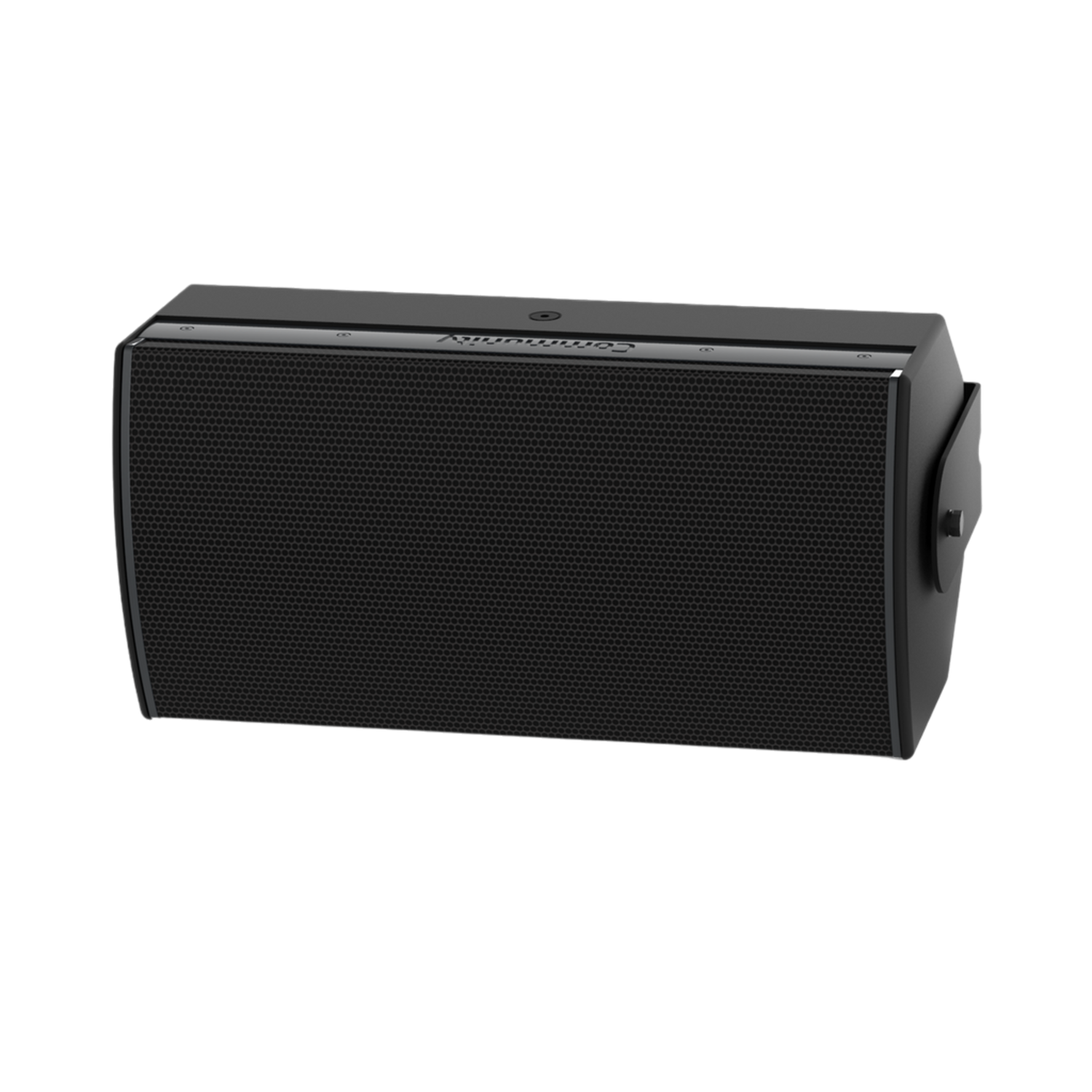

The Biamp Community IC6-2082T96 is a high-output dual 8-inch two-way installation loudspeaker with 70V/100V transformer operation, delivering articulate speech and full-range music for demanding commercial audio systems. Its 90-degree by 60-degree rotatable waveguide provides wide, consistent coverage for main and distributed loudspeaker applications in venues such as auditoriums, houses of worship, and multi-purpose rooms. This white model of the I SERIES Compact 600 loudspeaker is engineered for high output without sacrificing fidelity or coverage consistency. Selectable 70V and 100V autoformer taps make it a flexible commercial-grade install speaker for both foreground and background audio.

Product Description

The IC6-2082T96 solves the coverage inconsistencies common to symmetrical dual 8-inch two-way loudspeakers by combining a low-distortion 1.7-inch neodymium HF compression driver on a large, field-rotatable horn with partially baffled 8-inch LF drivers crossed over at an unusually low frequency. The result is a symmetrical, wide coverage pattern that performs similarly to a coaxial loudspeaker across its operating range. This transformer model provides 70V and 100V autoformer taps, so integrators can set the power draw per unit on a constant-voltage distributed loudspeaker line, while a 16-ohm low-impedance option exists on companion models for point-source use. Long-excursion LF drivers and a low-velocity port extend low-frequency performance at any output level, supporting music playback as well as clear paging and voice. An external DSP with Community-provided settings is required to achieve the specified performance, integrating the loudspeaker into a processed commercial AV system. Multiple M10 and M8 threaded mounting points work with the color-matched IUB2082 U-Bracket and IVY2082 vertical yoke, as well as many third-party wall and ceiling mounts. The white finish uses low-gloss textured paint over Baltic Birch plywood to blend into light ceilings and walls. A black model is available as the IC6-2082T96 in black, and related loudspeakers and amplifiers are found in the Biamp collection at Creation Networks.

Key Features

• High-output two-way design — Dual 8-inch LF drivers and a 1.7-inch neodymium HF compression driver deliver high output with full-range fidelity.
• Field-rotatable waveguide — A 90-degree by 60-degree rotatable horn provides wide, consistent coverage in landscape or portrait orientation.
• 70V/100V operation — Autoformer taps support 70V and 100V constant-voltage distributed loudspeaker lines for scalable commercial systems.
• Consistent coverage pattern — A low crossover point and partial baffling create coaxial-like, symmetrical coverage through the operating range.
• Extended low frequency — Long-excursion LF drivers and a low-velocity port sustain low-frequency output at any level.
• Flexible mounting — Nine M10 and four M8 threaded inserts accept Community and many third-party brackets.
• Durable finish — A low-gloss, uniformly textured white painted enclosure blends into light interiors.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Specifications sourced from the Biamp Community IC6-2082/96 data sheet (T96 transformer model). Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Is this a 70V/100V loudspeaker?
Yes. The T96 model includes an autoformer with 70V and 100V taps for constant-voltage distributed loudspeaker systems.

What coverage does it provide?
It offers a nominal 90-degree by 60-degree pattern from a field-rotatable waveguide, so the horn can be oriented for landscape or portrait cabinet installation.

Does it require signal processing?
An external DSP with Community-provided settings is required to achieve the specified performance; the loudspeaker integrates into a processed commercial AV system.

How is it mounted?
Nine M10 and four M8 threaded inserts accept the color-matched IUB2082 U-Bracket, IVY2082 vertical yoke, and many third-party wall and ceiling brackets.

Can I match it across a room?
Yes. A black finish is available, and companion I SERIES point-source and subwoofer models allow consistent voicing across larger systems.

What amplifier is recommended?
Community recommends 300 W to 600 W at 16 ohms for the low-impedance configuration; for 70V/100V use, size the amplifier to the total tap load and confirm against current Biamp documentation.
