Biamp 930-00001-00003 Community LVH-906WRB

Product Overview

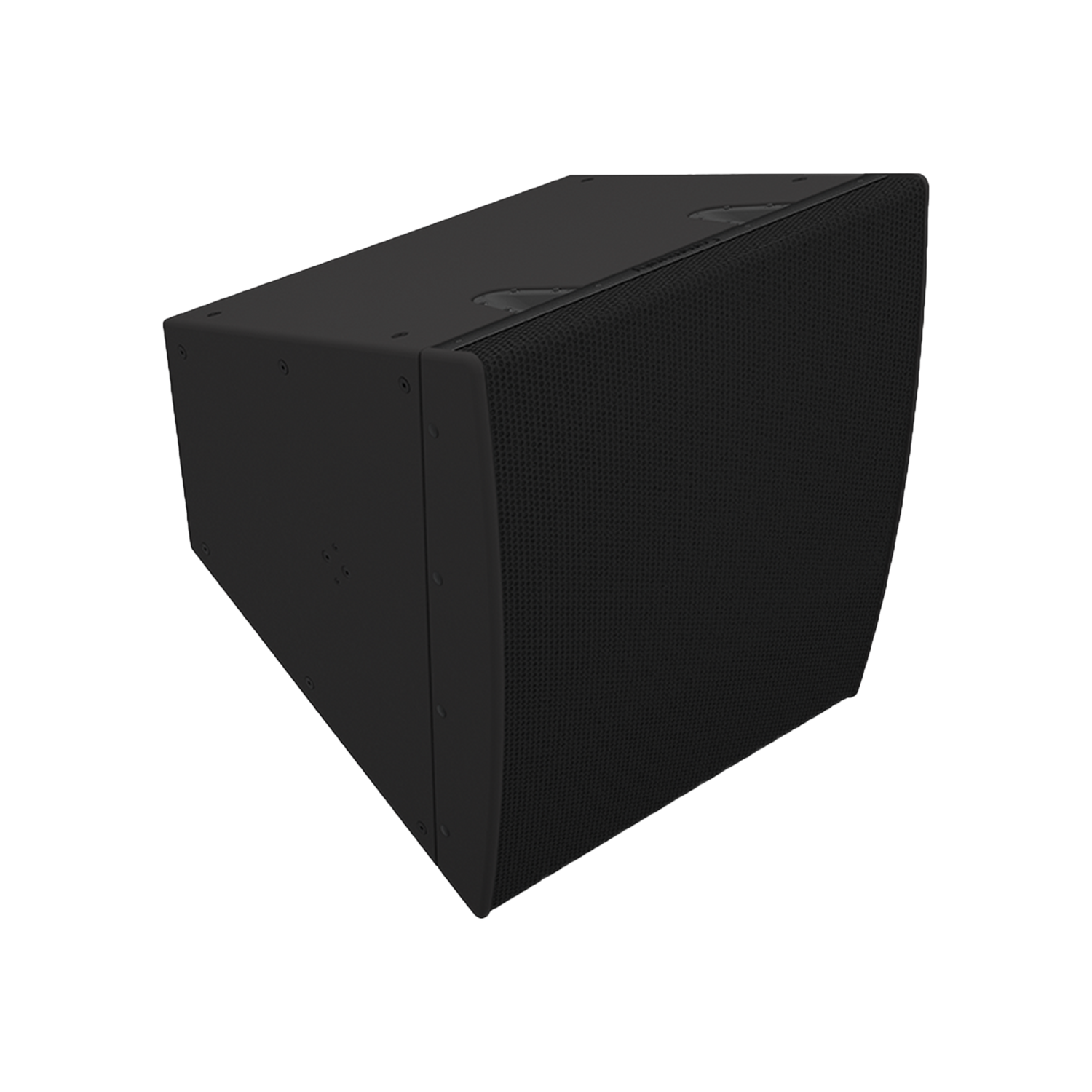

The Biamp Community LVH-906WRB is a large-format, horn-loaded beamforming venue loudspeaker engineered for high-output speech and music reinforcement in large rooms and venues. This LVH-906 model delivers 60° nominal horizontal dispersion with FIR DSP beamforming that provides user-selectable 20°, 40°, and 60° vertical coverage presets. Finished in black and rated for both indoor and outdoor direct-exposure installations, it serves integrators specifying a Biamp Community LVH-906 arrayable venue loudspeaker for houses of worship, auditoriums, and other large commercial spaces.

Product Description

The Biamp Community LVH-906WRB is part of Biamp's Community L Series Beamforming Venue Horn platform, a triaxial array that integrates its low-, mid-, and high-frequency drivers into a single waveguide filling the enclosure face for pattern control down to below 400 Hz. Operating in multi-amplifier mode with external DSP, the loudspeaker relies on Biamp's Community Amplified Loudspeaker Controllers (ALCs) to set FIR beamforming and per-driver processing. Each cabinet carries four 12-inch low-frequency drivers, three Community M200 mid-range compression drivers, and four 1.5-inch high-frequency compression drivers. The 60° horizontal pattern and selectable vertical presets let a single cabinet or a multi-box array direct sound to the audience and away from reflective surfaces. The LVH-906 carries EN54-24 and ISO 7240-24 certification for use in voice alarm and mass-notification systems. As a weather-resistant model, this cabinet is IP56-rated per IEC 60529 when the input panel and seal cup covers are fitted, making it suitable for stadiums, outdoor amphitheaters, and covered exterior installations. Twenty-four M10 rigging inserts and optional array frames, pull-back bars, and splay brackets support flown or ground-stacked deployments planned by a qualified structural engineer. Integrators can pair this loudspeaker with companion models in the range, including the grey LVH-906WRG, the white LVH-906WRW, and browse the full Biamp collection for matching amplification and control hardware.

Key Features

• Beamforming venue horn design — An external DSP drives FIR beamforming across the triaxial array so integrators can steer 60° horizontal coverage to the seating area.
• Selectable vertical dispersion — User-selectable 20°, 40°, and 60° vertical presets let a single cabinet match balconies, rakes, and flat floors without physical re-aiming.
• High-output triaxial array — Four 12-inch LF, three M200 MF, and four 1.5-inch HF drivers combine for a nominal maximum SPL of 136 dB continuous / 142 dB peak.
• Pattern control below 400 Hz — The colinear manifold maintains directivity to below 400 Hz, holding coverage consistent across the operating range.
• Multi-amplifier operation — The cabinet is driven by dedicated amplifier channels; Biamp recommends LF: ALC-1604D (2 channels, bridged); MF/HF: ALC-404D (4 channels).
• Flexible rigging — 24 x M10 rigging inserts with optional array frames, pull-back bars, and splay brackets support flown and stacked arrays.
• Weather-resistant construction — The IP56-rated enclosure and marine-grade aluminum grille let the loudspeaker operate in direct-exposure outdoor environments.
• Life-safety certification — EN54-24 and ISO 7240-24 certification qualifies the loudspeaker for voice-alarm and mass-notification use.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Specifications sourced from the Biamp Community LVH-906/AS data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

What size venue is the LVH-906 designed for?
It is a large-format point-source loudspeaker intended for large rooms and venues such as houses of worship, auditoriums, and arenas that need high output with controlled 60° horizontal coverage.

Does this loudspeaker need external amplification and DSP?
Yes. It operates in multi-amplifier mode and requires external DSP with Biamp's FIR beamforming presets; Biamp recommends LF: ALC-1604D (2 channels, bridged); MF/HF: ALC-404D (4 channels).

Can I change the vertical coverage after installation?
Yes. Vertical dispersion is set through user-selectable 20°, 40°, and 60° FIR presets in the Community ALC, so coverage can be tuned without moving the cabinet.

How does it integrate into a larger AV system?
The loudspeaker connects to Community Amplified Loudspeaker Controllers over standard terminal-block wiring, and those controllers integrate into a wider Biamp signal chain for zoning, routing, and monitoring.

How is the loudspeaker mounted or flown?
It provides 24 x M10 rigging inserts and supports optional array frames, pull-back bars, and splay brackets. Biamp recommends that a licensed structural engineer approve any rigging design.

Can I install the LVH-906 outdoors?
Yes. This weather-resistant model is IP56-rated per IEC 60529 when the input panel and seal cup covers are fitted, so it suits covered outdoor and direct-exposure sites.

What warranty and support apply?
The loudspeaker is covered by Biamp's standard commercial loudspeaker warranty. Contact Creation Networks for current warranty terms, lead times, and integration support.
