Biamp 920-01996-00001 Parlé CBC 2500 PM

Product Overview

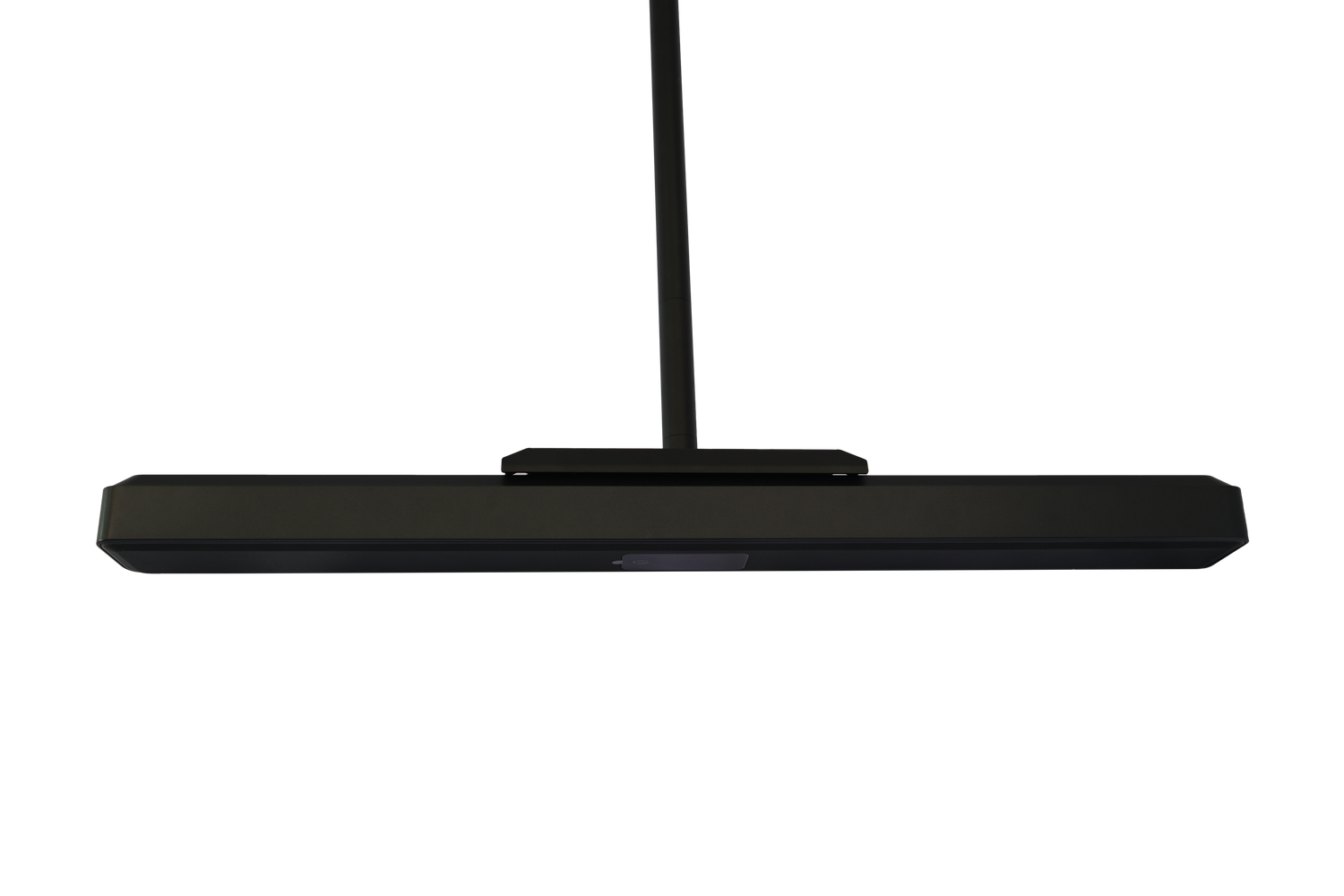

The Biamp Parle CBC 2500 PM is a ceiling pole-mounted, all-in-one conferencing audio bar for collaboration spaces where wall mounting is difficult. Its single-point pole-mount design suspends the bar cleanly from an open-plan ceiling, combining a 27-element beamtracking microphone array with two low-distortion speakers. Built for soft-codec conferencing in meeting rooms and boardrooms, it integrates acoustic echo cancellation and AI noise reduction for clear, hands-free voice pickup. The CBC 2500 PM is certified for Microsoft Teams and Zoom and connects over a single USB-C cable.

Product Description

The Parle CBC 2500 PM shares the conferencing bar electronics of the CBC 2500 family while offering a single-point pole mount, giving integrators an elegant installation option that minimizes visual clutter in rooms with open ceilings. Its 27-element digital microphone array uses Biamp Beamtracking technology to actively track and intelligently mix conversation from around the room, working in conjunction with acoustic echo cancellation to keep the far-end signal clean. An AI noise reduction algorithm reduces distracting background sound, while two smart speakers use distortion compensation and dynamic bass enhancement to deliver room-filling, intelligible speech. The pole-mount assembly uses a single mounting point, which simplifies the overhead installation compared with a two-cable hang while maintaining audio reach across the table. A single USB-C connection carries audio to a room PC or soft-codec appliance, and the bar can draw power over USB-C or its external power supply. Biamp Launch automated tuning optimizes the audio to each unique conferencing space after installation, and a mute-status LED provides clear visual feedback. For rooms better suited to a two-cable ceiling hang, the companion model is the Parle CBC 2500 CM; explore related conferencing hardware in the Biamp collection at Creation Networks.

Key Features

• Single-point pole mount — A pole-mount assembly with a single mounting point offers a clean, simple overhead installation.
• 27-element beamtracking array — A 27-element digital microphone array with Biamp Beamtracking actively tracks and intelligently mixes conversation.
• Acoustic echo cancellation — Integrated AEC works with the beamforming array to deliver a clean far-end signal.
• AI noise reduction — An AI noise reduction algorithm suppresses background sound for clearer voice reproduction.
• Integrated smart speakers — Two low-distortion speakers use distortion compensation and dynamic bass enhancement for room-filling speech.
• Single-cable USB-C — A single USB-C connection carries audio, with power over USB-C or the included external supply.
• Biamp Launch tuning — Automated one-touch tuning optimizes audio output to each unique room after installation.
• Teams and Zoom certified — The bar is certified for Microsoft Teams and Zoom conferencing platforms.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Multi-purpose room
• Training room
• Commercial meeting space

Technical Specifications

Specifications reflect the Biamp Parle CBC 2500 conferencing bar family (CBC 2500 CM data sheet); the PM shares the same bar electronics with a pole-mount assembly. Confirm PM-specific mounting, coverage, and power details against current Biamp documentation.

Frequently Asked Questions

What conferencing platforms is it certified for?
The CBC 2500 PM is certified for Microsoft Teams and Zoom and is designed to work with soft-codec conferencing systems.

How is it installed?
It uses a single-point pole-mount assembly that suspends the bar from an open-plan ceiling, minimizing visual clutter.

How does it connect and get power?
A single USB 3.0 Type-C cable carries audio, and the bar is powered over USB-C (60W) or from its external power supply.

How large a room can it cover?
The 27-element beamtracking array has a pickup range greater than 23 feet (7 m); coverage varies with mounting height, so confirm the coverage details for your ceiling height against current Biamp documentation.

What is the difference between the PM and CM models?
The PM uses a single-point pole mount, while the CM hangs on two cables from an open ceiling; both share the same conferencing bar electronics.

Does it require manual audio tuning?
No. Biamp Launch provides automated one-touch tuning that optimizes audio to the room after physical installation.

What warranty is included?
The CBC 2500 PM is covered by a three-year warranty. Contact Creation Networks for integration and installation support.
