Biamp 920-01966-00001 Biamp NMS-NG10GPX-AVB

Product Overview

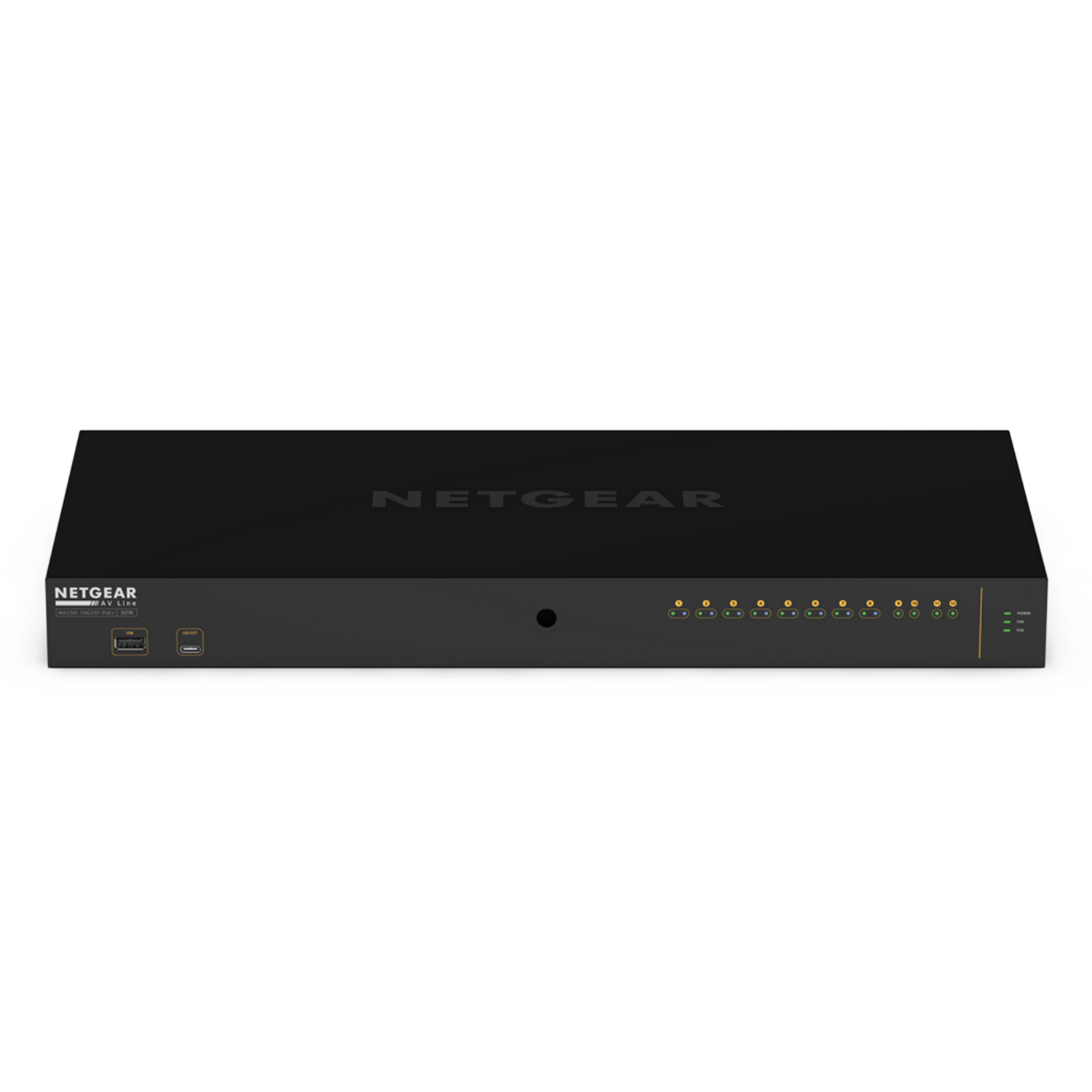

The Biamp NMS-NG10GPX-AVB is a managed AV network switch preconfigured for networked audio and video, giving integrators a ready-to-deploy backbone for AVB and Dante systems. Based on the NETGEAR M4250-10G2XF-PoE+ AV Line platform, it combines PoE+ ports for powering endpoints with 10G SFP+ uplinks for high-bandwidth media transport. It ships with Biamp's AVB license preloaded, so it is out-of-box ready for Tesira and Qt X deployments without manual switch programming. As a commercial-grade managed switch, it simplifies the network layer in professional AV installations.

Product Description

The NMS-NG10GPX-AVB removes much of the network configuration burden from AV integration by arriving preconfigured by Biamp with the AVB license enabled. The switch provides eight 1GbE RJ-45 ports with PoE+ and a total PoE budget of 240W, which can power networked endpoints such as Qt X sound masking controllers, ceiling microphones, and Tesira expanders directly over the LAN. Two 10G SFP+ ports serve as high-bandwidth uplinks between switches or to core network infrastructure, supporting larger routed AVB and Dante systems. Because both AVB and Dante traffic are supported, the switch fits a wide range of Biamp signal-processing and sound-masking designs on a single managed platform. In a single-switch configuration, all ports can serve controllers, AVB or Dante devices, and a management PC connection; in daisy-chained topologies, the 10G ports link switches together to extend the system. The managed feature set gives integrators the VLAN, QoS, and traffic controls that reliable networked AV requires, while the preloaded configuration shortens commissioning time on site. The NMS-NG10GPX-AVB pairs naturally with Biamp Tesira processors, networked microphones, and Qt X sound masking hardware in the Biamp collection at Creation Networks.

Key Features

• Preconfigured for AVB — The switch ships with Biamp's AVB license enabled and is out-of-box ready for networked AV systems.
• PoE+ endpoint power — Eight 1GbE ports supply PoE+ with a 240W total budget to power controllers, microphones, and expanders.
• 10G SFP+ uplinks — Two 10G SFP+ ports provide high-bandwidth uplinks for larger systems and switch-to-switch daisy chains.
• AVB and Dante support — The switch carries both AVB and Dante media traffic on a single managed platform.
• Managed control — A managed feature set provides the VLAN, QoS, and traffic controls that networked AV requires.
• Flexible topologies — It supports single-switch and daisy-chained configurations for scalable deployments.
• AV Line platform — Built on the NETGEAR M4250-10G2XF-PoE+ AV Line switch for professional installations.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Government space
• Multi-purpose room
• Auditorium

Technical Specifications

Specifications sourced from Biamp and NETGEAR M4250-10G2XF-PoE+ documentation. Confirm detailed specifications, including full electrical and environmental ratings, against current Biamp documentation.

Frequently Asked Questions

Do I need to configure the switch for AVB?
No. The NMS-NG10GPX-AVB is preconfigured by Biamp with the AVB license and is out-of-box ready for networked AV systems.

How many PoE devices can it power?
It provides eight PoE+ ports sharing a 240W budget, enough to power a full set of Qt X 800 controllers at up to 30W each, or a mix of PoE endpoints.

What are the 10G ports for?
The two 10G SFP+ ports act as high-bandwidth uplinks between switches or to core infrastructure, and can also serve AVB or management connections.

Does it support Dante as well as AVB?
Yes. All ports support both AVB and Dante media traffic on a single managed switch.

Can I build larger systems with multiple switches?
Yes. The switch supports single-device and daisy-chained topologies, using the 10G ports to link units together.

What warranty and support are available?
Warranty is provided through Biamp and the underlying NETGEAR AV Line platform; contact Creation Networks for current terms and network design assistance.
