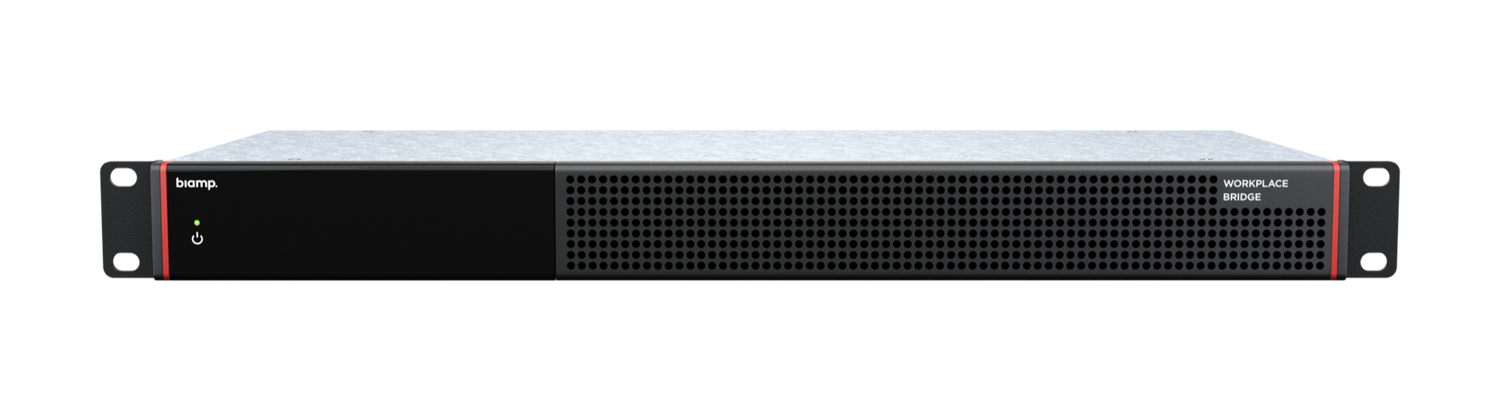

Biamp 920-01902-00001 Workplace Bridge

Product Overview

The Biamp Workplace Bridge is a dedicated network appliance that connects an on-premises AV network to the Biamp Workplace cloud, giving integrators a single, secure path for remote monitoring, analytics, and device management. It is built for organizations standardizing on Biamp audio across many rooms that need centralized oversight without exposing every device to the internet. Acting as one hardened gateway, the Workplace Bridge relays communication for supported Biamp devices and brings legacy Tesira Server-class hardware into Biamp Workplace. A single Bridge supports up to 100 connected Tesira SERVER-IO and Rev A TesiraFORTE devices at once.

Product Description

The Workplace Bridge is designed for AV system integration at scale, where dozens of conference rooms and boardrooms share a common management platform. It presents two distinct Ethernet ports: a LAN port for corporate network and internet access, and an AV LAN port intended to establish an isolated local network for Biamp AV devices on a later firmware release. In a non-isolated deployment, the Bridge acts as the single point of external communication to Biamp Workplace for all supported Biamp devices on the AV network. In the planned isolated topology, only the Bridge reaches the internet while AV traffic routes securely through it, giving the AV network an air-gapped posture. This lets facilities teams apply cloud monitoring and remote device management to both modern and legacy Biamp hardware from one connection. Explore the full Biamp collection at Creation Networks, and pair the Bridge with the Workplace Control Designer to program room control alongside cloud management. The Workplace Bridge is a commercial-grade component for enterprise AV estates that require secure remote administration.

Key Features

• Single Secure Gateway — The Workplace Bridge provides one hardened path between the AV network and the Biamp Workplace cloud, reducing the number of devices that need direct internet access.
• Dual Ethernet Ports — Separate LAN and AV LAN ports let integrators keep corporate traffic and Biamp AV traffic on distinct networks.
• Large Device Capacity — A single Bridge supports up to 100 connected Tesira SERVER-IO and Rev A TesiraFORTE devices simultaneously.
• Legacy Tesira Support — The Bridge brings legacy Tesira Server-class devices into Biamp Workplace, extending cloud management to existing installations.
• Isolated AV Network Ready — The AV LAN port is designed to create an air-gapped network with DHCP and NTP services on a future firmware release.
• Cloud Monitoring and Analytics — Connecting to Biamp Workplace enables remote monitoring, analytics, and management across the connected device estate.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Government space
• Training room
• All-hands room

Technical Specifications

Specifications sourced from Biamp product and support documentation. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which Biamp devices does the Workplace Bridge support?
It supports up to 100 connected Tesira SERVER-IO and Rev A TesiraFORTE devices at once and brings legacy Tesira Server-class hardware into Biamp Workplace.

How does the Bridge connect to the network?
It has two Ethernet ports: a LAN port for corporate network and internet access, and an AV LAN port for an isolated AV network that is enabled on a later firmware release.

Can it isolate the AV network from the internet?
Yes. In the planned isolated topology, only the Bridge connects to the internet and Biamp device traffic routes securely through it, providing an air-gapped AV network.

What software manages the Bridge?
The Workplace Bridge communicates with the Biamp Workplace platform for cloud monitoring, analytics, and remote device management.

Does it work with existing legacy Tesira installations?
Yes. Since Tesira firmware v5.5.0, legacy Tesira Server-class devices send Workplace Bridge discovery packets so they can be brought into Biamp Workplace.

Is the Workplace Bridge available through Creation Networks?
Yes. Confirm current firmware feature availability against Biamp documentation before deployment.
