Biamp 920-01871-20000 Apprimo Touch 7 White

Product Overview

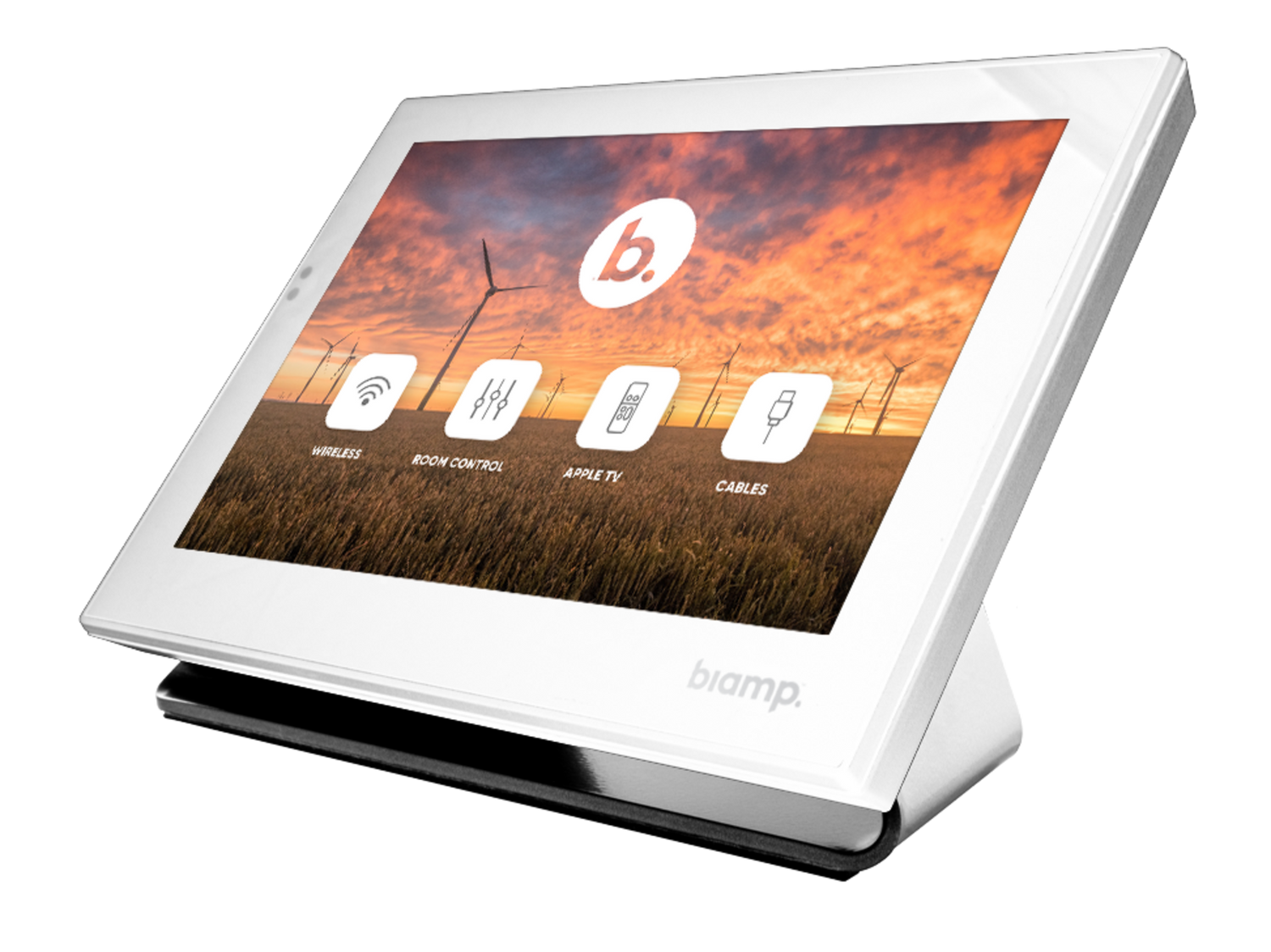

The Biamp Apprimo Touch 7 is a 7-inch capacitive touch panel built for conference room control and any commercial space that needs a more advanced, graphical control interface. This PoE room control touch panel delivers a fully customizable user interface configured in Biamp Project Designer software, so integrators can match both the control requirements and the corporate identity of each room. Proximity and ambient-light sensors wake the screen automatically and adjust brightness, keeping the panel discreet until it is needed. Finished in white, it can be wall-mounted or set on a table as part of a broader commercial AV control system.

Product Description

The Apprimo Touch 7 provides a 7-inch high-contrast capacitive touch LCD (1024x595, 350 nits) behind scratch-resistant glass, giving end users a durable, easy-to-read AV control interface. Rather than shipping with a fixed layout, the panel is programmed in Project Designer software, which includes several themes and customizable templates so the control surface can present exactly the sources, presets, and level controls a given room requires. As a networked device, it connects over a single RJ-45 Cat 5e/Cat 6 cable for both configuration and control. Firmware is field-updatable through the panel's mini-USB port using the included USB-OTG adapter.

The Touch 7 is operated by a separate Biamp Impera controller (Impera Alfa II, Impera Lima, Impera Tango, or Impera Sierra II), which lets integrators size the processing to the installation instead of paying for capabilities a room does not need. Built-in proximity and ambient-light sensors turn the display on as someone approaches and adapt brightness to the room, which improves both usability and screen longevity. The panel is PoE-powered (IEEE 802.3at Class 3, 15W) for single-cable installation, mounts to standard single-gang US, EU, and DK back boxes, and can also sit on a flat surface or the optional TP-TS table stand. Backed by a five-year Biamp warranty, the Apprimo Touch 7 is well suited to conference room and commercial meeting space deployments. Explore compatible controllers and DSP in our Biamp collection, or choose the Apprimo Touch 7 in black for darker interiors.

Key Features

• 7-inch capacitive touch LCD — A high-contrast 1024x595 display at 350 nits provides a clear, responsive control surface for room operation.
• Scratch-resistant glass — A hardened front surface stands up to daily use in shared commercial rooms.
• Fully customizable UI — Project Designer software supplies themes and templates so the interface matches room functions and corporate branding.
• Automatic wake and dimming — Proximity and ambient-light sensors turn the screen on as users approach and adjust brightness to the room.
• Single-cable PoE install — IEEE 802.3at Class 3 (15W) power and networking run over one Cat 5e/Cat 6 cable.
• Flexible mounting — Wall-mounts to standard single-gang US, EU, and DK back boxes or sits on a flat surface or optional TP-TS table stand.
• Field-updatable firmware — A mini-USB port with included USB-OTG adapter allows straightforward firmware updates.
• Five-year warranty — Covered by Biamp's five-year warranty for dependable commercial service life.

Typical Applications

• Conference room — Graphical touch control of sources, displays, and audio levels for everyday meetings.
• Boardroom — A premium, brandable control surface that suits executive interiors.
• Training room — Guided, template-driven control that keeps operation simple for rotating presenters.
• Multi-purpose room — Reconfigurable UI that adapts as the space changes function.
• Commercial meeting space — Discreet, sensor-aware control point for standardized room designs across a facility.

Technical Specifications

Specifications sourced from the Biamp Apprimo Touch 7 data sheet.

Frequently Asked Questions

Does the Apprimo Touch 7 work on its own, or does it need a controller?
The Touch 7 is operated by a separate Biamp Impera controller. It is compatible with Impera Alfa II, Impera Lima, Impera Tango, and Impera Sierra II, which lets you match processing to the room.

How is the panel installed and powered?
It is PoE-powered (IEEE 802.3at Class 3, 15W) over a single RJ-45 Cat 5e/Cat 6 cable. It mounts to standard single-gang US, EU, and DK back boxes, sits on a flat surface, or uses the optional TP-TS table stand.

How is the user interface configured for AV system integration?
The UI is built in Biamp Project Designer software using included themes and templates, so the control layout can be tailored to the room's sources, presets, and level controls and to corporate branding.

Can the firmware be updated in the field?
Yes. The panel includes a mini-USB 2.0 port and a USB-OTG adapter for firmware updates after installation.

What is the difference between the Touch 7 and Touch 10?
Both share the same feature set and controller compatibility; the Touch 10 provides a larger 10-inch display for rooms that need more on-screen controls or greater visibility.

What warranty and support does it carry?
The Apprimo Touch 7 is covered by Biamp's five-year warranty and is CE marked and RoHS compliant, with support and firmware provided through Biamp.
