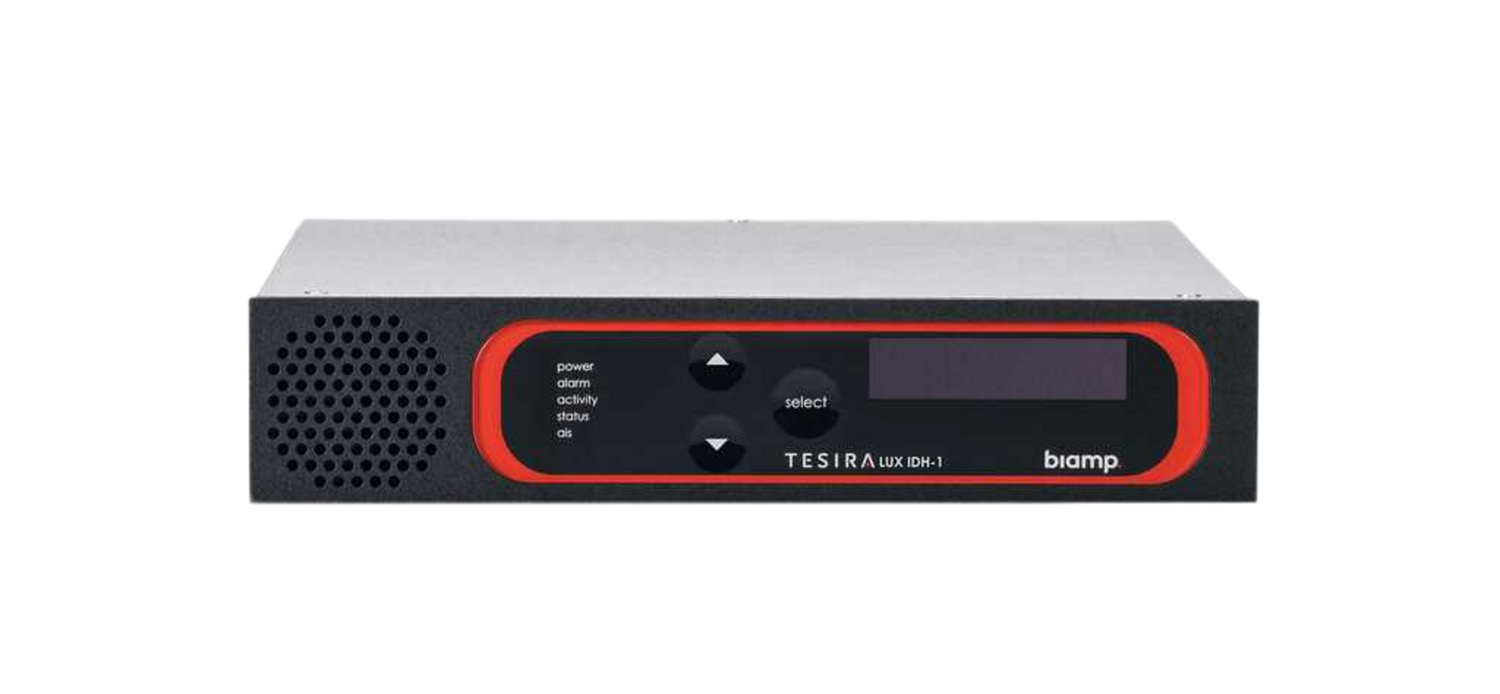

Biamp 920-00426-00001 TesiraLUX IDH-1

Product Overview

The Biamp TesiraLUX IDH-1 is an AVB/TSN video encoder that transmits networked video up to and including 4K60 for Tesira media systems. Acting as an AVB talker, it captures HDMI or DisplayPort sources and moves synchronized audio and video across a standard network with automatic lip-sync management. Built for AV-over-network distribution in lecture halls, courtrooms, and multi-use spaces, the IDH-1 delivers low-latency 4K60 video encoding with end-to-end network transit latency of 1.5 frames or less. It is configured entirely through Tesira software as part of an integrated audio and video platform.

Product Description

The TesiraLUX IDH-1 functions as a server-class encoder in a Tesira media system, pairing with a TesiraLUX decoder to distribute high-resolution video over an AVB/TSN network. It accepts sources up to 4K60 with 4:4:4 subsampling on one HDMI port and one DisplayPort 1.2 port, and supports a flexible color space up to Rec. 2020 for detail-critical content. AVB/TSN media can run over 1Gb or 10Gb ports while control travels on a separate 1Gb Ethernet connection, and the encoder supports a virtual matrix of up to 128 devices for large routed systems. Multiple software-based bandwidth options let designers set maximum resolution, minimum frame rate, or a compression rate, and visually lossless M-JPEG compression keeps end-to-end transit latency at 1.5 frames or less. The IDH-1 handles 8 channels of PCM audio for embedding and de-embedding and provides two mic/line-level analog inputs with 48V phantom power on removable screw-down connectors. Four GPIO logic connections and an RS-232 serial port allow source and room control integration, and automated EDID management coordinates signals with the input source. Built in a half-rack chassis, it pairs with its decoder counterpart, the TesiraLUX OH-1 video decoder, and other networked AV hardware in the Biamp collection at Creation Networks.

Key Features

• 4K60 video encoding — The encoder accepts video signals up to and including 4K60 with 4:4:4 subsampling.
• HDMI and DisplayPort inputs — One HDMI port and one DisplayPort 1.2 port accept a wide range of sources.
• AVB/TSN networking — It transmits synchronized audio and video as an AVB talker over 1Gb or 10Gb media ports.
• Bandwidth management — Software options set maximum resolution, minimum frame rate, or compression rate to fit the network.
• Low latency — Visually lossless M-JPEG compression holds end-to-end transit latency to 1.5 frames (25 ms at 60 fps) or less.
• Embedded and analog audio — It supports 8 channels of PCM audio and two mic/line-level analog inputs with 48V phantom power.
• Control and logic I/O — Four GPIO logic connections and an RS-232 serial port support source and room control.
• Half-rack chassis — The compact half-rack form factor and 5-year warranty support flexible, reliable installation.

Typical Applications

• Auditorium
• Conference room
• Boardroom
• Training room
• Broadcast studio
• Government space
• Multi-purpose room

Technical Specifications

Specifications sourced from the Biamp TesiraLUX IDH-1 data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

What does the IDH-1 pair with?
The IDH-1 is a video encoder designed for Tesira systems and pairs with a TesiraLUX decoder such as the OH-1 to distribute video across the network.

What sources and resolutions does it accept?
It accepts HDMI and DisplayPort 1.2 sources up to and including 4K60 with 4:4:4 subsampling, with color space up to Rec. 2020.

How is it installed and networked?
The half-rack encoder connects to an AVB/TSN network over 1Gb RJ-45 or 10Gb SFP+, with a separate 1Gb Ethernet port for control and configuration.

Can I manage network bandwidth?
Yes. Software options let you set maximum resolution, minimum frame rate, or a rate of compression to match available bandwidth.

How does it integrate with control and audio?
It provides four GPIO logic connections, an RS-232 serial port, 8 channels of embedded PCM audio, and two analog mic/line inputs with phantom power.

Is it configured with separate software?
The IDH-1 is configured through Tesira software alongside the rest of the media system, unifying audio and video design.

What warranty is included?
The TesiraLUX IDH-1 is covered by Biamp's five-year warranty. Contact Creation Networks for design and integration support.
