Biamp 920-00332-20000 Desono DX-S5-UB-W White
Biamp 920-00332-20000 Desono DX-S5-UB-W White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp 920-00332-20000 Desono DX-S5-UB-W White
Product Overview

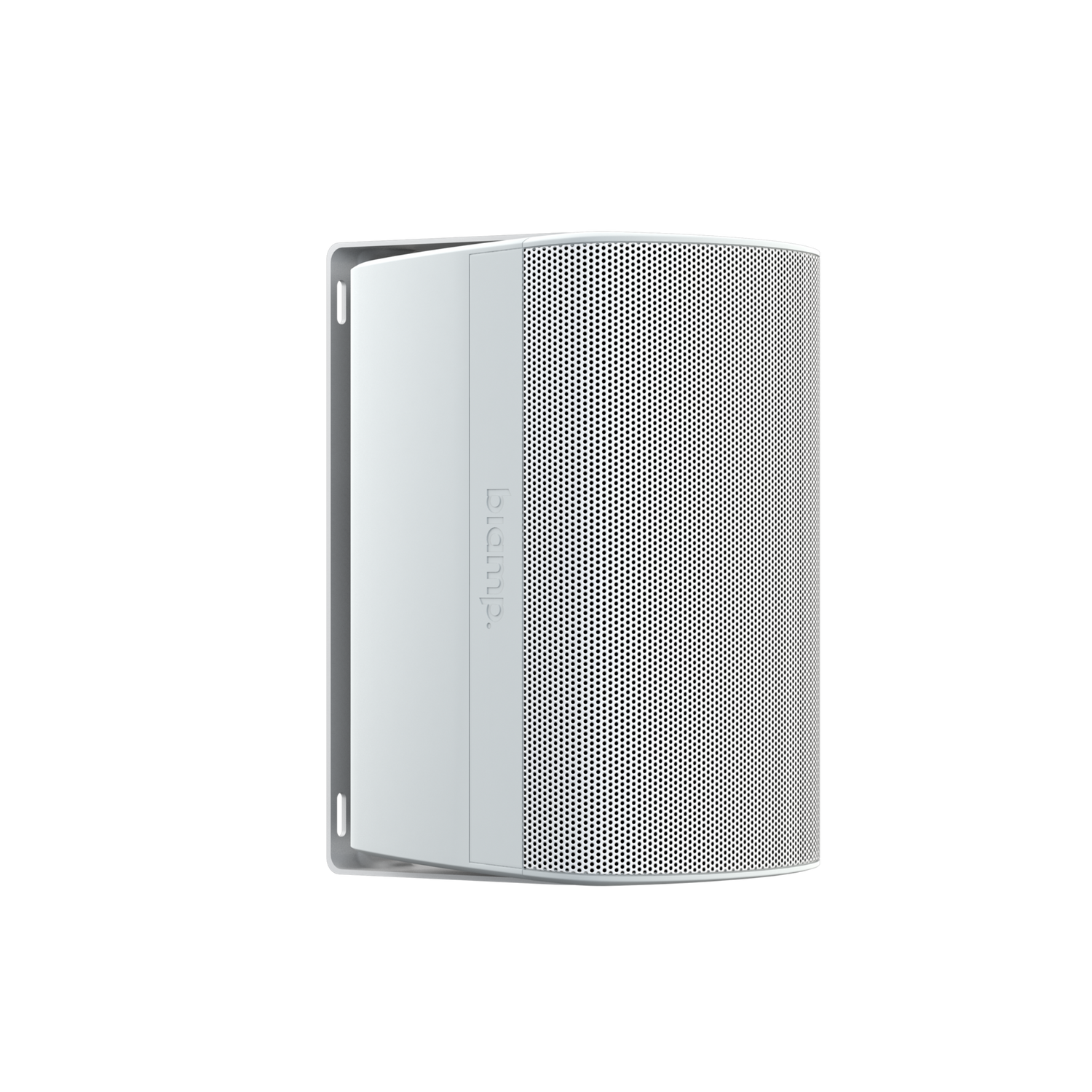

The Biamp Desono DX-S5-UB in white is a 5-inch two-way high-output coaxial surface mount loudspeaker for indoor and direct outdoor use. Rated IP54 for weather resistance, this commercial-grade loudspeaker supports 70V/100V distributed audio or 8-ohm low-impedance operation, making it a versatile choice for background music and paging. It ships with an aluminum ClickMount U-Bracket and water-tight ClickPlug for low-profile, tamper-resistant installation.
Product Description
The Desono DX-S5 delivers high efficiency, high output, and high intelligibility with low distortion in a compact enclosure that installs quickly and voices identically to the Desono DX ceiling loudspeakers. Its coaxially mounted low-frequency and high-frequency drivers produce uniform 130-degree conical coverage, and a built-in autoformer provides selectable 70V and 100V taps alongside an 8-ohm low-impedance input for flexible distributed audio design. The IP54 environmental rating, validated against salt mist, solar radiation, and chlorine exposure, suits the DX-S5-UB to covered outdoor walkways, patios, pool decks, and other demanding installations as well as indoor retail, hospitality, and presentation spaces. This UB configuration includes the ClickMount U-Bracket with an integrated ClickPlug gland nut, allowing low-profile mounting in vertical or horizontal orientation without moving the bracket, with theft- and tamper-resistant hardware for public spaces. A lever-actuated four-position terminal block with pass-through wiring simplifies daisy-chained runs, and a wattage/impedance selector switch can be set before the speaker is mounted. The DX-S5 operates as a passive loudspeaker with DSP and requires a 65 Hz high-pass filter for full-range performance. It pairs naturally with Biamp Community amplified loudspeaker controllers; see the matching DX-S5-UB in black and browse related loudspeakers in the Biamp collection.
Key Features
- Two-Way Coaxial Design — Coaxially mounted 5-inch LF and 1-inch HF compression drivers deliver uniform, intelligible coverage.
- 70V/100V and Low-Impedance Operation — A built-in autoformer with selectable taps supports distributed audio, plus 8-ohm low-impedance use.
- IP54 Weather Resistance — Rated for direct outdoor exposure and validated against salt mist, solar radiation, and chlorine.
- ClickMount U-Bracket Included — Ships with the aluminum U-bracket and water-tight ClickPlug for fast, weather-resistant mounting.
- Tamper-Resistant Mounting — Theft- and tamper-resistant hardware supports installation in public and unattended spaces.
- Pass-Through Wiring — A lever-actuated four-position terminal block with pass-through simplifies daisy-chained loudspeaker runs.
- Shared DX Voicing — Uses the same components and voicing as the Desono DX ceiling loudspeakers for consistent system tonality.
Technical Specifications
| Model / SKU | Desono DX-S5-UB-W (White) / 920-00332-20000 |
| Type | Two-way high-output coaxial surface mount loudspeaker |
| Operating Mode | Passive with DSP |
| Operating Range (-10 dB) | 65 Hz to 20 kHz |
| Nominal Beamwidth | 130° conical |
| Transducers | LF: 1 × 5 in (127 mm); HF: 1 × 1 in (25 mm) compression driver |
| Sensitivity | 93 dB (2.83 V / 1 W at 8Ω) |
| Continuous Power (Passive) | 100 W @ 8Ω (28 V) |
| Nominal Maximum SPL | 119 dB peak / 113 dB continuous |
| Autoformer Taps | 70V: 60/30/15/7.5 W; 100V: 60/30/15 W |
| Crossover Frequency | 1.6 kHz |
| Recommended Amplifiers (Passive) | 100–200 W @ 8Ω (28–40 V) |
| Required Accessory | 65 Hz, 24 dB/oct electronic high-pass filter |
| Input Connection | Lever-actuated 4-position terminal block with pass-through |
| Mounting | ClickMount U-Bracket with ClickPlug (included) |
| Environmental Rating | IP54 per IEC 60529 (indoor/outdoor) |
| Certifications | ETL listed to UL 1480A, CSA 62368-1 |
| Dimensions (H × W × D) | 280 × 180 × 185 mm (11.03 × 7.09 × 7.28 in) |
| Enclosure / Finish | ABS plastic, paintable white finish |
Specifications sourced from the Biamp Desono DX-S5 datasheet. Confirm detailed specifications against current Biamp documentation.
