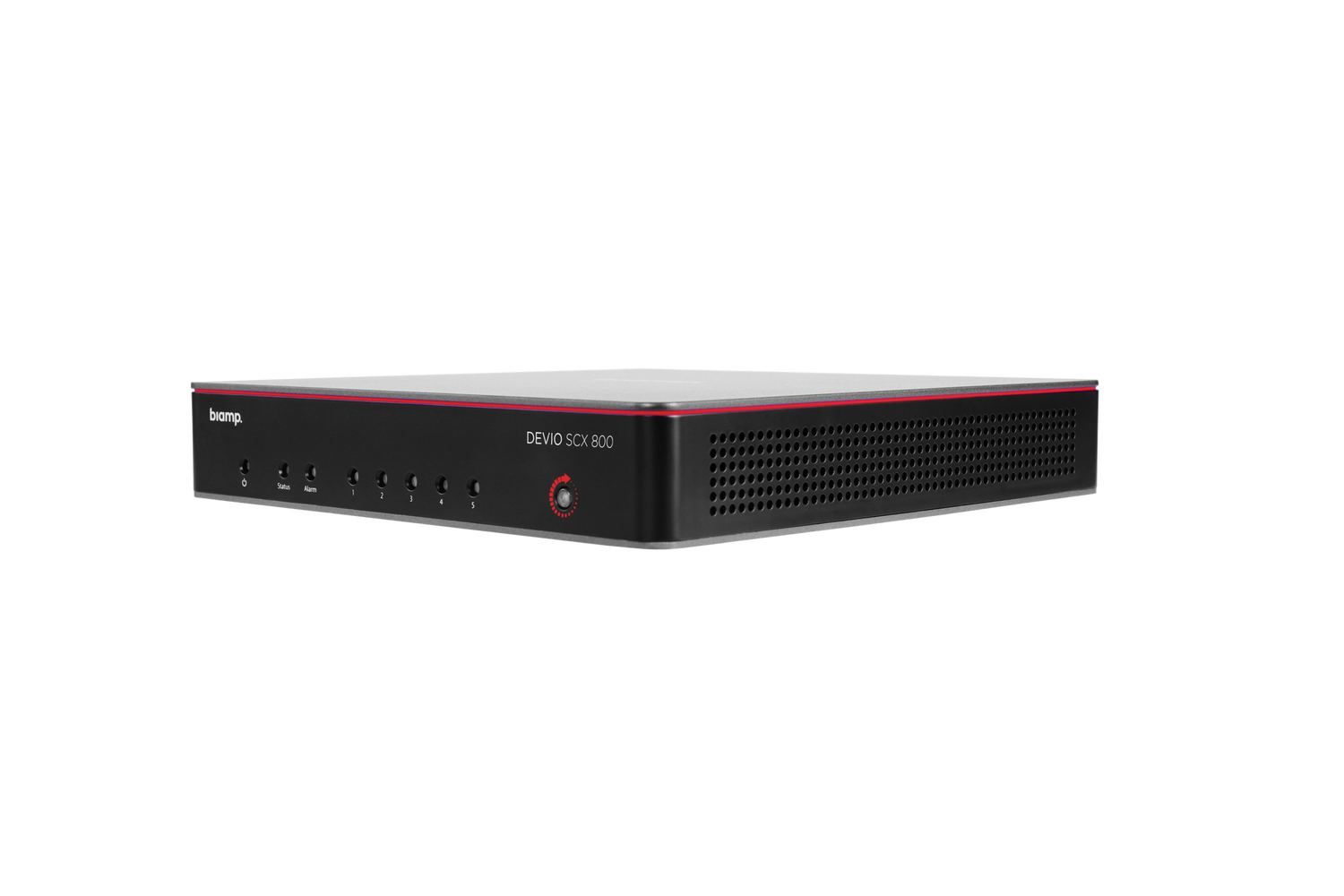

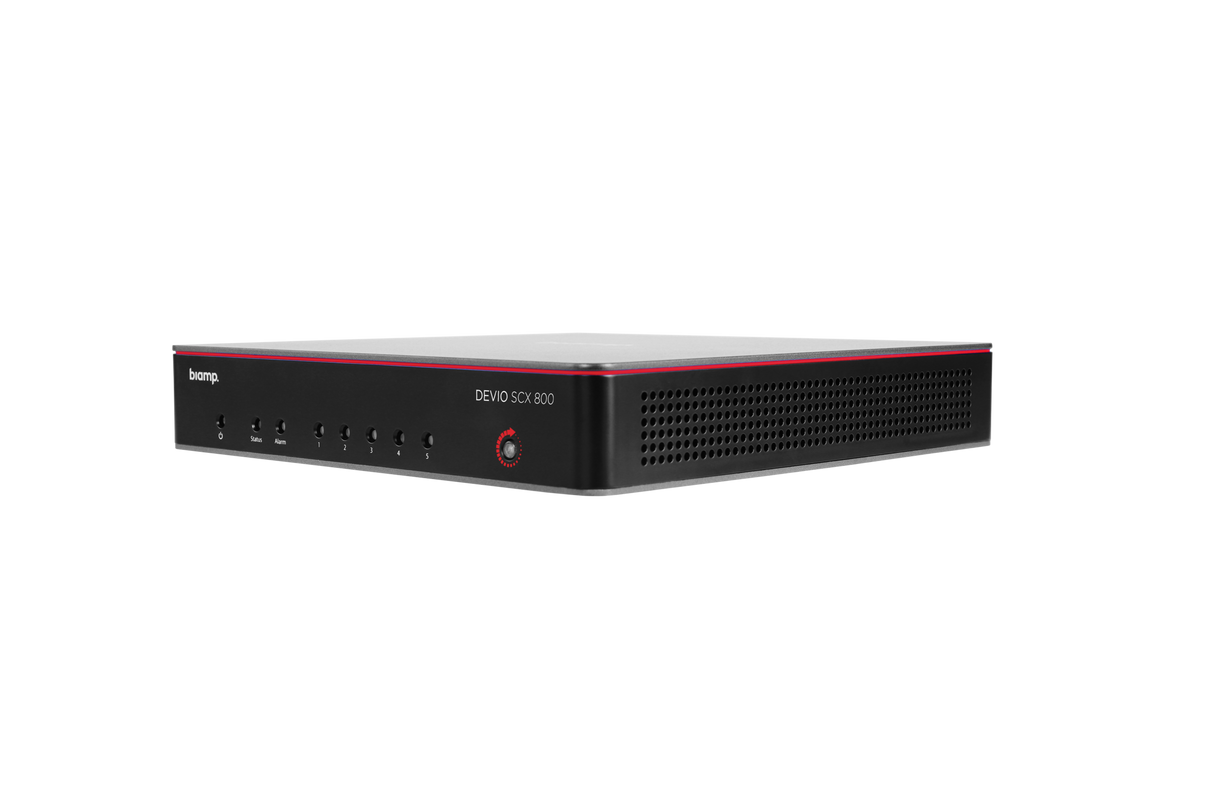

Biamp 920-00090-00001 Devio SCX 800

Product Overview

The Biamp Devio SCX 800 is a conference room hub that connects Unified Communications systems and in-room audio into a single, zero-programming solution for larger meeting rooms. Built around Biamp's Parle Beamtracking microphones and professional DSP, this USB conferencing DSP hub handles onboard acoustic echo cancellation for up to eight Parle microphones and syncs USB audio and mute state with the room's UC host. A built-in SIP VoIP interface adds standards-based telephony, and Biamp Launch performs one-touch device discovery and room tuning. It is a strong fit for medium-to-large conference rooms standardizing on Microsoft Teams, Zoom, and similar platforms.

Product Description

The Devio SCX 800 connects a UC host (or a Windows or Mac computer) over a single USB type-B connection and links Biamp network audio and control peripherals over RJ-45, providing five 1-Gigabit Ethernet ports of which four deliver PoE+ power to attached devices. That architecture lets integrators build a complete conferencing system with Parle Beamtracking microphones, an AMP-450 amplifier, and loudspeakers while keeping cabling and power distribution simple. Onboard DSP provides enough acoustic echo cancellation and processing to support up to eight Parle microphones, making it suitable for larger tables and rooms where more coverage is required. USB audio and HID synchronization allow the hub to act as the room's conference audio peripheral, keeping mute and call state aligned between the room and the platform.

Biamp Launch automates discovery and tuning: after physical installation, it detects connected devices, configures them, optimizes levels, and produces an acoustic and performance report. The SCX 800 also includes a SIP VoIP interface over Gigabit Ethernet supporting one line with two call appearances, and every aspect of the hub is configurable through an on-device web page and through SageVue, Biamp's monitoring and management platform. It is surface-mountable with the included bracket and backed by a five-year Biamp warranty. For smaller rooms that need fewer microphones, the SCX 400 is a lower-cost option. Pair the SCX 800 with Parle Beamtracking microphones and amplifiers from our Biamp collection, or compare the four-microphone Devio SCX 400.

Key Features

• UC + in-room audio bridge — Connects Unified Communications systems and in-room audio with USB audio and HID mute synchronization.
• Up to eight Parle microphones — Onboard acoustic echo cancellation and DSP support up to eight Parle Beamtracking microphones for larger rooms.
• Five Gigabit Ethernet ports — Includes five 1-GbE ports, four of which provide PoE+ power to attached Biamp peripherals.
• SIP VoIP interface — Standards-based telephony over Gigabit Ethernet supporting one line and two call appearances.
• Biamp Launch auto-tuning — One-touch discovery, configuration, and level optimization with a completion report.
• Web and SageVue management — Full configuration, monitoring, and diagnostics via an onboard web page and SageVue.
• Simple mounting — Surface-mountable with the included bracket.
• Five-year warranty — Covered by Biamp's five-year warranty.

Typical Applications

• Conference room — Medium-to-large rooms using multiple Parle microphones with a UC platform.
• Boardroom — Even, echo-cancelled voice pickup across large executive tables.
• Training room — Wide-coverage room audio with automated tuning.
• All-hands room — Larger collaboration spaces needing more microphone coverage.
• Commercial meeting space — Repeatable, remotely managed room audio across a facility.

Technical Specifications

Specifications sourced from the Biamp Devio SCX 800 data sheet.

Frequently Asked Questions

How many microphones does the SCX 800 support?
Its onboard acoustic echo cancellation and processing support up to eight Biamp Parle microphones, twice the capacity of the SCX 400.

How does it connect to our conferencing platform?
It connects to a UC host or a Windows/Mac computer via a single USB type-B cable and synchronizes USB audio and mute (HID) with the platform, so it works with common soft codecs.

What Biamp devices does it work with?
Biamp Launch supports Parle microphones, AMP-450 amplifiers, Tesira EX-UBT, Tesira HD-1, Tesira TEC-X, and TesiraCONNECT TC-5, connected over the hub's RJ-45 ports with PoE+.

Does it include telephony?
Yes. A SIP VoIP interface over Gigabit Ethernet supports one line with two call appearances.

How is it installed and tuned?
It is surface-mountable with the included bracket, and Biamp Launch automatically discovers connected devices, configures them, and optimizes levels, producing a performance report on completion.

How is it managed and what warranty applies?
It is configured and monitored through an onboard web page and SageVue, and it carries Biamp's five-year warranty.
