Biamp 910-01840 NPX H1040

Product Overview

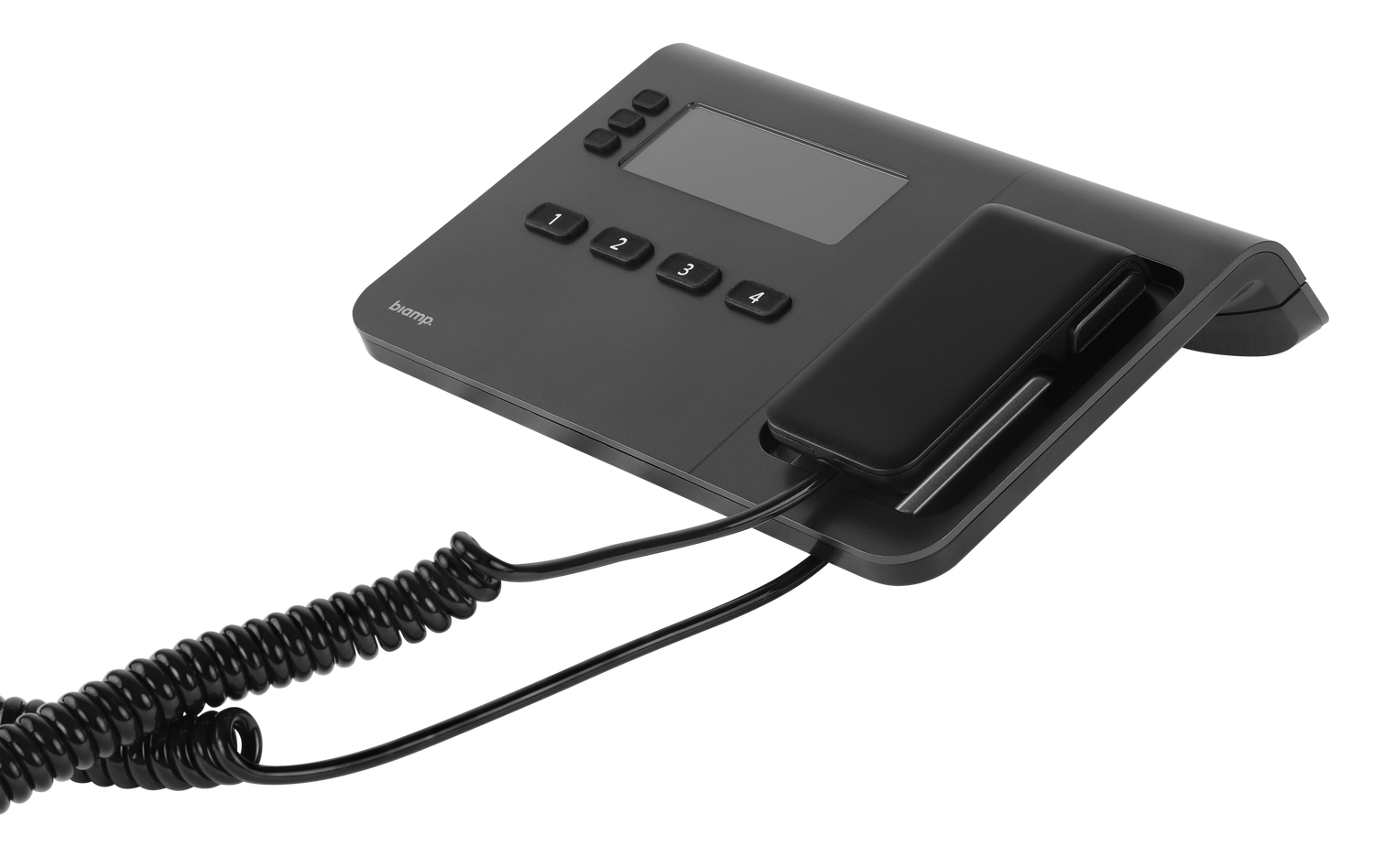

The Biamp NPX H1040 is a 4-button convenience paging station with a handheld microphone, built for live and pre-recorded announcements in commercial paging and public address systems. It is designed for use with Biamp Tesira and Qt X systems, with embedded DSP and on-board memory for stored message playback and customized preambles. As a compact network paging station, it stores up to four user-configurable page codes and up to 10 prerecorded messages, making it a good fit for smaller facilities or single-purpose paging points. Paging content can travel over AVB or Dante network paths.

Product Description

The NPX H1040 provides straightforward, zone-based paging control from a desktop or counter position, with a four-button layout suited to installations that need only a handful of defined paging zones and a handheld microphone for operators who prefer to pick up the mic. It is designed for use with Biamp Tesira and Qt X systems, so the same station that handles live pages can also trigger stored announcements held in on-board memory. Embedded DSP and memory support up to 10 prerecorded messages and customized preambles, while up to four user-configurable page codes cover common single-zone or few-zone applications such as a reception desk, warehouse counter, or house of worship. Because the station connects over the network and passes content via AVB or Dante, it drops into an existing commercial AV and paging infrastructure with a single cable run. For larger systems that need many more page codes, step up to the 10-button NPX H1100; a gooseneck-microphone version of this station is available as the NPX G1040. Explore compatible Tesira processors and paging hardware in the Biamp collection at Creation Networks.

Key Features

• 4-button paging control — The station provides four programmable buttons for zone selection and message playback in smaller paging systems.
• Up to 4 page codes — It stores up to four user-configurable page codes for single-zone or few-zone applications.
• Embedded DSP and message memory — On-board DSP and memory hold up to 10 prerecorded messages and customized preambles for automated announcements.
• Handheld microphone — The handheld microphone suits operators who prefer to pick up the mic for live pages.
• Tesira and Qt X compatibility — The station is designed for use with Biamp Tesira and Qt X systems for commercial paging and public address.
• AVB or Dante paging paths — Paging content can travel over AVB or Dante network paths for flexible system integration.

Typical Applications

• Commercial meeting space
• Government space
• Multi-purpose room
• House of worship
• Auditorium

Technical Specifications

Specifications sourced from Biamp product documentation. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which systems is the NPX H1040 compatible with?
It is designed for use with Biamp Tesira and Qt X systems and passes paging content over AVB or Dante network paths.

How many zones can it address?
The 4-button station stores up to four user-configurable page codes, suited to single-zone or few-zone paging.

Can it play prerecorded announcements?
Yes. Embedded DSP and on-board memory hold up to 10 prerecorded messages plus customized preambles.

When should I choose the H1040 over the H1100?
Choose the 4-button H1040 for smaller installations with a few zones; step up to the 10-button H1100 when you need up to 999 page codes.

How is it cabled and installed?
The station connects over the network for single-cable installation into a Tesira or Qt X paging system. Confirm exact power and wiring requirements against current Biamp documentation.

Does it include a warranty and support?
Biamp products are backed by manufacturer warranty and technical support. Contact Creation Networks for current warranty terms and integration assistance.
