Biamp 910-01561 CMAR5-W

Product Overview

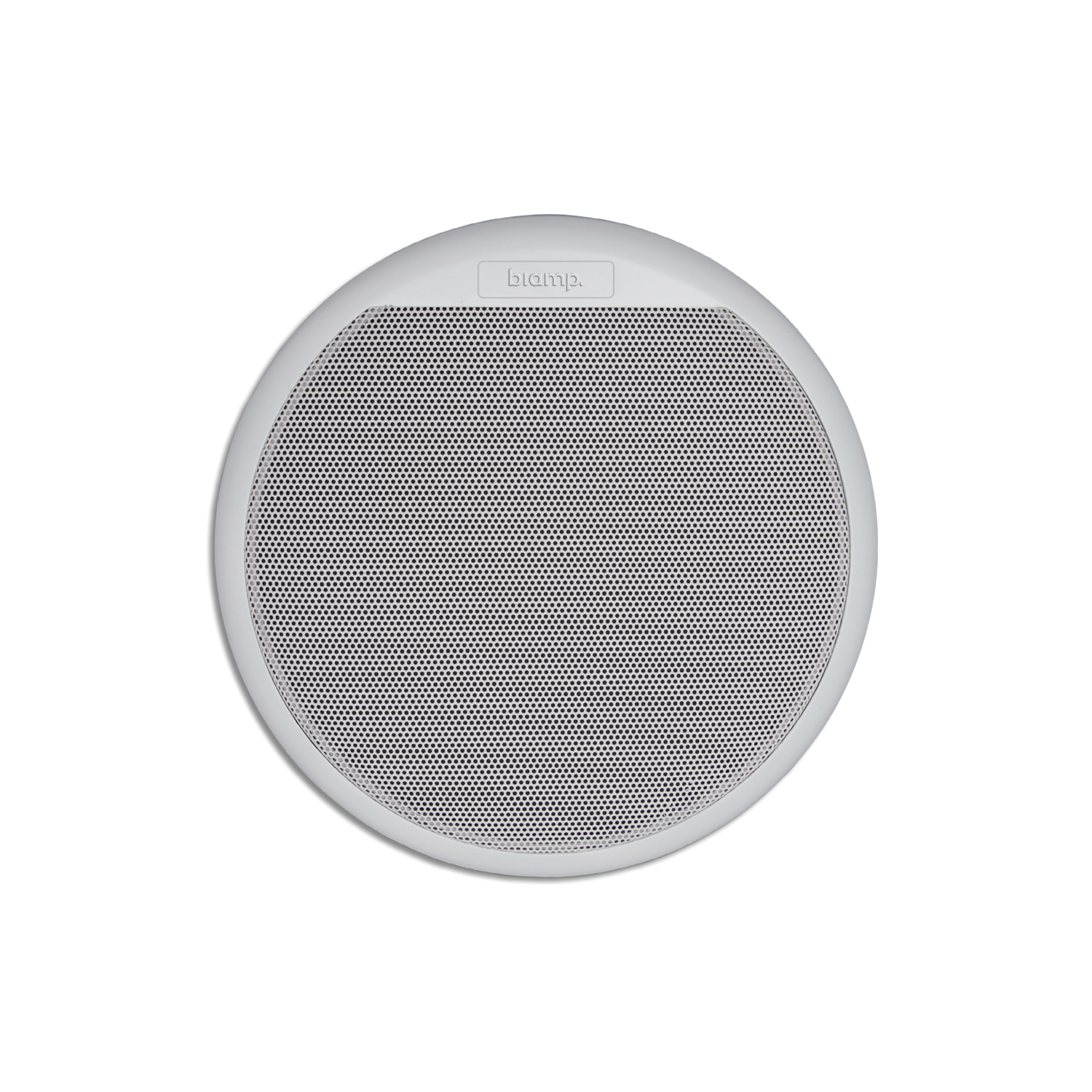

The Biamp CMAR5-W is a 5-inch two-way marine loudspeaker built for humid, wet, and temperature-extreme environments where standard commercial speakers corrode or fail. Its sealed plastic housing and stainless steel grille resist chlorine and salt water, making this marine loudspeaker a practical choice for covered pools, locker rooms, spas, and sheltered outdoor spaces. As a low-impedance model, it connects directly to an 8-ohm amplifier channel for background music and paging. The white finish blends into most ceilings and walls without additional treatment.

Product Description

The CMAR5-W belongs to Biamp's CMAR marine loudspeaker family, a range engineered specifically for humid environment loudspeaker applications such as swimming pool enclosures, saunas, wellness areas, and covered patios. The enclosure and hardware are corrosion-resistant and rated for continuous operation in conditions up to 95 degrees Celsius, so the speaker holds up in spaces where heat and moisture are constant. The two-way design pairs a woofer with a dedicated tweeter to reproduce clear speech and background music across a wide frequency range.

Because the CMAR5-W is a low-impedance loudspeaker, it wires directly to an 8-ohm amplifier output, which suits smaller zones and short cable runs. For 70V or 100V distributed audio systems that cover larger areas from a single amplifier, integrators should specify the transformer-equipped sibling model. The compact 5-inch format fits tight installation footprints while still delivering usable output for voice paging and music. This white finish is one of two color options in the series and is the common choice for light-colored surfaces. For distributed-audio zones, see the CMAR5T-W 70V/100V model, and browse the full Biamp collection for matching amplifiers and larger CMAR models.

Key Features

• Marine-Grade Construction — The sealed plastic housing and stainless steel grille resist chlorine and salt water so the speaker survives pool, spa, and coastal installations.
• High-Temperature Rating — The loudspeaker is rated for continuous use in hot, humid environments up to 95 degrees Celsius, including saunas and covered outdoor areas.
• Two-Way Design — A dedicated woofer and tweeter reproduce clear speech and background music across the speaker's full frequency range.
• Low-Impedance Operation — The 8-ohm design connects directly to a standard amplifier channel for straightforward zoning in smaller spaces.
• White Finish — The white housing and grille blend into light-colored ceilings and walls without additional painting.

Technical Specifications

Specifications sourced from Biamp CMAR5-W product documentation. Confirm detailed specifications against current Biamp documentation.
