Biamp 910-01541 CM20DT
Product Overview

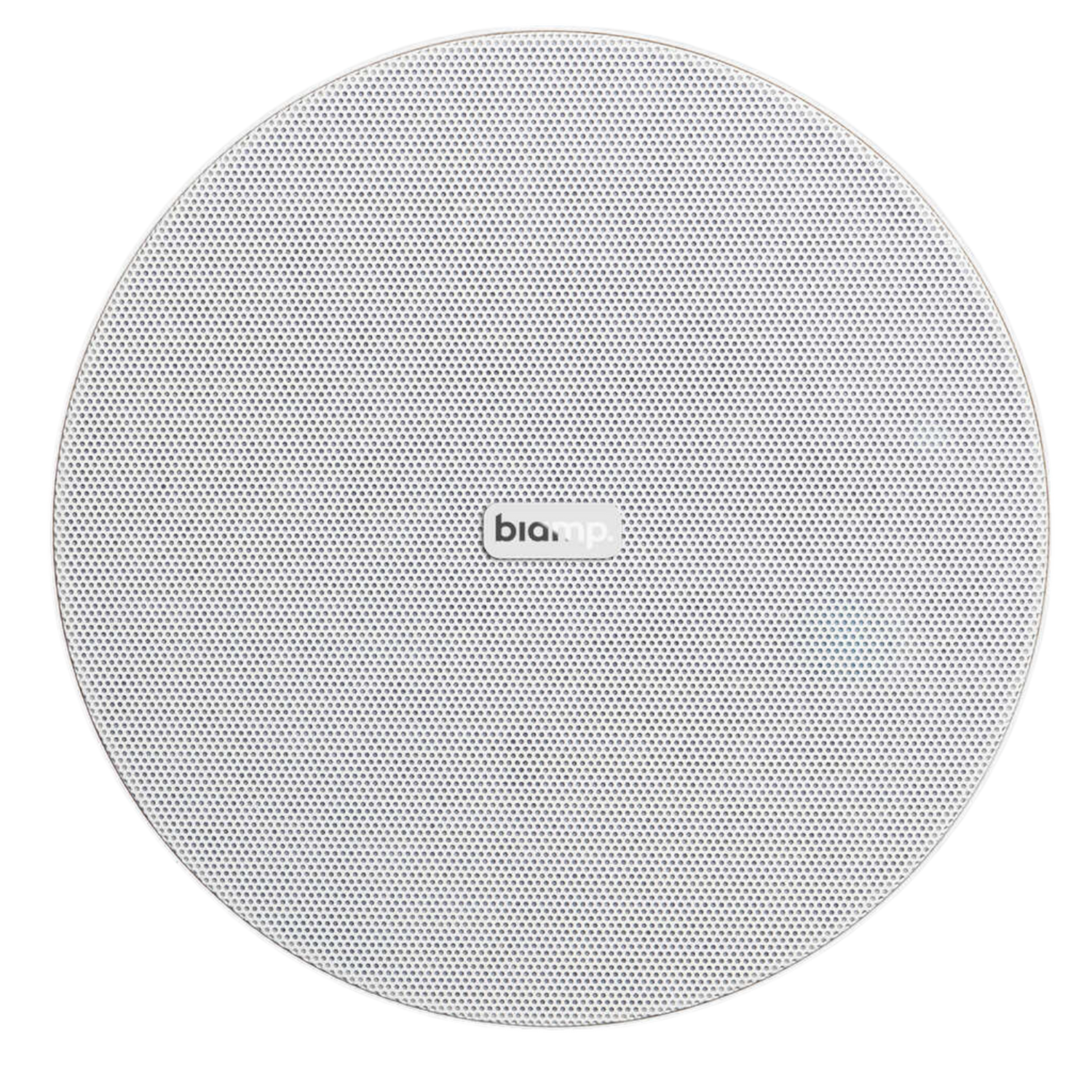

The Biamp CM20DT is a 6.5-inch two-way thin-edge ceiling loudspeaker designed for interiors that call for a low-profile, paintable design grille. It combines even two-way coverage with a minimal bezel that blends into finished ceilings in retail, hospitality, and corporate spaces. The CM20DT operates in 16-ohm or 70V/100V modes, giving integrators flexibility across distributed audio system designs. It is part of the Biamp Commercial (CM) ceiling loudspeaker family.
Product Description
The Biamp CM20DT thin-edge ceiling speaker delivers background music and paging with a design-first appearance for architectural interiors. Its 6.5-inch two-way driver provides balanced full-range sound, while the thin-edge design grille keeps the loudspeaker visually discreet. A high-quality 70V/100V transformer with a color-coded tapping sticker aligns with the cables on the Quick Fit push-terminal connector, making tap selection and wiring fast during commissioning. In 16-ohm use, up to four CM20DT loudspeakers connect in parallel on each channel of a standard 4-ohm amplifier, which suits smaller low-impedance zones. The paintable grille lets integrators match the ceiling finish for a clean result. For an 8-inch thin-edge option, see the CMX20DT; for a standard-bezel 6.5-inch model, see the CM20T. Browse the Biamp collection for matching amplifiers and companion ceiling loudspeakers.
Key Features
- 6.5-inch two-way driver — The polypropylene woofer and 1-inch tweeter deliver balanced background music and clear speech coverage.
- Thin-edge design grille — The low-profile paintable grille blends into finished ceilings for design-sensitive interiors.
- 70V/100V transformer with color-coded taps — A tapping sticker aligned to the Quick Fit connector cables speeds tap selection and wiring.
- 16-ohm parallel operation — Up to four units run in parallel per channel of a standard 4-ohm amplifier for low-impedance zones.
- Quick Fit push-terminal connector — The push connector reduces installation time and simplifies daisy-chained wiring.
Technical Specifications
| Model / SKU | Biamp CM20DT / 910-01541 |
| Type | 6.5-inch two-way thin-edge ceiling loudspeaker |
| Woofer / tweeter | 6.5 in woofer / 1 in tweeter |
| Frequency response | 60 Hz – 20 kHz |
| Sensitivity (1 W @ 1 m) | 86 dB |
| Max SPL @ 1 m | 104 dB |
| Impedance | 16 Ω (low-Z continuous power 30 W) |
| 70 V taps | 20 / 10 / 5 / 2.5 W |
| 100 V taps | 20 / 10 / 5 W |
| Outside diameter | 210 mm |
| Cutout diameter | 186 mm |
| Depth | 80 mm |
| Grille material | Steel |
| IP rating | IP50 |
| Weight | 1.24 kg |
| Colour | White (RAL9010) |
Specifications sourced from Biamp product documentation (biamp.com / downloads.biamp.com). Confirm detailed specifications against current Biamp documentation.
