Biamp 910-00670 D-ALINP
Product Overview

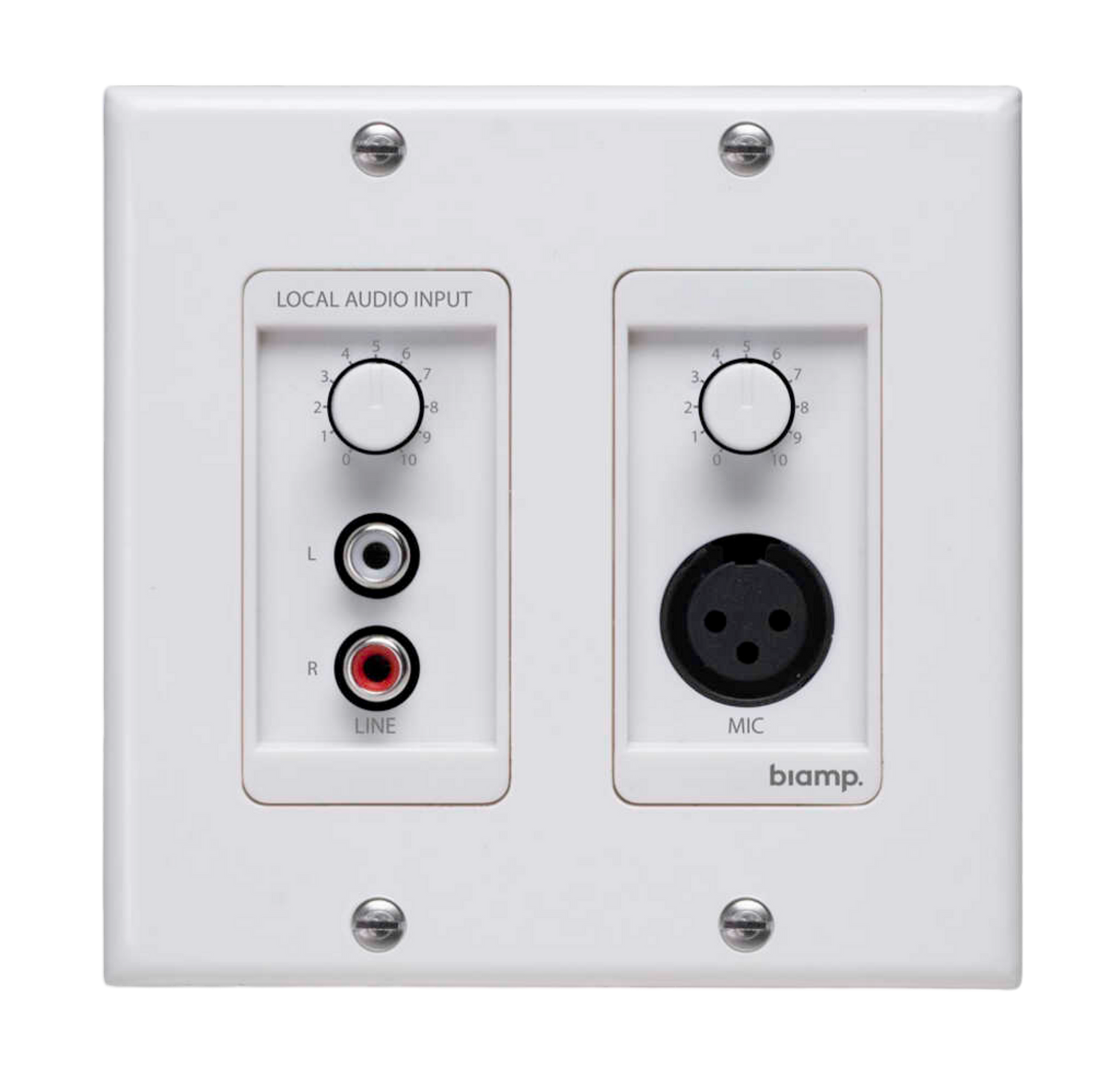

The Biamp D-ALINP is an active local input wall panel in Decora style that lets users connect a music source and a dynamic microphone directly at the wall. It provides individual volume control for line and mic inputs, making it a practical local input control for classrooms, meeting rooms, and multi-purpose spaces. The panel fits any standard Decora in-wall box for clean commercial AV installation. It is powered by phantom power from the connected mixing amplifier or matrix.
Product Description
The D-ALINP simplifies room use by giving presenters a plug-and-play local input at the wall instead of routing sources back to a rack. A stereo line input is summed to mono internally for music playback, while a balanced XLR microphone input handles a dynamic mic; both have their own volume controls and are automatically mixed so only one input is used at the pre-amplifier or mixing amplifier. A built-in mic pre-amplifier and high-quality input transformer help avoid ground loops for clean audio over cable runs up to 600 m. The panel operates on 24–48 V phantom power, so it works with any compatible Apart mixing amplifier, matrix, or pre-amplifier that supplies at least 24 V phantom power. Typical deployments include classrooms where each session brings a different presenter, meeting rooms with regular presentations, and multi-function rooms, bars, and banquet spaces. The XLR input does not supply phantom power to the microphone. Browse the full Biamp collection for compatible Apart mixing amplifiers and matrices.
Key Features
- Local Mic and Line Input — The panel accepts a balanced dynamic microphone and an unbalanced stereo line source, each with independent volume control.
- Automatic Internal Mixing — Line and microphone signals are mixed to a single output so only one input is used at the amplifier or matrix.
- Ground-Loop Isolation — A built-in mic pre-amplifier and input transformer help prevent ground loops for clean audio on long cable runs.
- Phantom Powered — The panel draws 24–48 V phantom power from a compatible amplifier or matrix, requiring no local power supply.
- Decora-Compatible Install — The panel fits any standard Decora in-wall box for straightforward integration into finished walls.
Technical Specifications
| Model / SKU | D-ALINP / 910-00670 |
| Inputs | Balanced mic (XLR) & unbalanced stereo line (summed to mono) |
| Frequency Range | Mic: 150 Hz–20 kHz; Line: 50 Hz–20 kHz |
| Nominal Output Level | 1 V balanced |
| Sensitivity | Line: 370 mV; Mic: 16 mV |
| Input Impedance | Mic: 4 kΩ; Line: 8.5 kΩ |
| Signal-to-Noise | > 86 dB |
| THD | < 0.05% |
| Connector | Euroblock 3-pole |
| Power | Phantom power (24–48 V), < 0.1 W |
| Max Cable Length | 600 m |
| Dimensions (H x W x D) | 115 x 116 x 38 mm |
| Net Weight | 0.16 kg |
Specifications sourced from the Biamp (Apart) D-ALINP data sheet. Confirm detailed specifications against current Biamp documentation.
