Biamp 910-00669 D-DIWAC
Product Overview

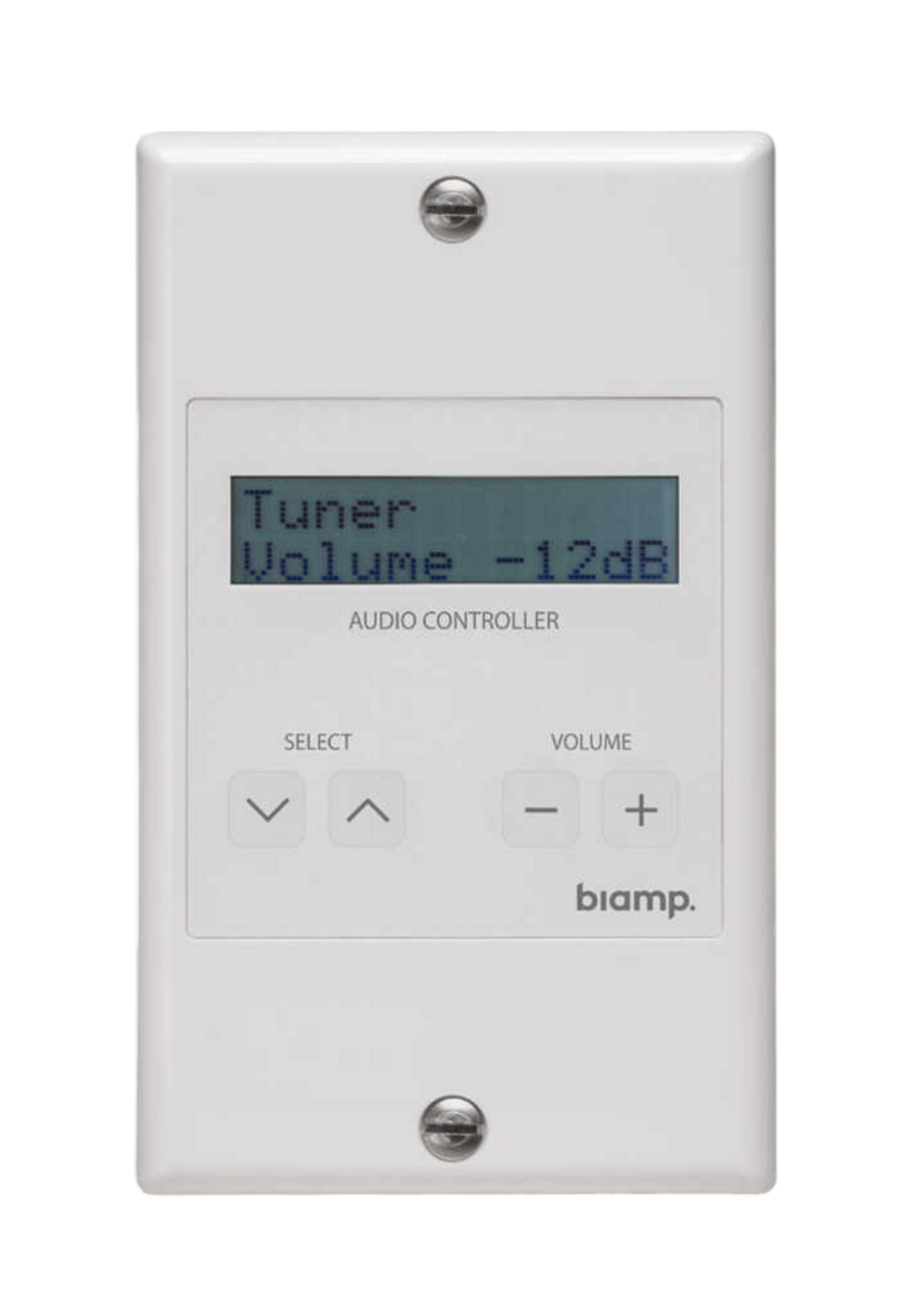

The Biamp D-DIWAC is a digital LCD wall control panel in Decora style for source selection and volume adjustment in distributed audio systems. It is purpose-built to control the Apart AUDIOCONTROL12.8 and AUDIOSYSTEM8.8 matrix mixers on a per-room basis. The backlit two-line LCD confirms selections at the wall, making it a clean local control interface for commercial spaces. It connects over a simple two-wire cable run up to 580 m.
Product Description
The D-DIWAC gives room occupants straightforward local control of a zoned audio system without exposing rack equipment. Configured with source-select and volume buttons, it lets users choose an audio source and set level for their room while the central matrix mixer handles routing. The two-line, 12-character LCD includes a timed white backlight so the display stays readable and then dims to remain unobtrusive. Programmable functions and hardwired addressing let integrators assign each panel to a specific zone during commissioning, which suits multi-room venues such as restaurants, retail, and hospitality where each area needs independent source and volume control. Wiring uses a Euroblock 2-pole connector with support for cable runs up to 580 m, allowing panels to be placed far from the equipment rack. The D-DIWAC is designed to work with the AUDIOCONTROL12.8 and AUDIOSYSTEM8.8 platforms. Browse the full Biamp collection for compatible Apart matrix mixers and control accessories.
Key Features
- Source Select and Volume Control — Dedicated buttons let room occupants choose an audio source and adjust level locally without accessing the rack.
- Backlit LCD Display — A two-line, 12-character LCD with a timed white backlight confirms the active source and level at the wall.
- Matrix Integration — The panel is built to control the Apart AUDIOCONTROL12.8 and AUDIOSYSTEM8.8 on a per-room basis.
- Zone Addressing — Programmable functions and hardwired addressing let integrators assign each panel to a specific zone during commissioning.
- Long Cable Runs — A Euroblock 2-pole connection supports cable runs up to 580 m for flexible panel placement.
Technical Specifications
| Model / SKU | D-DIWAC / 910-00669 |
| Type | Digital wall control, Decora style |
| Functions | Source select and volume adjustment |
| Display | 2-line, 12-character LCD with timed white backlight |
| Compatibility | AUDIOCONTROL12.8, AUDIOSYSTEM8.8 |
| Connector | Euroblock 2-pole |
| Max Cable Length | 580 m |
| Addressing | Hardwired, programmable |
Specifications sourced from the Biamp (Apart) D-DIWAC data sheet. Confirm detailed specifications against current Biamp documentation.
