Biamp 910-00668 D-VOL60

Product Overview

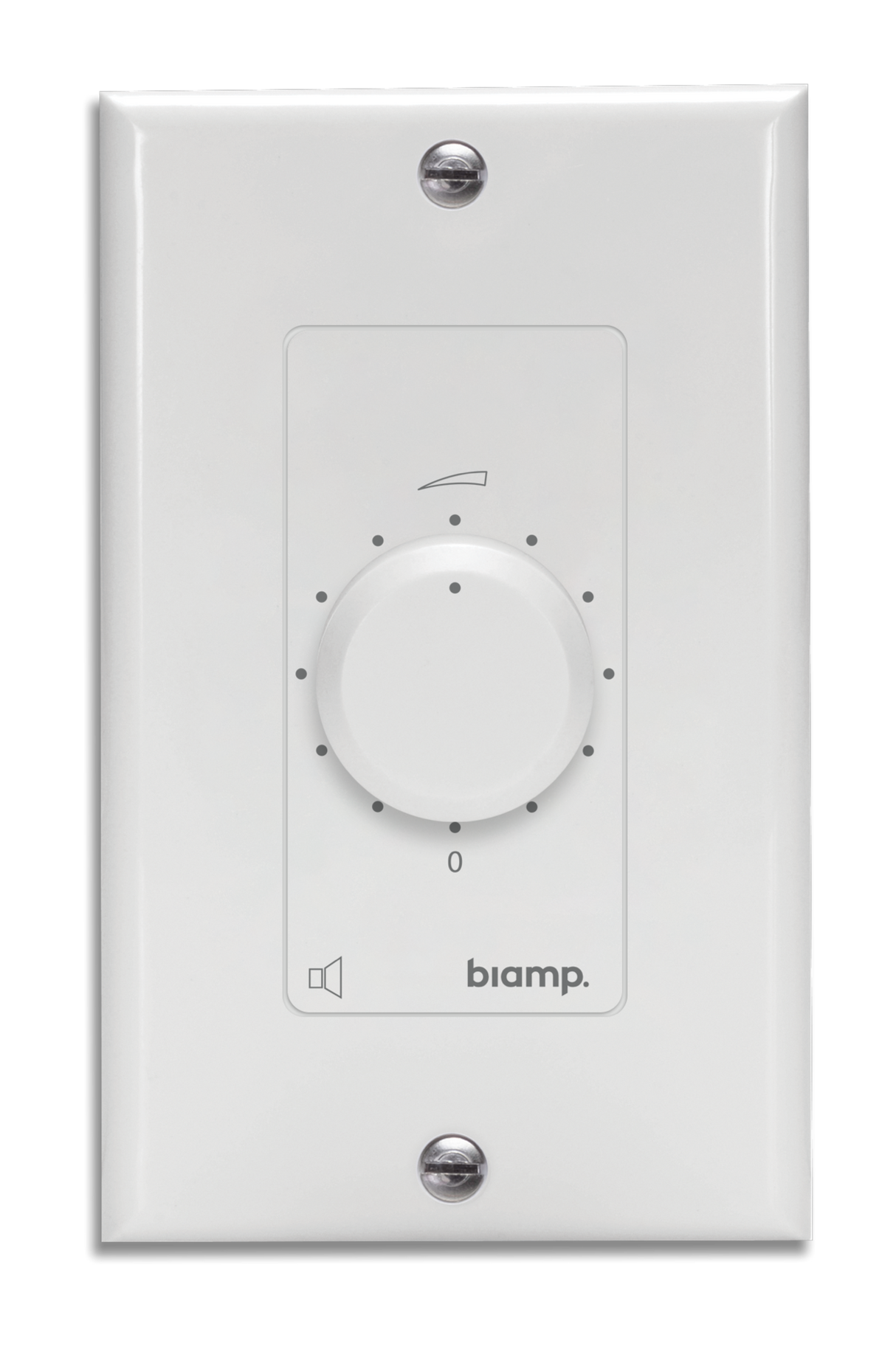

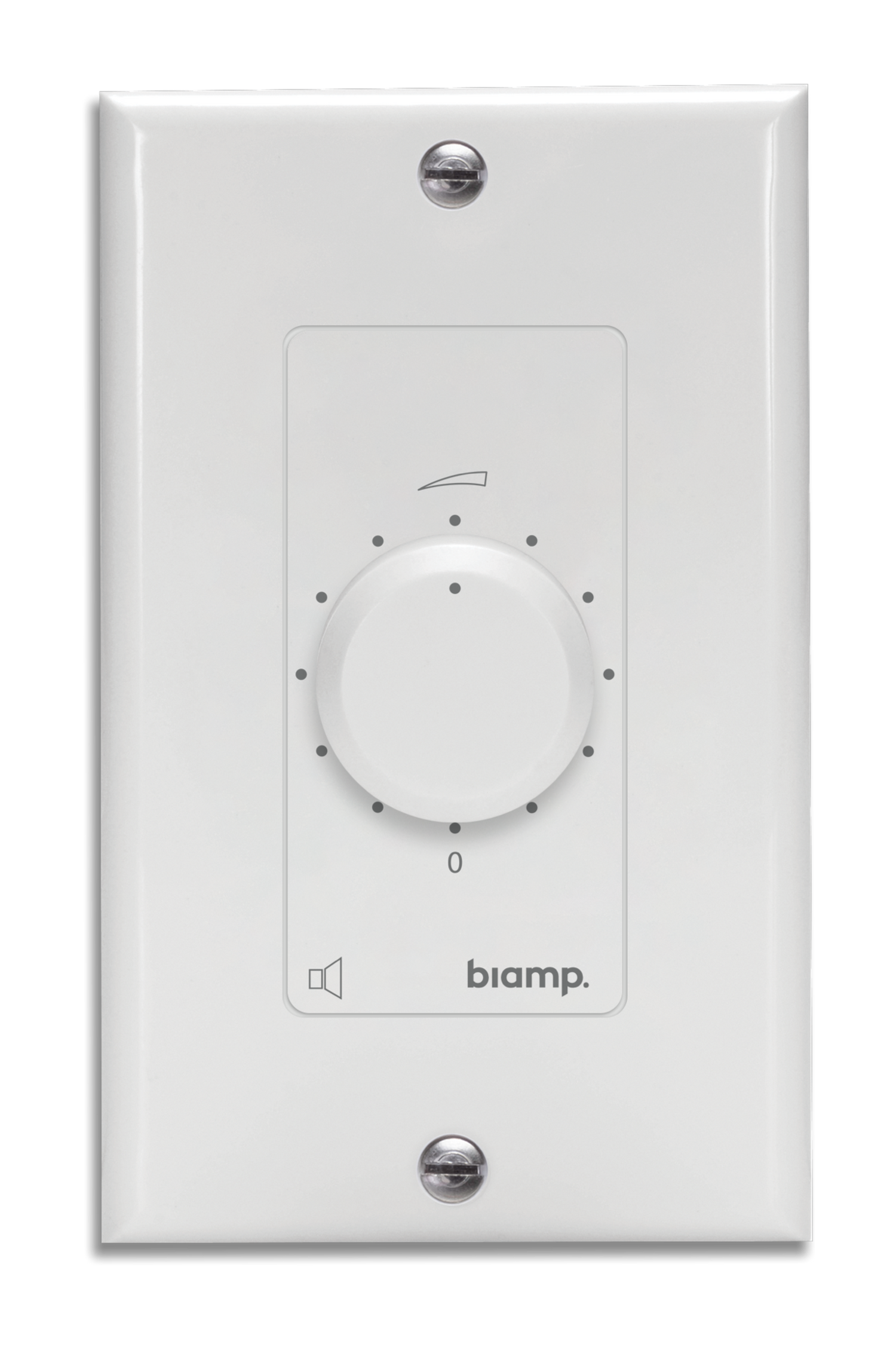

The Biamp D-VOL60 is a 70V volume control for distributed commercial audio systems, styled to fit a standard Decora wall plate. It lets staff adjust the level of a paging or background-music zone locally without touching the amplifier, handling up to 60 watts of 70V line power. Built on a universal chassis with a 24V priority relay, this Decora-style volume control keeps announcements audible even when a zone is turned down, making it a practical choice for retail, hospitality, and commercial paging installations.

Product Description

The D-VOL60 attenuates a 70V loudspeaker line in 11 discrete steps plus a full-off position, giving predictable, repeatable level control from a wall location. It is rated to pass up to 60 watts on a 70V distributed line, sizing it for small zones such as a single room or a group of ceiling loudspeakers. The unit connects through a 6-pole euroblock connector and accepts conductors up to 2.5 mm2, which simplifies field wiring for AV integrators. Its universal chassis mounts by screw into any Decora-style box for a flush, finished appearance.

The built-in 24V priority relay is the defining feature for paging and life-safety use. When an amplifier with a 24V priority output sends its signal, the relay closes and passes the announcement at full level even if the local control is set to off. This lets a facility guarantee that emergency and evacuation messages reach every zone regardless of local volume settings. For larger 70V zones that draw more power, the higher-rated D-VOL120 is available, and the full lineup appears in the Biamp collection.

Key Features

• 70V Line Compatibility — The control operates on 70V distributed audio lines used throughout commercial paging and background-music systems.
• 60-Watt Power Rating — It handles up to 60 watts of line power, sizing it for small single-room or ceiling-loudspeaker zones.
• 11-Step Attenuation — Level is set in 11 discrete steps plus a full-off position for repeatable, predictable adjustment.
• 24V Priority Relay — A built-in relay passes priority announcements at full level even when the local control is turned off, supporting paging and evacuation messages.
• Euroblock Wiring — A 6-pole euroblock connector accepting conductors up to 2.5 mm2 simplifies field termination.
• Decora-Style Mounting — The universal chassis screw-mounts into any Decora box for a flush, finished in-wall appearance.

Technical Specifications

Specifications sourced from the Biamp (APART) D-VOL60 data sheet. Confirm detailed specifications against current Biamp documentation.
