Biamp 910-00663 MICPAT-2
Biamp 910-00663 MICPAT-2 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp 910-00663 MICPAT-2
Product Overview

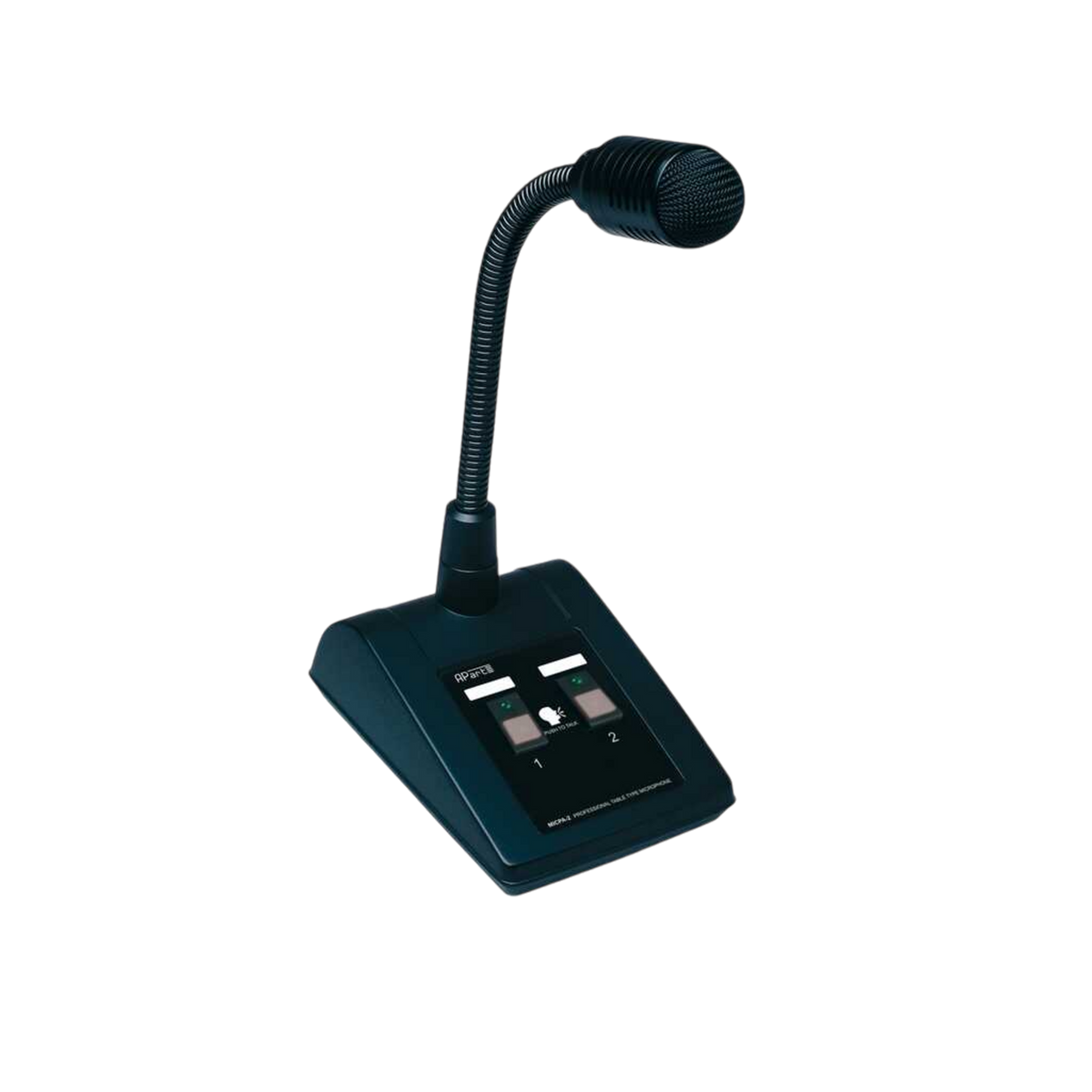

The Biamp MICPAT-2 is a selective 2-zone paging microphone built for live announcements in commercial audio and distributed paging systems. It combines a flexible gooseneck, a unidirectional dynamic capsule, and two push-to-talk buttons so an operator can page zone 1, zone 2, or both zones at once. This paging station is designed for use with Biamp/Apart commercial amplifiers such as the CONCEPT1(T) and MA247(MR). Its solid aluminum base and clear per-zone LED indication make it a practical desktop paging microphone for retail, hospitality, and facility announcements.
Product Description
The MICPAT-2 gives facilities a straightforward way to make targeted zone pages without a full paging matrix. Each of the two push-to-talk buttons routes the microphone to a separate paging contact, and an integrated LED confirms which zone is live. The gooseneck positions the unidirectional dynamic capsule close to the talker to reject room noise, and the balanced microphone-level output keeps signal clean over the 5 m attached cable. Because the microphone presents a 600 ohm balanced output and separate paging contacts, integrators wire it directly into compatible mixer-amplifiers during AV system integration. The unit is intended for commercial paging deployments rather than conferencing. Pair it with distributed loudspeakers such as the Biamp H10-G horn loudspeaker for voice paging coverage, and browse related commercial audio hardware in the Biamp collection.
Key Features
- Selective 2-Zone Paging — Two push-to-talk buttons let an operator page zone 1, zone 2, or both zones simultaneously.
- Unidirectional Gooseneck — A flexible gooseneck with a unidirectional dynamic capsule keeps pickup focused on the talker and rejects ambient noise.
- Per-Zone LED Indication — Clear LEDs in the solid aluminum base confirm which zone is currently active.
- Balanced Output — A 600 ohm balanced microphone-level output with separate paging contacts wires directly into compatible mixer-amplifiers.
- Integration Ready — Designed for use with the CONCEPT1(T) and MA247(MR) commercial amplifiers via its attached 5 m cable.
Technical Specifications
| Model / SKU | MICPAT-2 (910-00663) |
| Polar Pattern | Unidirectional |
| Frequency Range | 80 Hz – 12 kHz |
| Output Impedance | 600 ohm balanced |
| Nominal Output Level | 275 mV balanced |
| Zones / Buttons | 2 zones / 2 push-to-talk |
| Connector / Cable | Open wire; 2 core + 2 core screened, 5 m |
| Mic Stem Length | 310 mm |
| Dimensions (W × D × H) | 125 × 175 × 55 mm |
| Net Weight | 0.92 kg |
Specifications sourced from the Biamp/Apart MICPAT-2 data sheet. Confirm detailed specifications against current Biamp documentation.
