Biamp 910-00337 DC220T-M
Biamp 910-00337 DC220T-M is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp 910-00337 DC220T-M
Product Overview

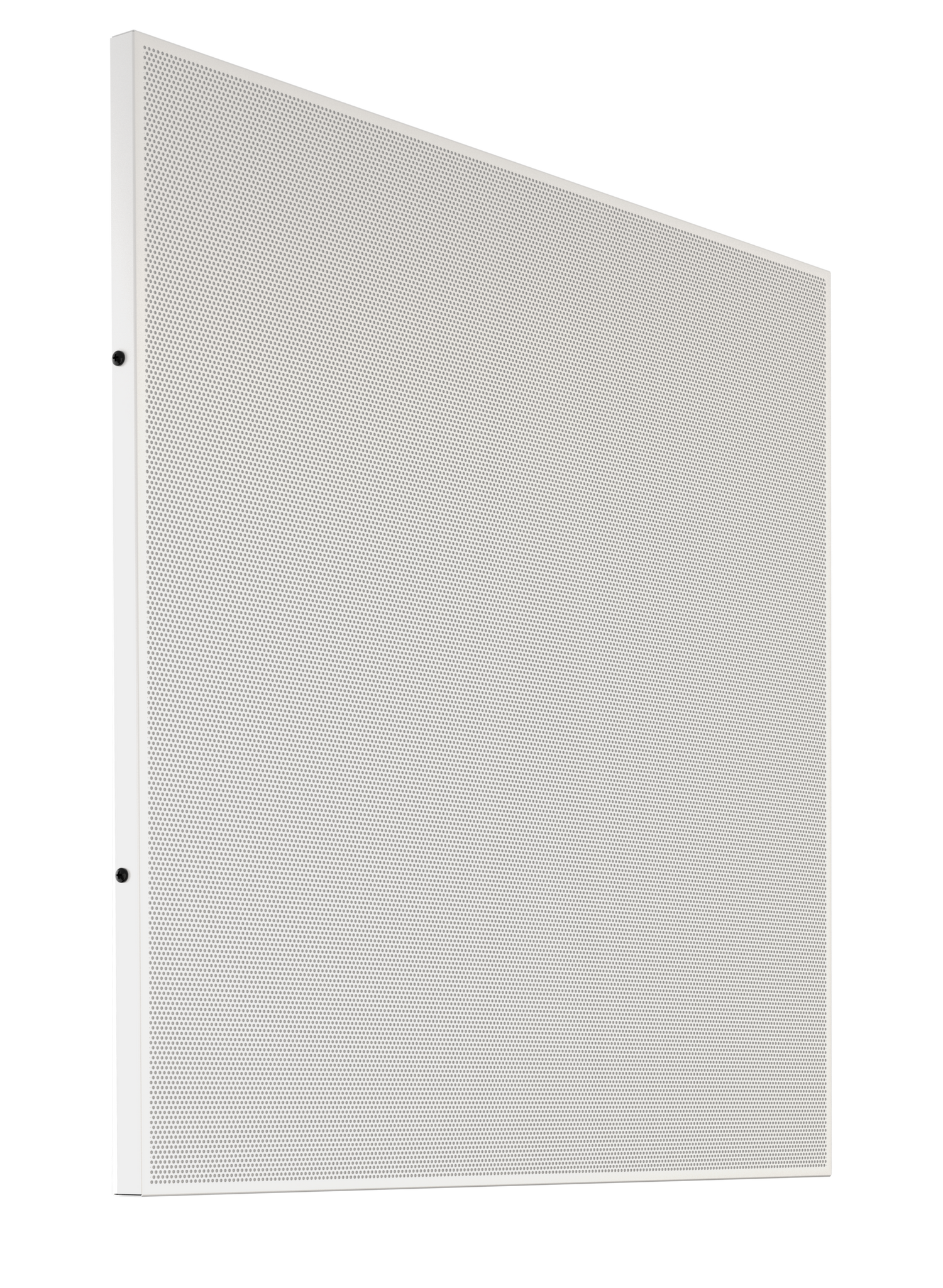

The Biamp DC220T-M is a full-range 6.5-inch drop-in ceiling tile loudspeaker sized for metric 600 mm x 600 mm ceiling grids. It drops directly into a standard suspended ceiling for fast commercial AV installation of paging and background music. The unit runs on 70V/100V distributed lines or 8-ohm low impedance and ships in pairs. It is UL1480A and UL2043 rated for use in plenum air-handling spaces.
Product Description
The DC220T-M replaces a full ceiling tile in a 600 mm grid, giving integrators a quick drop-in ceiling loudspeaker for offices, retail, and public spaces without cutting round holes. Its 165 mm (6.5") transducer delivers a 100 Hz to 18.5 kHz operating range with a 130° conical coverage pattern for even distribution across a room. A 10-watt high-performance transformer supports 70.7V or 100V distributed systems, and an 8-ohm low-impedance setting (9 V input) is available for local runs. The baffle is UL 94V-0 rated ABS with a powder-coated perforated steel grille in RAL 9016 white to blend with standard ceilings. On-axis sensitivity is 93 dB at 2.83 V, giving useful output for speech intelligibility and background music. Because DC220T-M loudspeakers ship in pairs, they suit distributed layouts across a floor plate. It is UL1480A and UL2043 certified for installation in air-handling spaces. Browse the full Biamp collection, or add the Biamp SPA-SCC100 safety cable kit for secondary support.
Key Features
- Drop-In Tile Format — The loudspeaker replaces a full tile in a 600 mm x 600 mm grid for fast installation without cutting the ceiling.
- 70V/100V and Low-Impedance Operation — A 10-watt transformer supports 70.7V and 100V distributed lines, with an 8-ohm setting for local runs.
- Even Coverage — A 130° conical pattern and 6.5" transducer provide consistent coverage for speech and background music.
- Plenum Rated — UL1480A and UL2043 certification supports installation in air-handling ceiling spaces.
- Commercial-Grade Construction — A UL 94V-0 ABS baffle and powder-coated steel grille in RAL 9016 white suit standard commercial ceilings.
Technical Specifications
| Model / SKU | DC220T-M / 910-00337 (sold in pairs) |
| Type | Full-range 6.5" drop-in ceiling tile loudspeaker |
| Transducer | 165 mm (6.5") |
| Operating Range | 100 Hz to 18.5 kHz |
| Coverage Pattern | 130° conical |
| Sensitivity | 93 dB (2.83 V, 1 m, on-axis) |
| Transformer Power | 10 W, 70.7V / 100V |
| Low-Impedance Setting | 8 Ω (9 V input) |
| Grid Size | 600 mm x 600 mm |
| Construction | UL 94V-0 ABS baffle; powder-coated steel grille, RAL 9016 white |
| Certifications | UL1480A, UL2043 |
Specifications sourced from Biamp DC220T-M A&E specifications and data sheet (2023). Confirm detailed specifications against current Biamp documentation.
