Biamp 910-00313 CM10TB White
Product Overview

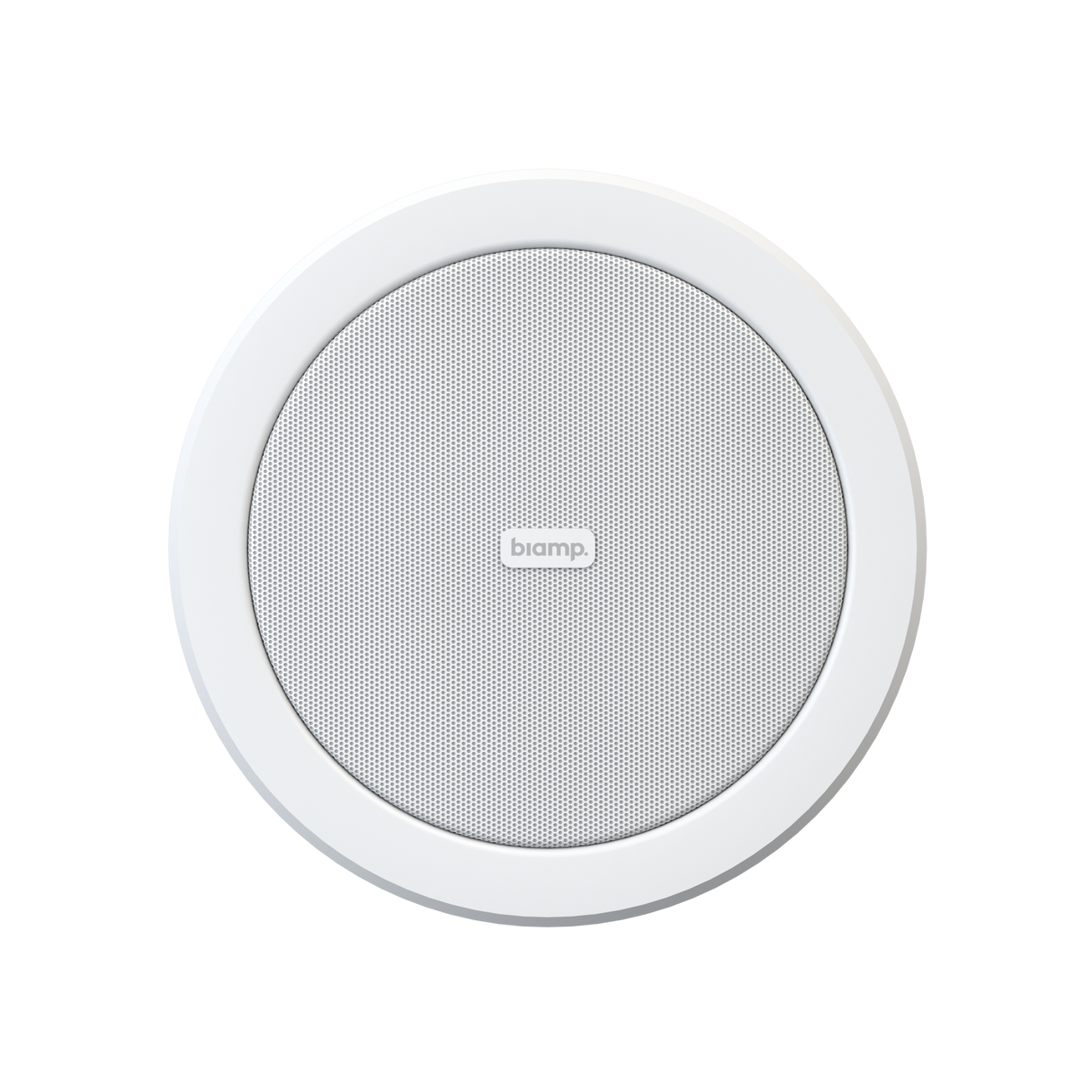

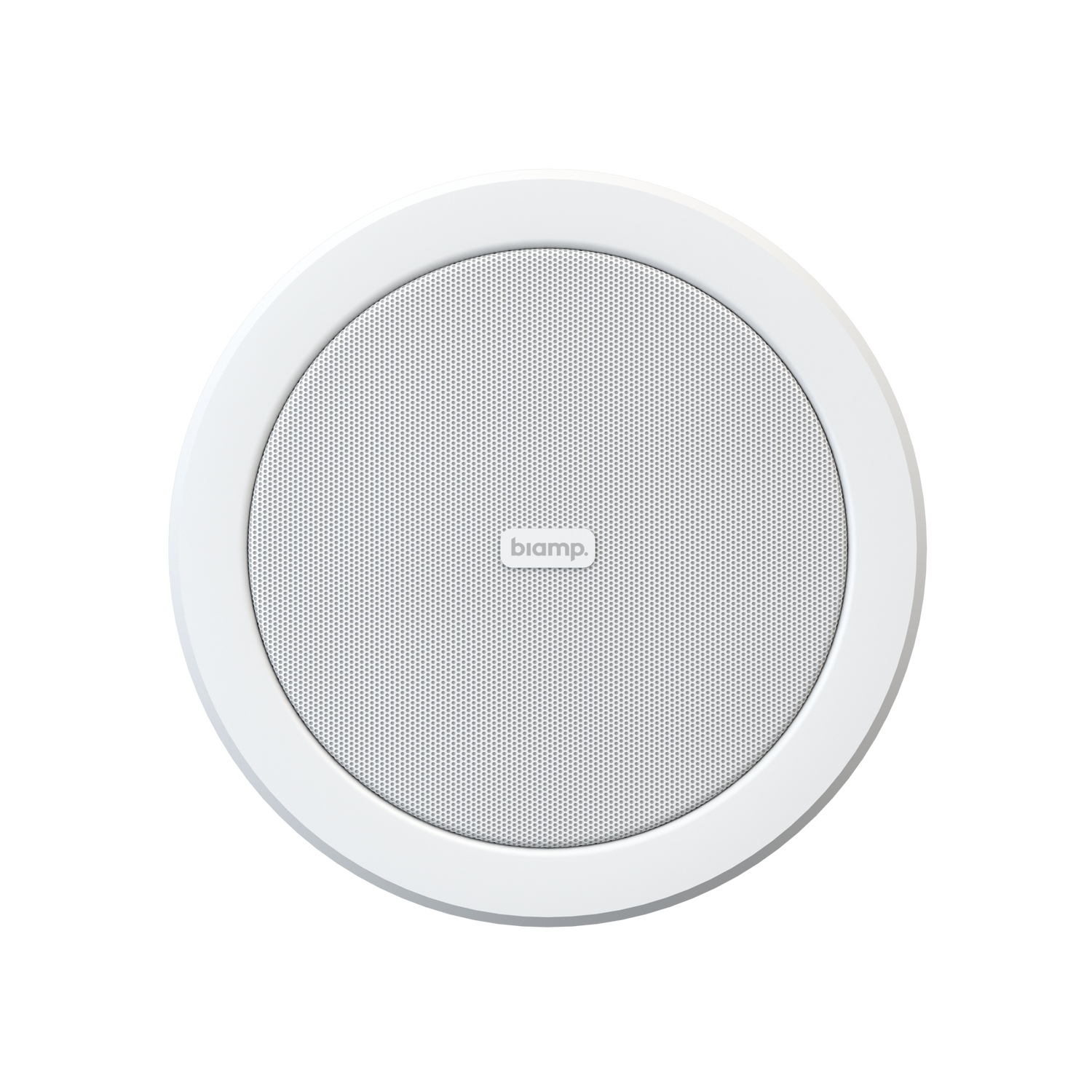

The Biamp CM10TB is a 5.5-inch full-range in-ceiling loudspeaker built for high-quality paging and background music in commercial spaces. It delivers high sensitivity and a wide coverage pattern from a low-profile enclosure, making it well suited to schools, hospitals, transportation hubs, and retail. The CM10TB supports low-impedance or 70V/100V operation and is designed for use with Biamp Vocia paging systems. Its plenum-rated construction meets air-handling wiring requirements for demanding commercial installations.
Product Description
The Biamp CM10TB commercial ceiling speaker is engineered for consistent, intelligible coverage in distributed audio systems. Its 5.5-inch full-range paper driver produces sensitivity comparable to many 8-inch competitors, and a 145-degree conical coverage pattern spreads sound evenly across the listening area. A front-face wattage selector lets installers set 70V/100V tap levels before the grille goes on, which speeds commissioning during 70V/100V ceiling speaker deployments. The preassembled back-can construction drops into a ceiling tile or drywall ceiling quickly, and conduit knock-outs on the input cover meet plenum air-space handling requirements. The included euroblock terminal connects under a cover that conforms to City of Chicago plenum wiring rules, and optional new-construction brackets and safety cables support code-compliant mounting. The CM10TB is ETL listed to UL1480, UL2043, and CSA62368-1 and is suitable for use in air-handling spaces per NFPA 70 and NFPA 90. It is designed to reach full rated performance with a Biamp DSP preset and a high-pass filter. For larger rooms, pair the CM10TB with companion loudspeakers from the Biamp collection, including the CMSUB8 in-ceiling subwoofer.
Key Features
- 5.5-inch full-range driver — The paper full-range transducer delivers high sensitivity and clear speech reproduction from a compact ceiling footprint.
- Plenum-rated construction — Conduit knock-outs and a compliant terminal cover meet air-handling space wiring requirements for commercial buildings.
- 70V/100V or low-impedance operation — A front-face wattage selector sets transformer taps quickly for constant-voltage or low-impedance systems.
- Wide 145-degree coverage — The conical coverage pattern allows fewer speakers to cover a given area with even sound levels.
- Vocia system compatible — The CM10TB is designed for use with Biamp Vocia paging systems for life-safety and mass-notification audio.
- Code-listed for safety — ETL listing to UL1480, UL2043, and CSA62368-1 supports use in regulated commercial and public spaces.
- Quick back-can installation — The preassembled back can installs into tile or drywall ceilings with included tile rails and a cutout template.
Technical Specifications
| Model / SKU | Biamp CM10TB (White) / 910-00313 |
| Type | 5.5-inch full-range in-ceiling loudspeaker |
| Operating range (-10 dB) | 120 Hz – 20 kHz |
| Nominal beamwidth (H x V) | 145° conical |
| Transducer | 1 x 5.5 in (140 mm) paper full-range driver |
| Sensitivity @ 1 m | 94 dB (2.83 V) / 94 dB (1 W, 8 Ω) |
| Nominal continuous power | 10 W @ 8 Ω |
| Max SPL @ 1 m (processed) | 103 dB continuous / 109 dB peak |
| 70 V taps | 10 / 5 / 2.5 / 1.25 / 0.625 W |
| 100 V taps | 10 / 5 / 2.5 / 1.25 W |
| Compliance | ETL to UL1480, UL2043, CSA62368-1; NFPA 70 / NFPA 90 |
| Dimensions (dia. x depth) | 223 mm x 159 mm |
| Cutout diameter | 193 mm |
| Weight | 2.1 kg (4.6 lb) |
| Grille finish | White (RAL9016) |
Specifications sourced from Biamp product documentation (biamp.com / downloads.biamp.com). Confirm detailed specifications against current Biamp documentation.
