Biamp 910-00152 EasyConnect HDMI4k-30
Product Overview

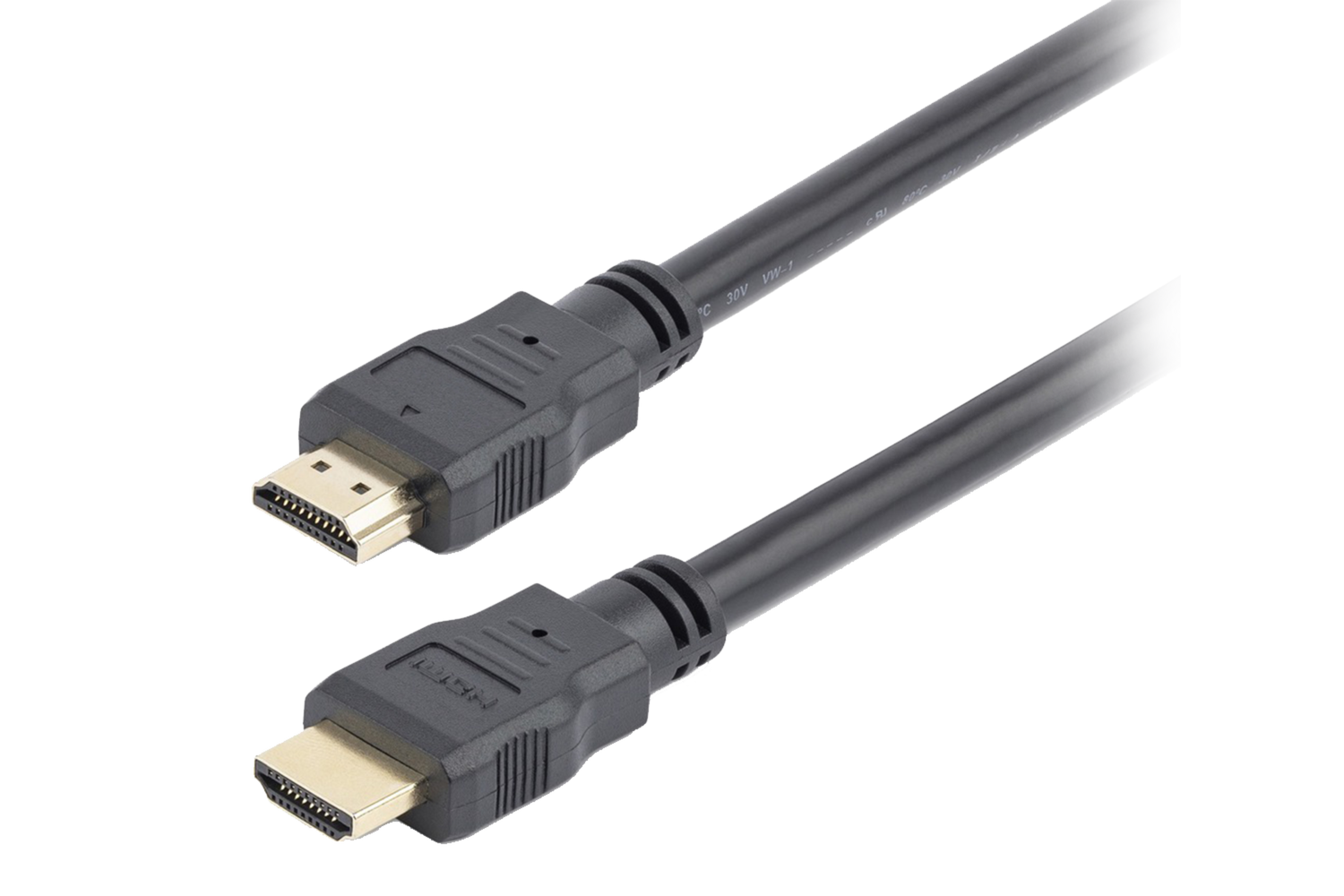

The Biamp EasyConnect HDMI4k-30 is a 30-foot (10 m) active 4K HDMI cable built for reliable long-distance video runs in commercial AV installations. It transmits 4K UHD at 60 Hz with HDR over an HDMI 2.0 signal path and a maximum data rate of 18 Gbps, connecting sources to displays and projectors in conference rooms and presentation spaces. The active hybrid design holds full bandwidth across a distance where passive copper HDMI cables begin to fail. It is part of the Biamp EasyConnect line of professional room-connectivity cables.
Product Description
The EasyConnect HDMI4k-30 is a commercial-grade 4K HDMI cable engineered to move a clean signal 30 feet from a source or rack to a room display. It combines tinned copper conductors with multi-mode optical fibers so the full 18 Gbps HDMI 2.0 bandwidth reaches the screen without dropouts or sparkles. Integrators specify it to feed large-format displays, projectors, and digital signage from a centralized matrix switcher or in-room source. The signal path carries 4K at 60 Hz with HDR10 and HLG, plus CEC and EDID support for display control and handshake reliability. Triple shielding and gold-plated contacts protect signal quality in cable-dense environments. For longer runs, step up to the EasyConnect HDMI4k-50; for shorter in-room runs, use the EasyConnect HDMI4k-15. Browse the full Biamp collection for companion AV connectivity products.
Key Features
- Active Hybrid Design — Tinned copper conductors and multi-mode optical fibers carry the full 18 Gbps signal across the entire 30-foot length.
- 4K60 HDMI 2.0 — The cable supports 4K UHD resolution at 60 Hz with a 600 MHz TMDS clock for high-detail video and presentations.
- HDR Support — HDR10 and HLG compatibility delivers expanded contrast and color for compatible sources and displays.
- CEC and EDID — Consumer electronics control and enhanced display ID support improve device handshaking and system control.
- Triple-Shielded Construction — Foil-plus-double-braid shielding and gold-plated contacts protect signal integrity in cable-dense racks and pathways.
- HDCP 2.2 Compliant — The cable passes protected 4K content and remains backward compatible with earlier HDCP versions.
Technical Specifications
| Model / SKU | EasyConnect HDMI4k-30 (910-00152) |
| HDMI Version | 2.0 |
| Maximum Resolution | 4K UHD (3840 x 2160) at 60 Hz |
| Maximum Data Rate | 18 Gbps |
| TMDS Clock | 600 MHz |
| HDR Support | HDR10, HLG |
| HDCP Version | 2.2 (backward compatible) |
| Audio | ARC; up to 32 channels PCM; Dolby (incl. Atmos), DTS (incl. DTS:X) |
| Connector Type | HDMI Type A (male-to-male) |
| Conductor | Tinned copper & multi-mode optical fibers |
| Shielding | Triple shielded (foil + double braid) |
| Cable Length | 30 ft (10 m) |
| Cable Outer Diameter | 4.5 mm |
| Operating Temperature | 0 to 50 °C |
| Safety Rating | UL-CMX |
| Compliance | RoHS, CE, FCC |
| Warranty | 3 years |
Specifications sourced from the Biamp EasyConnect HDMI4k-30 data sheet. Confirm detailed specifications against current Biamp documentation.
