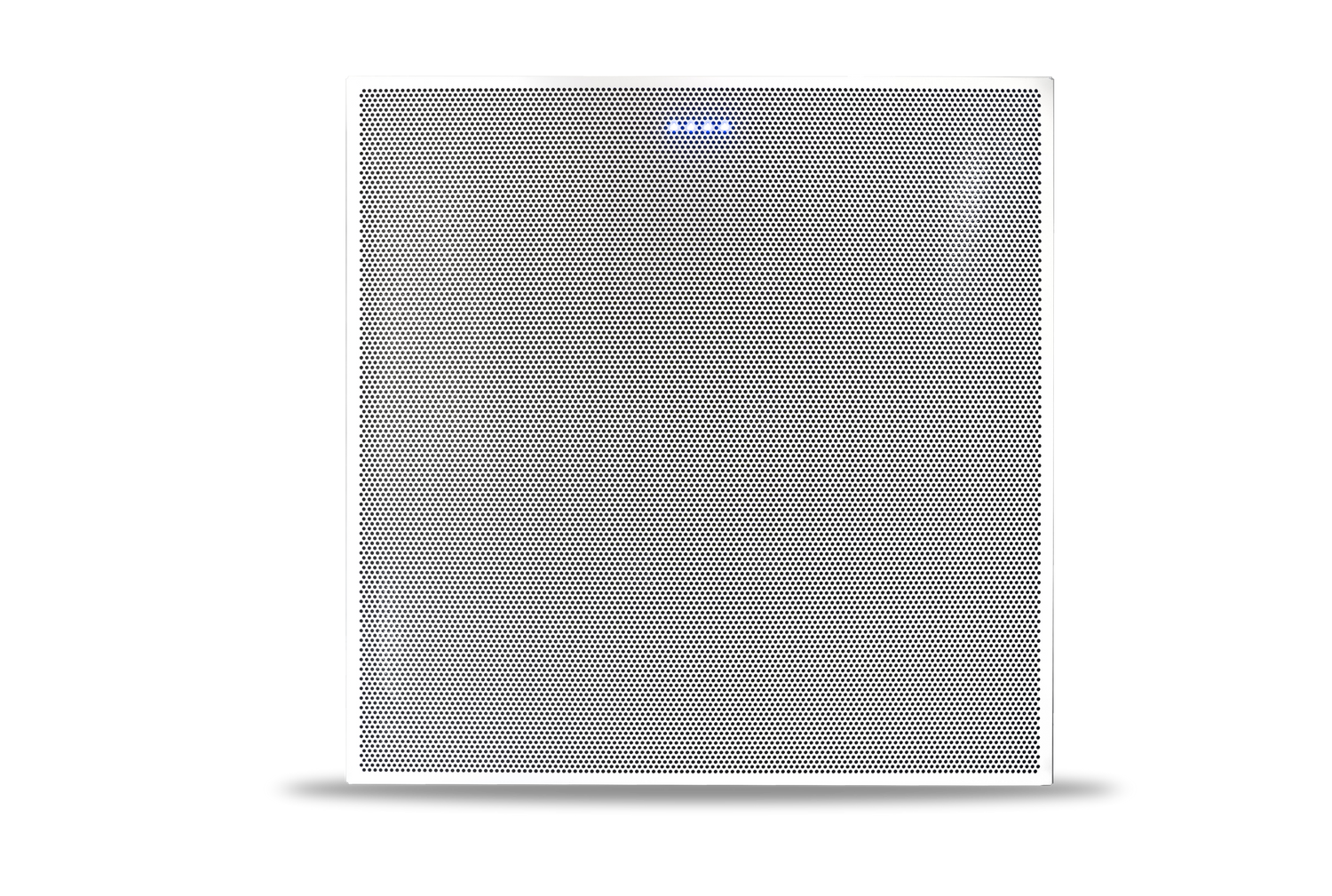

Biamp 910-00010 Biamp BMA 360D-I White

Product Overview

The Biamp BMA 360D-I is the 600 mm ceiling-grid version of Biamp's Dante beamtracking ceiling microphone array, built for conference rooms, boardrooms, and commercial meeting spaces using metric (international) ceiling systems. It provides up to 12 independently directable beams for full-room voice pickup without tabletop microphones, and integrates directly with any Dante-capable Biamp Tesira DSP. An optional built-in amplifier lets a single tile handle both microphone capture and loudspeaker playback. This is the white finish on a 600 mm grid; the standard 24-inch grid model (BMA 360D) is also available.

Product Description

The BMA 360D-I delivers the same beamtracking microphone performance and Dante audio networking as the standard BMA 360D, sized to drop into a 600 mm ceiling grid for international and metric conference room AV installations. Integrators configure the array in Biamp's BMA Console software, placing and steering up to 12 beams from preset circle, rectangle, and semi-circle layouts that scale from huddle rooms to large multi-purpose rooms. Each beam can be delivered to the DSP as an individual Dante channel for per-beam AEC, AGC, noise reduction, and EQ, or the on-board SmartMix can send a single processed channel per acoustic-echo-cancellation channel for simpler rooms. The single RJ-45 interface carries both Dante audio and a separate control connection, so one cable run supports the device. A built-in amplifier, configurable as four channels at 15 W or two bridged channels at 30 W, drives nearby loudspeakers directly from the tile. The array mounts via a VESA hole pattern and supports pole mounting, with dedicated recessed-mount and surface-mount kits available for 600 mm ceilings. An addressable LED indicator, controllable by color and brightness through network command strings, provides mute and status feedback. Browse compatible processors, mounts, and companion microphones in the Biamp collection at Creation Networks. For 600 mm recessed installations, pair it with the BMA 360D-RM-I recessed-mount kit.

Key Features

• 600 mm ceiling-grid fit — The tile is sized for 600 mm (metric) ceiling grids used in international commercial installations.
• Dante audio networking — The array connects natively to any Dante-capable Biamp Tesira DSP, routing beam audio and loudspeaker channels across the existing AV network.
• Up to 12 directable beams — Integrators place and steer as many as twelve beams to cover rooms from small huddle spaces to large conference rooms.
• Beamtracking pickup with flexible processing — Beams can be processed per-beam in the DSP or mixed on-board with SmartMix for simpler deployments.
• Built-in configurable amplifier — The integrated amplifier operates as four channels of 15 W or two bridged channels of 30 W to drive loudspeakers from the ceiling tile.
• Single-cable RJ-45 connection — One RJ-45 interface carries Dante audio plus a separate control connection to reduce ceiling cabling.
• PoE powered — The array runs on PoE+ (30 W) as a microphone only, or PoE++ (up to 90 W) when driving loudspeakers.
• Addressable status LED — Color and brightness are set through network command strings for clear mute and system-state feedback.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Commercial meeting space
• Multi-purpose room
• Training room
• Government space

Technical Specifications

Specifications sourced from Biamp product documentation. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

How does the BMA 360D-I differ from the BMA 360D?
The BMA 360D-I is sized for a 600 mm (metric) ceiling grid, while the standard BMA 360D fits a 24-inch North American grid. Audio performance and features are otherwise the same.

Which processors is it compatible with?
It works with any Dante-capable Biamp Tesira system, including TesiraFORTÉ X and Tesira Server-IO with a DAN-1 card. AVB-only systems can bring it in through a TesiraCONNECT TC-5D.

What are the PoE requirements?
As a microphone only it requires PoE+ (about 30 W). When the built-in amplifier drives loudspeakers, budget PoE++ up to 90 W and use a switch or injector rated accordingly.

Can it drive loudspeakers as well as capture audio?
Yes. The integrated amplifier is configurable as four channels of 15 W or two bridged channels of 30 W, so one tile handles both pickup and playback.

What mounting options are available for 600 mm ceilings?
The array uses a VESA hole pattern for pole mounting, and Biamp offers 600 mm recessed-mount (BMA 360D-RM-I) and surface-mount (BMA 360D-SM-I) kits.

Does it come with a warranty and support?
Biamp products are backed by manufacturer warranty and technical support. Contact Creation Networks for current warranty terms and integration assistance.
