Biamp 901.0317 Tesira SCM-1

Product Overview

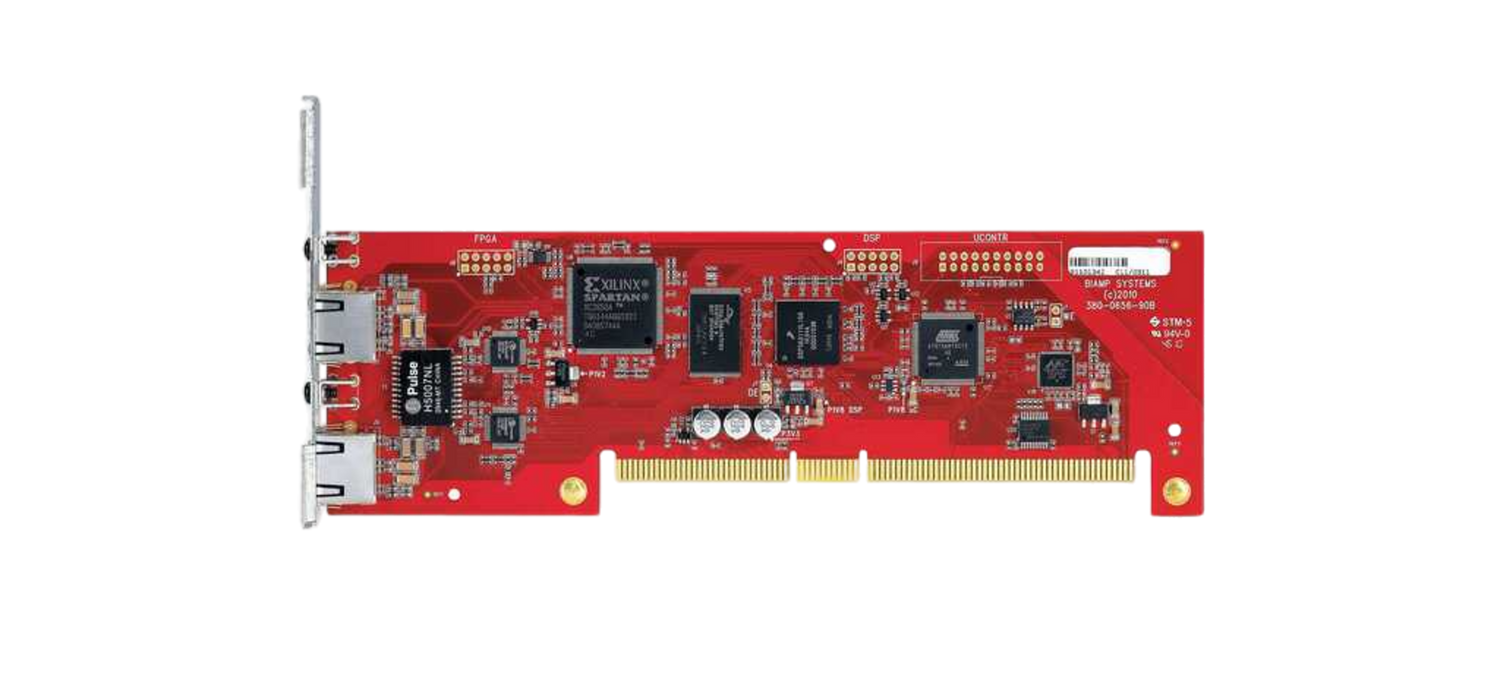

The Biamp Tesira SCM-1 is a modular CobraNet networking card that adds up to 32 x 32 channels of digital audio interconnectivity to a Tesira SERVER or SERVER-IO device. It is the interface integrators specify when a Tesira DSP system must share audio with existing Biamp Audia and Vocia installations or other CobraNet devices. This Tesira CobraNet networking card lets a modern Tesira platform interoperate with legacy commercial audio infrastructure over standard Ethernet. The SCM-1 can be installed at the factory or added in the field.

Product Description

The SCM-1 allows a Tesira system to send and receive digital audio using the CobraNet networking protocol, with each card supporting up to 32 x 32 channels of interconnectivity. It is the practical path for AV system integration projects that must bridge a new Tesira DSP core into an established Audia or Vocia network without re-cabling an entire building. Explicit CobraNet input and output blocks in Tesira software give the system designer direct control over signal routing between the DSP and the CobraNet network. Dual RJ-45 connectors provide primary and secondary network connections. The SCM-1 can operate in conjunction with DAN-1 Dante and AVB-1 cards in the same chassis, so Tesira can bridge audio across CobraNet, Dante, and AVB simultaneously. System configuration and control are handled over Ethernet. The card incorporates AES48-2005 grounding and EMC practices, is RoHS compliant, and carries Biamp's 5-year warranty. Combine it with the Tesira DAN-1 or Tesira AVB-1, or browse the full Biamp collection.

Key Features

• 32 x 32 CobraNet Channels — Each SCM-1 supports up to 32 input and 32 output channels of CobraNet digital audio.
• Audia and Vocia Interoperability — The card lets a Tesira system share audio with Biamp Audia and Vocia systems and other CobraNet devices.
• Dual RJ-45 Network Ports — Primary and secondary RJ-45 connections support redundant or segregated network paths.
• Software-Defined Routing — Explicit CobraNet input and output blocks in Tesira software let designers route signals within the DSP configuration.
• Multi-Protocol Coexistence — The SCM-1 can be installed alongside DAN-1 Dante and AVB-1 cards for simultaneous operation across CobraNet, Dante, and AVB.
• Factory or Field Installation — The card can be ordered pre-installed or added to an existing Tesira SERVER or SERVER-IO in the field.
• 5-Year Warranty — The SCM-1 is covered by Biamp Systems' 5-year warranty.

Typical Applications

• Conference room
• Boardroom
• Auditorium
• Multi-purpose room
• Commercial meeting space
• All-hands room

Technical Specifications

Specifications sourced from the Biamp Tesira SCM-1 datasheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which Tesira devices accept the SCM-1?
The SCM-1 installs in Tesira SERVER and SERVER-IO devices, at the factory or in the field.

How many audio channels does it support?
Each SCM-1 supports up to 32 x 32 channels of CobraNet digital audio.

Can Tesira share audio with older Biamp systems?
Yes. The SCM-1 lets a Tesira system exchange audio with Biamp Audia and Vocia systems and other CobraNet devices.

Can it run alongside Dante or AVB cards?
Yes. It can be combined with DAN-1 and AVB-1 cards in the same chassis for multi-protocol operation.

How is routing configured?
Routing uses explicit CobraNet input and output blocks in Tesira software.

What cabling does the card use?
Dual RJ-45 connectors support standard Ethernet for primary and secondary network connections.

What warranty applies?
Biamp covers the SCM-1 with a 5-year warranty.
