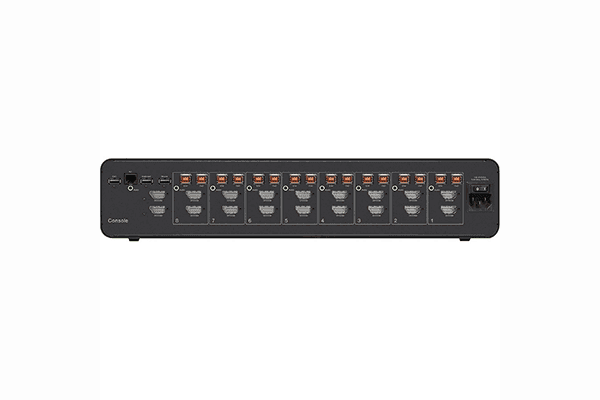

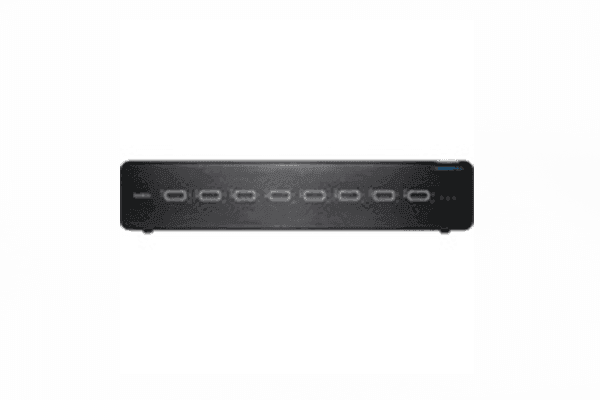

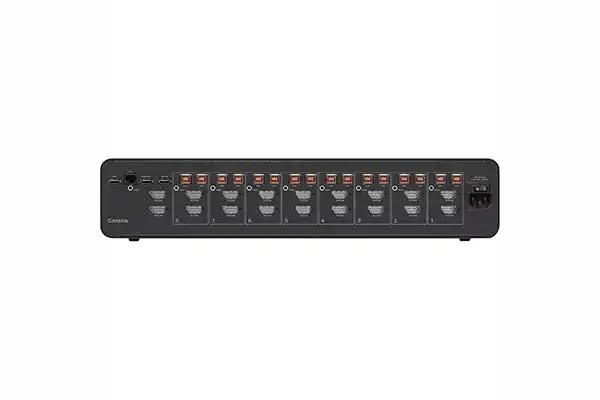

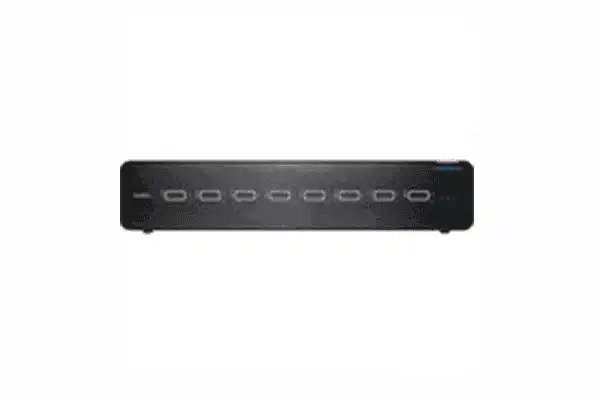

Belkin Universal 2nd Gen Secure KVM Switch – 8-Port Dual Head with CAC Reader

Product Overview

The Belkin Universal 2nd Gen Secure KVM Switch (F1DN208KVM-UN-4) is an 8-port, dual-monitor secure KVM designed for government, military, and enterprise IT environments that require strict isolation between classified network security enclaves. Certified to NIAP Protection Profile for Peripheral Switching Devices version 4.0 (NIAP PP4.0), this TAA-compliant secure KVM switch delivers Common Criteria-validated peripheral sharing across up to eight computers simultaneously. Its integrated Common Access Card (CAC) reader support makes it the primary choice for DoD and federal agency workstations requiring smart card authentication on multi-domain operator stations.

Product Description

The F1DN208KVM-UN-4 addresses the demanding requirements of intelligence community and defense contractor workstations where a single operator must access multiple security domains without risk of data leakage. Optical data diodes and embedded peripheral emulation on every channel maintain strict air-gap isolation between connected computers, even when keyboard, mouse, video, audio, and USB peripherals are actively shared. The 8th-order elliptical audio filter provides advanced protection against ultrasonic attack vectors — a critical feature in sensitive compartmented information facility (SCIF) deployments.

DisplayPort/HDMI combo connectors with internal auto-sensing conversion eliminate the need for external video adapters, allowing the same secure KVM switch to interface with DisplayPort, HDMI, and DVI sources across its eight input channels while supporting up to 4K (3840x2160) at 60Hz per display head. This dual-head configuration supports two independent monitors per operator workstation, enabling side-by-side classification-level awareness without additional hardware. The front panel features configurable color coding for enclave identification, which maps directly to the optional Belkin KVM Remote Control with Integrated Keyboard — reducing operator error in high-stress multi-domain environments.

US-manufactured and TAA compliant, the F1DN208KVM-UN-4 is approved for government procurement and supports flexible deployment: desktop, rack-mount, or under-table installation options accommodate a wide range of secure facility layouts. The always-on, active anti-tamper protection ensures physical security integrity throughout the product's operational life.

Key Features

• NIAP PP4.0 Certified — Common Criteria validation to the latest NIAP Protection Profile for Peripheral Switching Devices, meeting DoD and federal agency security mandates.
• 8-Port, Dual-Monitor Configuration — Supports eight connected computers with two independent video outputs per operator, enabling multi-domain workstations without additional switching hardware.
• Integrated CAC/Smart Card Reader — Built-in Common Access Card reader on each port supports DoD-standard smart card authentication without external CAC hubs or adapters.
• Optical Data Diodes per Channel — Hardware-enforced unidirectional data paths on every channel prevent cross-domain data leakage at the physical level.
• Embedded Peripheral Emulation — Constant keyboard and mouse emulation on all inactive channels prevents timing-based side-channel attacks.
• 8th-Order Elliptical Audio Filter — Protects against ultrasonic data exfiltration attacks through the audio path.
• Universal Video via Combo Connectors — DisplayPort/HDMI combo inputs with internal conversion support DP, HDMI, and DVI sources at up to 4K/60Hz — no external converters required.
• Active Anti-Tamper Protection — Always-on tamper detection triggers product lockdown if physical intrusion is attempted.
• Configurable Enclave Color Coding — Front panel and remote keyboard LEDs display per-channel color codes to prevent classification-level operator errors.
• Flexible Mounting — Desktop, rack-mount, and under-table mounting options with optional Belkin mounting accessories for clean cable management.
• TAA Compliant, US-Manufactured — Fully compliant with the Trade Agreements Act; eligible for GSA Schedule and government contract procurement.
• Universal AC Input — Accepts 120V–230V AC for domestic and international deployment.

Typical Applications

• Government and federal agency SCIF workstations requiring multi-domain access
• Military command and control operator stations with CAC authentication requirements
• Defense contractor secure facilities with NIAP PP4.0 procurement mandates
• Intelligence community multi-level security (MLS) desktop environments
• Secure government AV and data center control rooms

Technical Specifications

Frequently Asked Questions

Is the F1DN208KVM-UN-4 certified to NIAP PP4.0?

Yes. This secure KVM switch is Common Criteria certified to the NIAP Protection Profile for Peripheral Switching Devices version 4.0, the current required standard for U.S. government and DoD deployments.

Does this KVM support Common Access Card (CAC) authentication?

Yes. An integrated CAC/smart card reader is included on each port, enabling DoD-standard smart card login without external card readers or USB hubs on the operator desktop.

Is this product TAA compliant?

Yes. The F1DN208KVM-UN-4 is US-manufactured and fully TAA compliant, making it eligible for GSA Schedule contracts and government procurement vehicles.

What video formats are supported?

The combo connectors support DisplayPort and HDMI inputs, with internal conversion enabling DVI sources as well — all at up to 4K (3840x2160) resolution at 60Hz per display head, without requiring external video adapters.

Can this KVM be used in a rack-mount configuration?

Yes. The F1DN208KVM-UN-4 supports desktop, rack-mount, and under-table installation. Optional Belkin mounting accessories are available for each configuration.

What anti-tamper protections are included?

The switch features always-on active anti-tamper detection. If physical intrusion or tampering is detected, the unit enters a lockdown state. The chassis is also designed to prevent internal component access without visible evidence.

Is the optional Belkin KVM Remote Control compatible?

Yes. The unit is compatible with the Belkin KVM Remote Control with Integrated Keyboard, which provides backlit per-channel color coding and mechanical keyboard control to reduce operator error in multi-domain workstation environments.

What is the warranty on this product?

The F1DN208KVM-UN-4 carries a 1-year limited warranty. Belkin also provides US-based free technical support for the life of the product. Extended warranty options may be available through your reseller.
