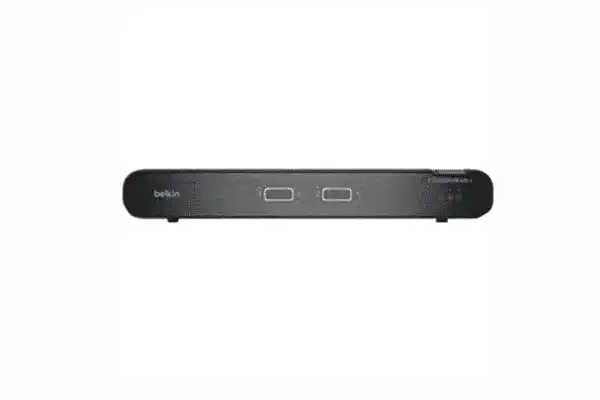

Belkin Universal 2nd Gen Secure KVM Switch – 2-Port Dual Head with CAC Reader

Product Overview

The Belkin Universal 2nd Gen Secure KVM Switch (F1DN202KVM-UN-4) is a 2-port, dual-monitor NIAP PP4.0-certified secure KVM switch for government, military, and enterprise IT environments requiring validated physical isolation between two classified or sensitive network security enclaves. This TAA-compliant secure KVM includes an integrated Common Access Card (CAC) reader per port for DoD-standard smart card authentication, and its dual-head video configuration drives two independent monitors per operator simultaneously. It is the right-sized choice for two-domain operator workstations where a full dual-display experience and NIAP PP4.0 compliance are both required alongside integrated CAC authentication.

Product Description

The F1DN202KVM-UN-4 brings the complete Universal 2nd Gen Secure KVM security architecture to two-port, dual-monitor deployments, serving analyst and operator workstations where two security domains — such as SIPRNet and NIPRNet — must be accessible from a single console without risk of cross-domain data leakage. Optical data diodes on both input channels enforce hardware-level unidirectional isolation, maintaining air-gap separation between connected computers at the physical layer independent of software state. Embedded peripheral emulation maintains continuous keyboard and mouse activity on the inactive channel, eliminating timing-based side-channel exploits.

The dual-head output drives two monitors simultaneously per operator, enabling side-by-side display of both connected security domains when switching between them, within the strict physical controls of the installation. Integrated CAC readers per port support DoD PIV and smart card authentication without requiring external card readers at the operator desktop. The 8th-order elliptical audio filter protects audio paths against ultrasonic data exfiltration attacks, satisfying SCIF and compartmented environment audio security requirements.

DisplayPort/HDMI combo connectors with internal auto-sensing video conversion support DisplayPort, HDMI, and DVI sources at up to 4K UHD (3840x2160) at 60Hz per display head, providing universal video compatibility without external adapters. The front panel configurable enclave color coding aligns with the optional Belkin KVM Remote Control with Integrated Keyboard for classification-level visual awareness. US-manufactured and TAA compliant, the F1DN202KVM-UN-4 supports desktop and under-table installation and features always-on active anti-tamper protection with automatic lockdown on physical intrusion detection. Input voltage accepts 120V-230V AC for broad facility compatibility.

Key Features

• NIAP PP4.0 Certified - Common Criteria validated to NIAP Protection Profile for Peripheral Switching Devices v4.0; meets current DoD and federal agency secure KVM requirements.
• 2-Port, Dual-Monitor Configuration - Connects two computers with two simultaneous independent video outputs for side-by-side dual-display operator workstations.
• Integrated CAC/Smart Card Reader - Per-port Common Access Card reader supports DoD PIV smart card authentication without external desktop card reader hardware.
• Optical Data Diodes per Channel - Hardware-enforced unidirectional data paths on both channels provide physical air-gap isolation between connected computers.
• Embedded Peripheral Emulation - Continuous keyboard and mouse emulation on the inactive port eliminates timing-based side-channel exploits.
• 8th-Order Elliptical Audio Filter - Protects against ultrasonic data exfiltration through audio interfaces in SCIF-class installations.
• Universal Video Combo Connectors - DisplayPort/HDMI combo inputs with internal DVI conversion support all primary video standards at up to 4K/60Hz per head — no external adapters.
• Active Anti-Tamper, Always On - Continuous physical intrusion monitoring with automatic protective lockdown on tamper detection.
• Configurable Enclave Color Coding - Front panel and optional remote keyboard per-channel LED color coding provides classification-level visual identification.
• TAA Compliant, US-Manufactured - Eligible for GSA Schedule and government contract procurement; manufactured in the United States.
• Universal AC Input - Accepts 120V-230V AC for domestic and OCONUS facility deployment.

Typical Applications

• Government and DoD two-domain workstations (e.g., SIPRNet/NIPRNet) with dual-monitor and CAC authentication requirements
• SCIF and secure facility operator stations requiring NIAP PP4.0-certified 2-port KVM switching with integrated CAC
• Federal agency analyst desktops with two security enclave access and side-by-side dual-display configurations
• Military intelligence and command workstations with two-domain dual-head requirements
• Defense contractor and government procurement of TAA-compliant NIAP-certified secure KVMs for two-system deployments

Technical Specifications

Frequently Asked Questions

Is the F1DN202KVM-UN-4 NIAP PP4.0 certified?

Yes. Common Criteria certified to NIAP Protection Profile for Peripheral Switching Devices version 4.0, meeting current federal and DoD requirements for multi-domain secure KVM switches.

Does this KVM include a CAC reader?

Yes. An integrated Common Access Card reader is built into each of the two input ports, supporting DoD PIV smart card authentication without external USB card readers on the operator desktop.

When would I choose this 2-port model over a 4-port model?

The F1DN202KVM-UN-4 is the appropriate choice for workstations that require access to exactly two security enclaves — for example, SIPRNet and NIPRNet — with no planned expansion to additional domains. It delivers the same NIAP PP4.0 security architecture as the 4-port models at a lower investment for two-system deployments.

Is this product TAA compliant?

Yes. US-manufactured and fully TAA compliant, qualifying for GSA Schedule and government contract procurement vehicles.

What video formats and resolutions are supported?

DisplayPort/HDMI combo connectors with internal DVI conversion support DisplayPort, HDMI, and DVI video sources at up to 4K UHD (3840x2160) at 60Hz per display head, without external converters.

How does the dual-head configuration work with two computers?

Both monitor outputs switch simultaneously when changing channels. The operator can display the currently selected computer on both monitors at once, providing a dual-display workspace for one selected security domain at a time.

What anti-tamper protections are included?

The always-on active anti-tamper system continuously monitors for physical intrusion and initiates an automatic protective lockdown if tampering is detected.

What warranty is included?

A 1-year limited warranty with US-based complimentary technical support from Belkin. Contact your reseller for extended warranty options.
