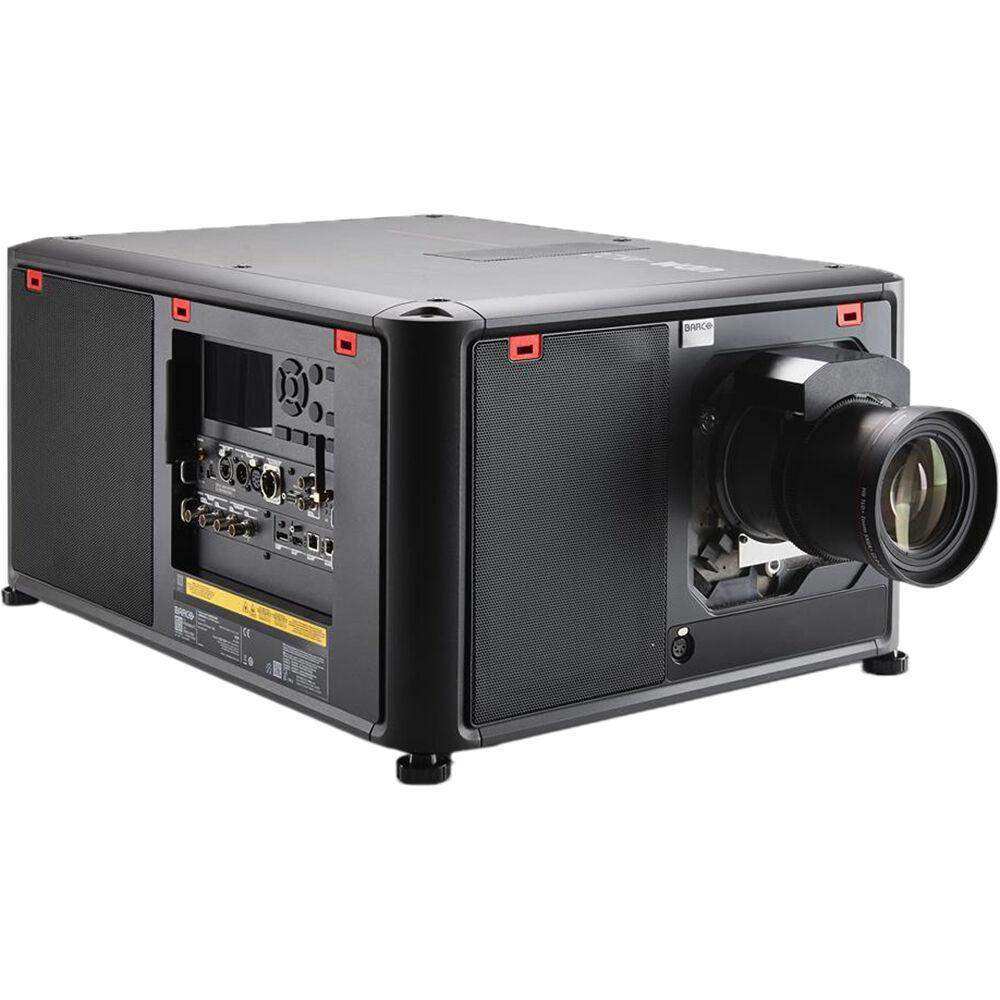

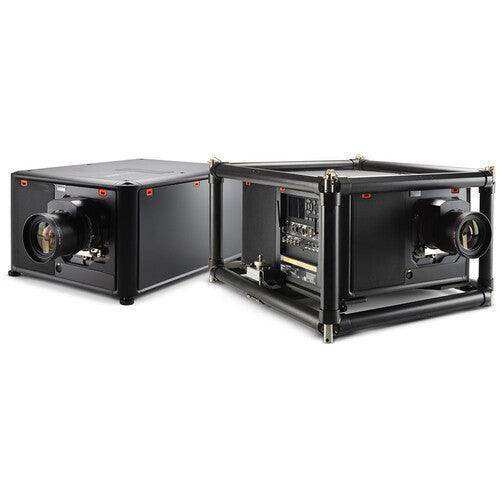

Barco UDM‑W22 21,000 lumens, WUXGA, 3-chip DLP Large Venue Projector with GSM, WiFi - R9409070-B

Product Overview

The Barco UDM-W22 large venue projector suits permanent installations and live events that need 21,000 lumens of WUXGA projection — auditoriums, houses of worship, broadcast sets, and staging. This 3-chip DLP laser projector pairs native WUXGA resolution with a laser phosphor light source rated for 20,000 hours, eliminating lamp changes. At 48 kg it was the lightest 22K-class chassis on the market, lowering rigging and freight cost. Barco Pulse electronics and the Insights Management Suite make it a connected, remotely managed projector for multi-site fleets.

Product Description

The UDM-W22 (R9409070-B) uses three 0.96″ DMD chips and a laser phosphor engine to deliver 22,000 ISO lumens (20,000 ANSI) at native WUXGA 1,920 × 1,200, with a color spectrum that exceeds the Rec. 709 space and a 20,000:1 dynamic contrast ratio. It accepts input up to 4K, and Barco Single Step Processing performs warping, scaling, and processing in one pass for low latency and reduced dark time — valuable for live camera feeds and edge-blended arrays using ScenergiX. The modular, sealed-core design supports field serviceability and 360° orientation for ceiling, rear-screen, or tilted mounting. As a connected laser phosphor projector for permanent installation, it provides integrated 3G connectivity and the Insights dashboard for remote brightness control, log access, and fleet monitoring. It ships as a body only — Barco TLD+ lenses are selected separately, and the full TLD+ range is stocked on creationnetworks.net.

Key Features

• 21,000-lumen 3-chip DLP — 22,000 ISO lumens for large screens in high-ambient-light venues.
• Native WUXGA resolution — 1,920 × 1,200 imaging with input support up to 4K.
• Pulse Single Step Processing — Warp, scale, and process in one step for low latency and reduced dark time.
• FLEX² brightness and resolution locking — Lock output per show for predictable performance.
• 20,000-hour laser phosphor source — Lamp-free operation removes consumable cost, flicker, and lamp maintenance.
• Lightest 22K-class chassis — 48 kg lowers rigging labor and shipping cost.
• ScenergiX edge blending — Horizontal and vertical blending with embedded warp for multi-projector arrays.
• Insights Management Suite — Cloud dashboard, remote log access, and integrated 3G for fleet monitoring.
• 360° orientation — Ceiling-mountable, rear-screen capable, and tiltable for flexible installation.

Typical Applications

• Auditorium — 21,000 lumens fills large lecture-hall and performing-arts screens.
• House of worship — High brightness and edge blending suit wide sanctuary screens and IMAG.
• Broadcast studio — Low-latency Pulse processing supports live camera and virtual-set workflows.
• All-hands room — Drives town-hall-scale displays beyond standard installation projectors.
• Government space — Suited to command, visualization, and briefing rooms.
• Multi-purpose room — Flexible mounting and locking presets adapt to changing configurations.

Technical Specifications

*Brightness ±10%.

Frequently Asked Questions

Does the UDM-W22 include a lens?

No. It ships as a body only. Select a Barco TLD+ lens by throw ratio to match your throw distance — the full TLD+ range is stocked on creationnetworks.net.

How does it integrate into an existing AV system?

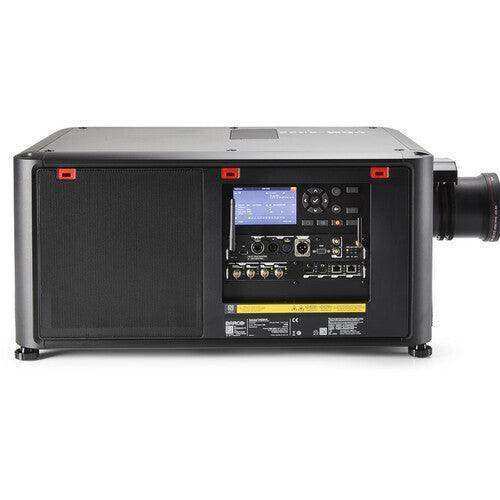

Inputs include HDBaseT (RJ45), HDMI 2.0 (HDCP 2.2), DisplayPort 1.2, and 3G-SDI, with control over RS232, Ethernet, IR, and the integrated web server.

What are the installation requirements?

It supports 360° orientation including ceiling and rear-screen mounting, runs on 120–240 VAC, and draws up to 2,200 W at full brightness with 6,890 BTU heat output — factor these into power and HVAC planning.

How is the projector fleet managed and serviced?

The Barco Insights dashboard provides remote log access and brightness control over integrated 3G. The modular, sealed-core design supports fast field serviceability.

What warranty and support does it carry?

The UDM-W22 carries a 3-year Barco warranty, with optional Essential Care extensions. Creation Networks supports configuration, lens selection, and post-sale technical questions — contact sales@creationnetworks.net.
