• Dazzling colors outperforming the Rec. 709 color space
• High residual value thanks to rugged design
• Remote fleet management and connectivity with Barco Insights Management Suite
• Unified Pulse electronics with Single Step Processing

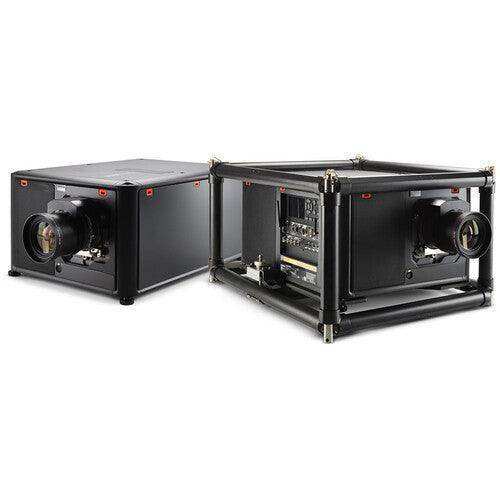

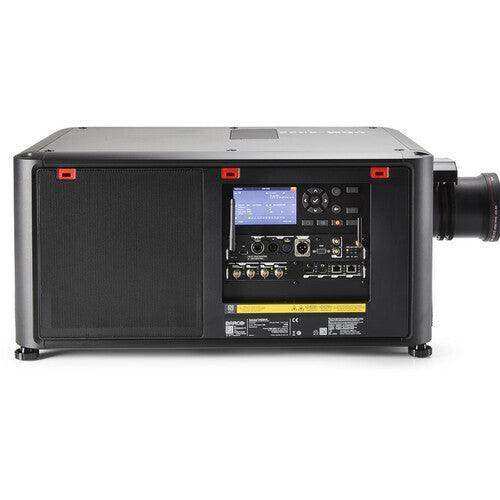

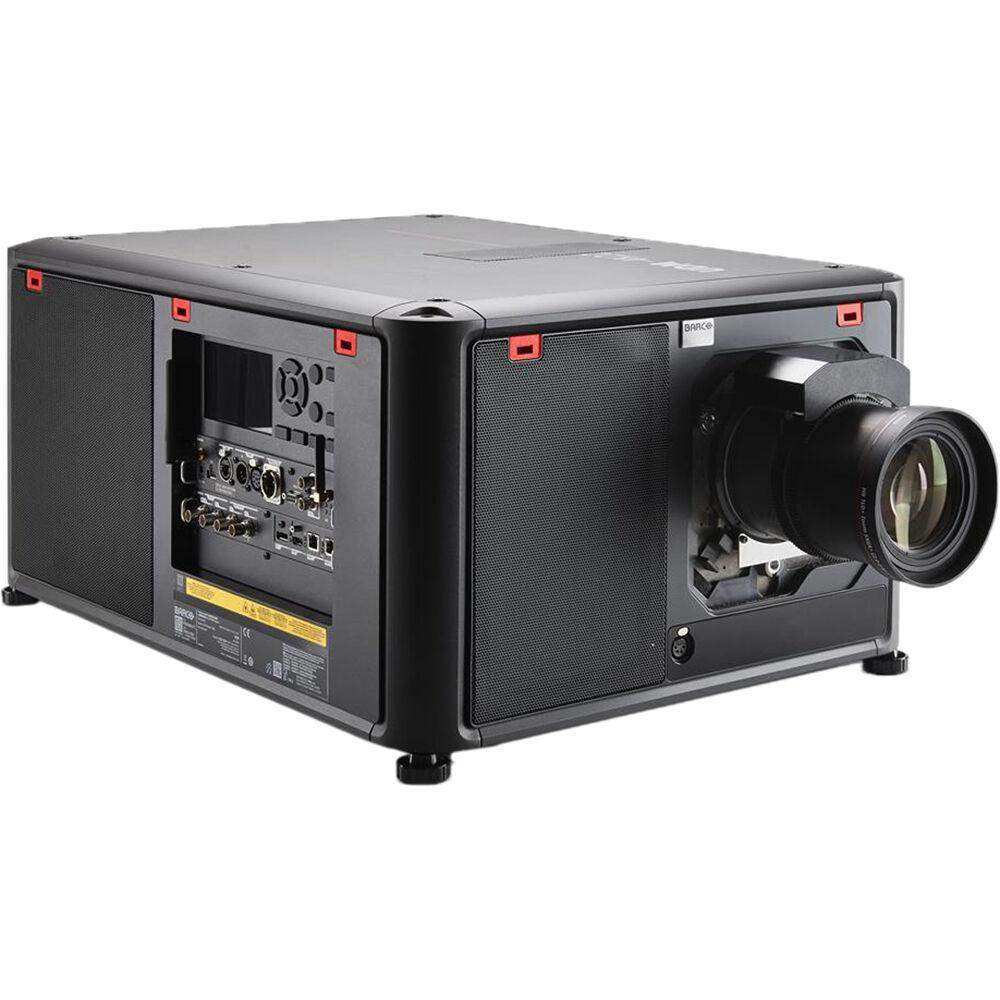

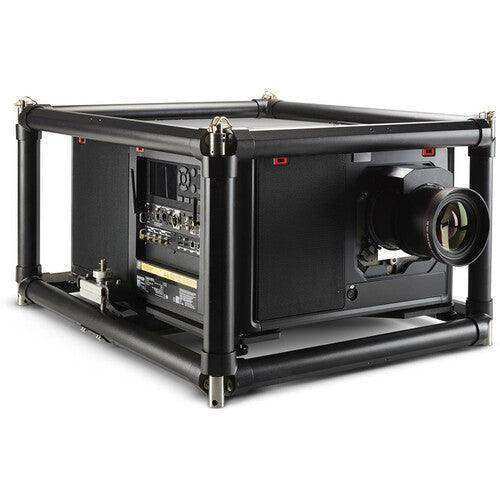

Just like the 22K version, the UDM-15K never compromises on the quality or brightness of your projection. The UDM-W15 features WUXGA resolution and 15,000 lumens light output to deliver impactful experiences with mind-blowing colors.

Operational efficiency

Lift your creativity to unprecedented levels with the widest lens shift on the market and an extensive list of other peripherals which will facilitate a smooth installation and integration of the projector in your setup. Barco’s unique FLEX² feature allows you to tune and lock the brightness level or resolution for a specific show. The modular design supports fast maintenance and easy serviceability in the field.

Pulse Electronics

With the Barco Pulse proprietary Single Step Processing technology warping, scaling and 4K UHD processing is done in only one step. The result? Razor-sharp images, market leading lowest latency, and less dark time than comparable solutions.

Connectivity

The Barco Insights Management Suite Dashboard and remote log file access enables faster and more effective troubleshooting. Manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform and integrated 3G connectivity.

Long lifetime

Thanks to its robustness and the smart material choices, you can trust UDM to withstand the endurances of life on the road. With the laser phosphor light source, lamp-related costs and maintenance as well as image flicker, belong to the past. Barco’s outstanding integrated laser cooling prevents overheating and the Constant Light Output functionality guarantees constant brightness and color across the projector's lifetime.

Download Spec Sheet

Specs

General specifications

Projector type

WUXGA 3-chip DLP digital projector

Technology

0.96" DMD^TM x3

Resolution

1,920 x 1,200

Brightness

14,500 center lumens / 14,000 ansi lumens / 15,000 ISO lumens*

Contrast ratio

Full field 2200:1 / Barco Dyna Black 20000:1

Brightness uniformity

95%

Aspect ratio

16:10

ScenergiX

Horizontal and vertical edge blending

Lenses

TLD+ 0,37; 0,65-0,85; 0.73:1 ; 1.2:1 ; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1

Optical lens shift

Vertical between -100% to +130%, depending on lens

Horizontal up to +/- 40%, depending on lens

Motorized zoom and focus (with lens memory on TLD lenses)

Motorized lens shift (with position memory on all lenses)

Color correction

P7

Light source

Laser phosphor

Light source lifetime

30,000hr (at 100% laser power, DynaBlack = off)

Optical dowser

Digital + mechanical internal

Picture-by-picture

Two sources simultaneously

Sealed DLP™ core

Standard

Orientation

360°

DMX 512

Standard

WARP

Direct adjust OSD + toolset

Image processing

Embedded warp & blend

Processing

Pulse electronics

Keystone correction

Yes

Integrated web server

Yes

CLO (constant light output)

Standard

3D

Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz

Inputs

Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP1.2 (HDCP 1.3); Quad 3G/12G SDI/BarcoLink ULTRA

Optional Inputs

Quad DP1.2 / Fiber SFP

Input resolutions

From NTSC up to 4K (4,096 x 2,160)

Refresh rates:

24hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600)

Max. pixel clock

600 MHz

Software tools

Projector Toolset + Android** app + iOS** app

Control

XLR wired + IR, RS232, Wifi**, GSM **

Network connection

10/100 base-T, RJ-45 connection, Wifi**

Power requirements

120-160 V (reduced power) 15A / 200-240V (+/- 10%), 8,5A, 50-60Hz

Max. power consumption

1330W nom/ 1550w max @ 230 volts ECO STBY<2W
1330W nom/ 1550w max @ 120 volts ECO STBY<2W

Noise level (typical at 25°C/77°F)

46 dB(A)

Operational ambient temperature

0-40°C / 32°-104°F ***

Operational humidity

0-80% (non condens)

Dissipation BTU

Max. 5,200 BTU/h

Dimensions (WxLxH)

725 x 540 x 339 mm / 28.54 x 21.25 x 13.36 inches

Shipping Dimensions

incl. pallet

(WxLxH) 850 x 665 x 613 mm / 33.46 x 26.18 x 24.13 inches

Weight

48 kg (105 lbs) / shipping weight from factory: 61 kg (134 lbs)

Standard accessories

Power cord, wireless / XLR wired rugged remote control

Certifications

Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs

Warranty

3 years

Notes

*Brightness levels +/- 10%

** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.

***at higher altitude light output might be dimmed
