Barco LVD-5521C Barco 55" Extreme Narrow Bezel LCD Video Wall (500 Nits) - R9867808B

Product Overview

The Barco OverView LVD-5521C (R9867808B) is a 55-inch extreme narrow bezel LCD video wall panel built for tiled video wall installations. It is a cost-optimized, mid-level brightness display rated at 500 cd/m2 typical, with a 1.8 mm ENB-generation bezel that keeps the inter-tile gap small across an array. Full HD resolution, a wide 178-degree viewing angle, and accurate color make it a strong value for entry-level and mid-end video wall projects. This R9867808B configuration ships with a US power cord.

Product Description

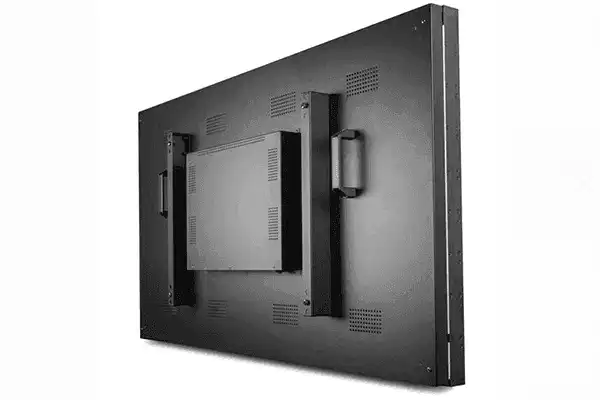

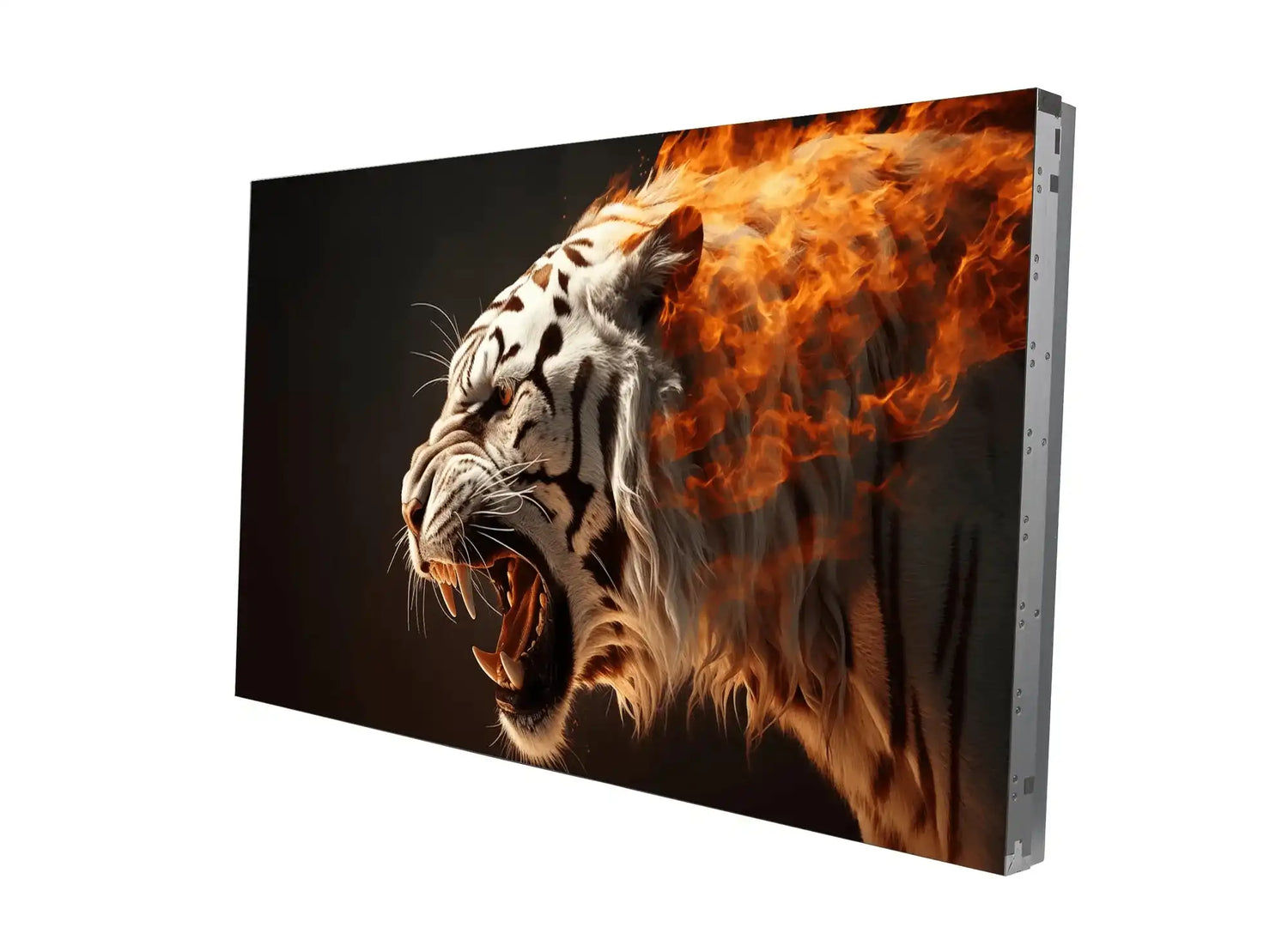

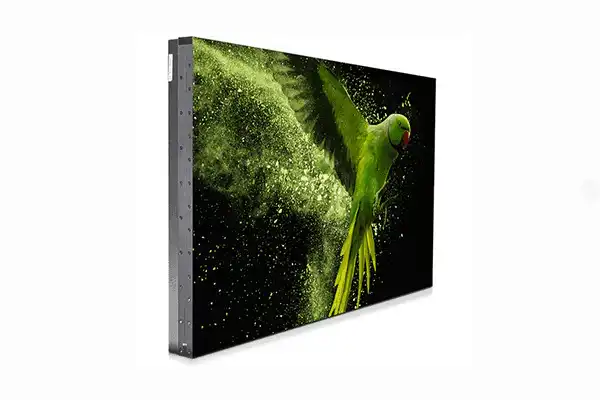

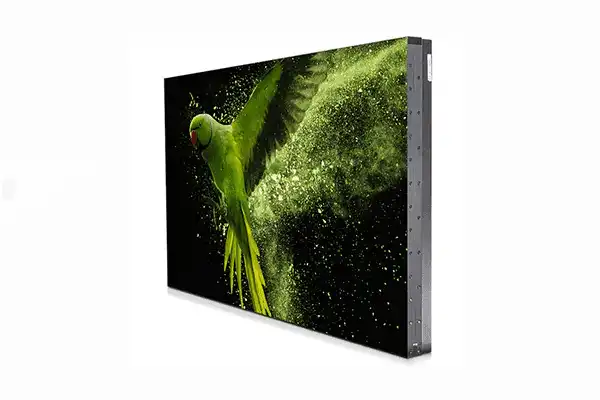

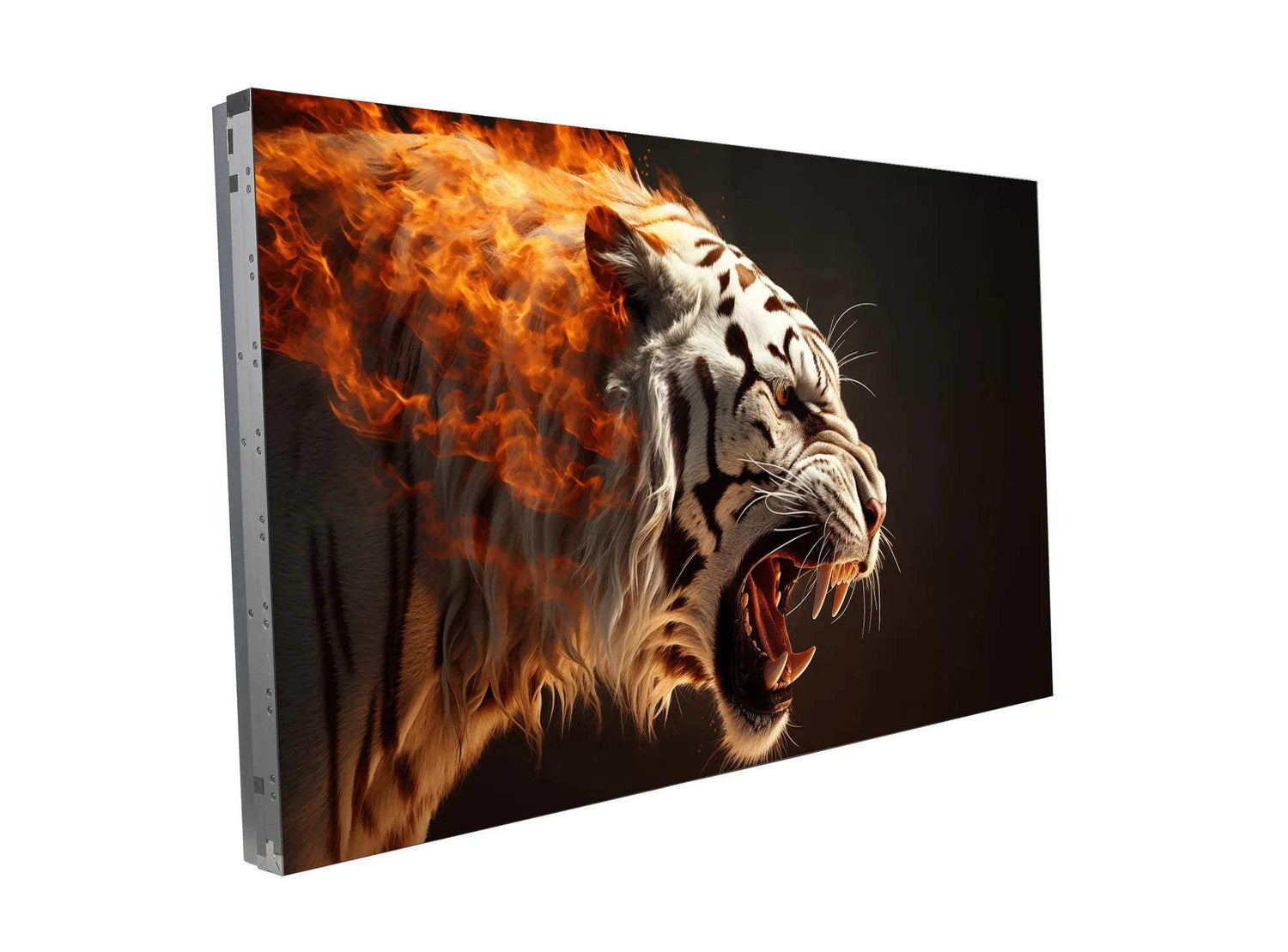

As shown in the product gallery, the LVD-5521C is an in-plane switching (IPS) LCD panel with a direct LED backlight, Full HD 1920 x 1080 resolution, and a 16:9 aspect ratio. The 1.8 mm ENB bezel keeps the combined inter-tile gap narrow so multi-panel walls present content with minimal interruption, and the 178-degree horizontal and vertical viewing angles keep the image consistent off-axis. Sense X automatic color and brightness calibration with integrated sensors maintains inter-tile color and brightness uniformity over time, while a fan-less design delivers noiseless operation suited to quiet rooms. Connectivity includes 2x DisplayPort 1.2 inputs and 1x DisplayPort 1.2 output for daisy-chaining, 2x HDMI 2.0 inputs, an Ethernet control port, and HDCP 2.2 support. The panel mounts on a VESA 600 x 400 pattern and draws 170 W at native 500-nit output, with a 60,000-hour typical backlight lifetime and optional 5-year service packages. Integrators can pair these tiles with related display and processing gear in our Barco collection. Contact Creation Networks for help configuring an LVD-5521C wall array.

Key Features

• Extreme narrow bezel — 1.8 mm ENB-generation bezel keeps the inter-tile gap small across tiled arrays.
• 500 cd/m2 brightness — Mid-level typical luminance suited to controlled-light video wall environments.
• Full HD IPS panel — 1920 x 1080 in-plane switching panel with 178-degree horizontal and vertical viewing angles.
• Sense X calibration — Automatic color and brightness calibration with integrated sensors for inter-tile uniformity.
• Fan-less design — Noiseless operation for quiet installation spaces.
• Flexible connectivity — 2x DisplayPort 1.2 in, 1x DisplayPort 1.2 out, 2x HDMI 2.0 in, Ethernet, HDCP 2.2.
• VESA mounting — VESA 600 x 400 pattern for standard video wall mounts.
• Long backlight life — 60,000-hour typical backlight lifetime with optional 5-year service packages.

Typical Applications

• Control rooms — Continuous calibration and narrow bezels suit monitoring walls in managed lighting.
• Command and operations centers — Tiles map, video, and data sources across a uniform array.
• Broadcast studios — Provides a consistent on-set display surface with wide viewing angles.
• Corporate lobbies — Cost-optimized panels for branded content in reception and atrium spaces.
• Retail and digital signage — Builds eye-level video walls for entry-level and mid-end installations.

Technical Specifications

Frequently Asked Questions

How narrow is the bezel? The LVD-5521C is part of Barco's ENB generation with a 1.8 mm bezel for a small inter-tile gap in tiled walls.

What is the brightness and resolution? It offers 500 cd/m2 typical luminance and Full HD 1920 x 1080 resolution.

What inputs does it have? Two DisplayPort 1.2 inputs, one DisplayPort 1.2 output, and two HDMI 2.0 inputs, with HDCP 2.2 support.

Is it suitable for 24/7 video walls? Yes. It uses a fan-less design, Sense X calibration, and a 60,000-hour typical backlight life, with optional 5-year service packages.

How is it mounted? It uses a VESA 600 x 400 mounting pattern for standard video wall mounts.
