Barco R9862030 TLD+ LENS 2.8-4.5; 2.56-4.17:1 for WUXGA ; 2.73-4.43:1 for WQXGA/4KUHD ; 2.8-4.5:1 for SXGA+

Product Overview

The Barco R9862030 TLD+ lens is a mid-to-long-throw zoom lens for Barco large-venue 3DLP projectors across the UDX, HDX, UDM and F-series platforms. Its 2.8-4.5:1 throw ratio (SXGA+) suits rooms where the projector is set back a moderate distance from the screen, such as mid-depth auditoriums and rental venues. It fills the gap between standard and long-throw TLD+ optics, giving integrators a practical placement range for many fixed-install and staging rooms. Motorized zoom, focus and lens shift allow framing to be dialed in from the projector menu or remote.

Product Description

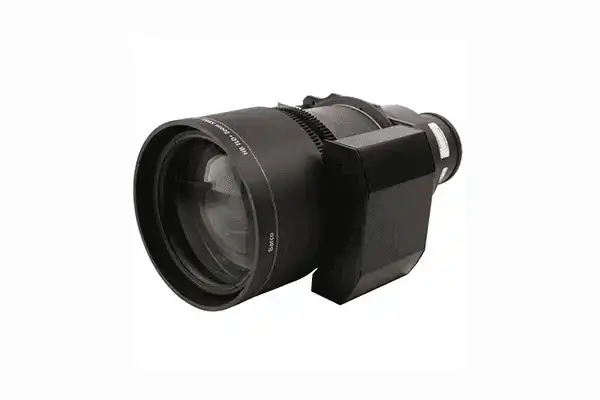

The R9862030 is part of Barco's TLD+ lens line, built with thicker high-quality glass to handle the laser light output of 3DLP projectors while preserving image quality. The throw ratio varies by resolution: 2.56-4.13:1 for WUXGA (UDM W, UDX W), 2.74-4.43:1 for WQXGA/4K UHD (UDM 4K, UDX 4K), 3.07-4.96:1 for UXGA (UDX U) and 2.77-4.51:1 for SXGA+. The product image shows the bayonet mount that lets installers move lenses across compatible Barco platforms. For projectors placed farther back, consider the longer-throw TLD+ options; for closer placement, look at shorter-throw siblings. Browse the full Barco collection for compatible projectors and accessories. This lens mounts on rental and install bodies such as the UDX-4K32, HDX-W series and UDM-4K22.

Key Features

• Mid-throw 2.8-4.5:1 zoom — covers 2.77-4.51:1 for SXGA+ and adjusts by resolution, for projectors set a moderate distance from the screen.
• Motorized zoom and focus — framing and sharpness are controlled from the projector interface or remote.
• Motorized lens shift — vertical and horizontal positioning without keystone, with shift range dependent on projector model.
• TLD+ high-power glass — thicker, high-quality optics designed to manage 3DLP laser power while preserving image quality.
• Multi-platform compatibility — one lens line spans UDX, HDX, UDM and F-series bodies, protecting your investment across upgrades.
• Resolution-aware coverage — published ratios for WUXGA, WQXGA/4K UHD, UXGA and SXGA+ make screen-distance planning straightforward.
• Bayonet lens mount — tool-free installation and removal for fast rig changes.

Typical Applications

• Mid-depth auditoriums and lecture halls with the projector set moderately back.
• Houses of worship using front projection over a medium throw distance.
• Large-venue rental and staging where rigging is a moderate distance from the screen.
• Fixed corporate and higher-education installations on UDX, HDX or UDM projectors.

Technical Specifications

Frequently Asked Questions

Which Barco projectors does the R9862030 fit? It is designed for Barco UDX, HDX, UDM and F-series 3DLP projectors, including the UDX-4K32, HDX-W series and UDM-4K22.

What throw ratio should I use for planning? Use the resolution that matches your projector: 2.77-4.51:1 for SXGA+, 2.56-4.13:1 for WUXGA, 2.74-4.43:1 for WQXGA/4K UHD and 3.07-4.96:1 for UXGA.

Is this a long-throw lens? It is a mid-to-long-throw lens, suited to projectors positioned a moderate distance from the screen rather than at the rear of a deep room.

Are zoom, focus and shift motorized? Yes. Zoom, focus and lens shift are all motorized and adjustable from the projector menu or remote.
