Barco R9862005 TLD+ LENS 1.16-1.49; 1.16-1.49:1 for WUXGA ; 1.24-1.56:1 for WQXGA/4KUHD ; 1.25-1.6:1 for SXGA+

Product Overview

The Barco TLD+ Lens 1.16-1.49 (article R9862005) is a near-1:1 zoom lens in Barco's TLD+ range, well suited to rooms where projector-to-screen distance roughly matches image width. It provides a 1.16-1.49:1 throw ratio on WUXGA chips, 1.24-1.56:1 on WQXGA/4K UHD chips, and 1.25-1.6:1 on SXGA+ devices. The zoom range gives installers flexible framing in a common mid-room geometry. It mounts on HDX, UDX, UDM and F-series projectors that accept the TLD+ lens family.

Product Description

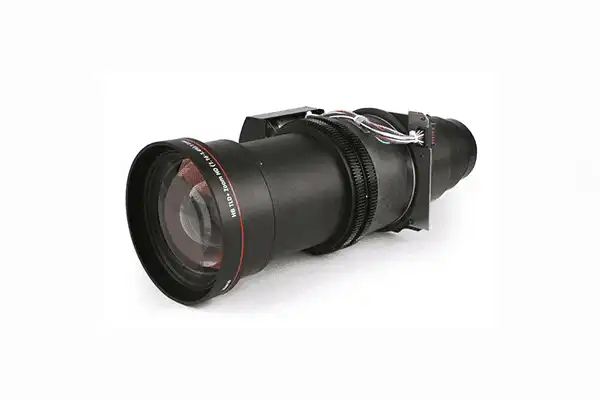

As shown in the product image, the TLD+ 1.16-1.49 is a versatile zoom covering one of the most frequently specified throw windows for large-venue rooms. It supports motorized zoom, focus and lens shift with position memory for repeatable recall across blended or multi-channel arrays. For closer placement, step down to the TLD+ 0.85-1.16 lens; for longer rooms move up to the TLD+ 1.5-2.0 lens.

The lens is compatible with Barco large-venue and rental projectors across the Barco projector and lens collection, including HDX-W and HDX-4K, UDX-W/U/4K, UDM-W/4K and HDF/F-series bodies. Because the TLD+ mount is shared across these platforms, the lens can be redeployed across a projector fleet without replacement optics.

Key Features

• Mid-throw zoom — Covers a common projector-to-screen geometry for large rooms.
• Throw ratio 1.16-1.6:1 — 1.16-1.49:1 on WUXGA, 1.24-1.56:1 on WQXGA/4K UHD, 1.25-1.6:1 on SXGA+.
• Motorized zoom and focus — Remote optical adjustment for precise framing and sharpness.
• Motorized lens shift with memory — Stores positions for repeatable multi-projector setup.
• Broad platform compatibility — Mounts on HDX, UDX, UDM and HDF/F-series projectors via the TLD+ interface.
• All-glass construction — High-quality optics for demanding large-venue imaging.
• Fleet reuse — Shared mount lets the lens move between compatible Barco bodies.

Typical Applications

• Mid-room fixed installations in auditoriums and lecture halls
• Large-venue rental and staging
• House of worship sanctuaries
• Corporate and conference projection

Technical Specifications

Frequently Asked Questions

Which projectors does the TLD+ 1.16-1.49 fit? It mounts on Barco large-venue projectors that accept the TLD+ lens family, including HDX, UDX, UDM and HDF/F-series bodies.

What is the throw ratio? 1.16-1.49:1 on WUXGA, 1.24-1.56:1 on WQXGA/4K UHD, and 1.25-1.6:1 on SXGA+.

Is this a zoom lens? Yes. It is a mid-throw zoom with motorized zoom, focus and lens shift with position memory.

What is the Barco article number? The order code is R9862005.
