Barco Projector Lens, G Lens WUXGA 0.95-1.22:1- R9832755

Product Overview

The Barco R9832755 is a G-series short-throw zoom lens with a 0.95-1.22:1 throw ratio at WUXGA. It is designed for Barco G60-series projectors and the PGWU-61B, PGWU-62L, PGWX-61B, PGWX-62L, and PGXG-61B models. The lens provides motorized zoom and motorized focus for remote image setup. Its short throw range allows large images from a close projector position.

Product Description

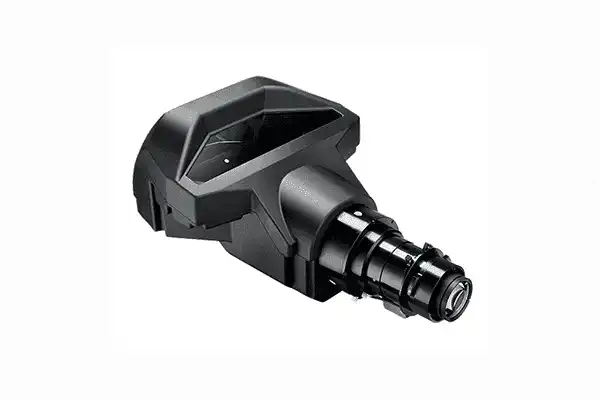

This short-throw lens is intended for rooms where the projector must sit close to the screen, such as smaller meeting rooms, classrooms, and confined ceiling mounts. The motorized zoom and focus integrate with Barco's lens management for repeatable geometry across presets. As shown in the product image, the compact lens uses the G-series bayonet mount for tool-free swaps. It is an option for projectors including the G60-W7, G60-W8, G60-W10, and PGWU-62L, and it complements longer-throw G lenses such as the G 1.52-2.92:1 long zoom. Browse the full Barco projector and lens collection to match the right optic to your install.

Key Features

• Throw ratio 0.95-1.22:1 (WUXGA) — short throw for large images from a close projector position; 1.00-1.28:1 at WXGA, 0.99-1.26:1 at XGA.
• Motorized zoom — power zoom for remote image-size adjustment.
• Motorized focus — power focus for remote sharpness control.
• Aperture f/2.30-2.57 — rated aperture range across the zoom span.
• Compact and light — 1.4 lbs and 3.5" x 3.5" x 6.75" for tight installs.
• Broad G-series compatibility — for G60 series and PGWU/PGWX/PGXG projectors.
• Article number R9832755 — the genuine Barco part reference for ordering and service.

Typical Applications

• Smaller meeting rooms and classrooms with short throw distances
• Confined ceiling and wall mounts
• Houses of worship with close projector placement
• Rental and staging fleets on Barco G-series projectors
• Corporate huddle and training spaces

Technical Specifications

Frequently Asked Questions

Which Barco projectors use the R9832755 lens? It is designed for the Barco G60 series and the PGWU-61B, PGWU-62L, PGWX-61B, PGWX-62L, and PGXG-61B projectors.

Is this lens motorized? Yes. Both zoom and focus are motorized for remote, repeatable image setup.

What throw ratio does it deliver? 0.95-1.22:1 at WUXGA, 1.00-1.28:1 at WXGA, and 0.99-1.26:1 at XGA.

What is the Barco article number? The genuine Barco reference is R9832755.
