Barco R9829997 TLD+ LENS 7.5-11.2; 6.93-10.3:1 for WUXGA ; 7.39 - 10.8:1 for WQXGA/4KUHD ; 7.5-11.2:1 for SXGA+

Product Overview

The Barco TLD+ Lens 7.5-11.2 (article R9829997) is the long-throw zoom in Barco's TLD+ lens range, intended for projecting from a long distance to the screen. It delivers a 6.93-10.3:1 throw ratio on WUXGA chips, 7.39-10.8:1 on WQXGA/4K UHD chips, and 7.5-11.2:1 on SXGA+ devices. This lens is the right choice for deep auditoriums, large rooms and rear-of-house projection booths. It mounts on HDX, UDX, UDM and F-series projectors that accept the TLD+ lens family.

Product Description

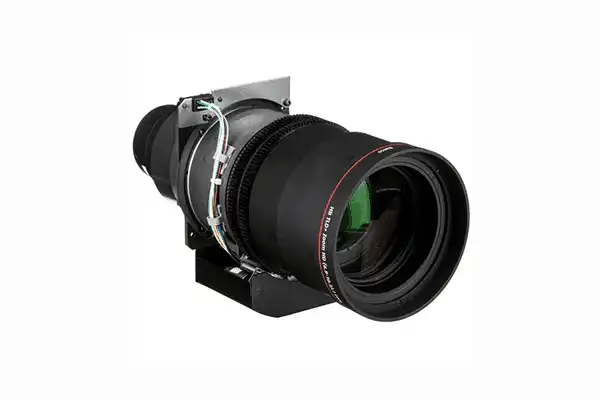

As shown in the product image, the TLD+ 7.5-11.2 is a long-throw zoom lens built for the greatest projection distances in the TLD+ lineup. It supports motorized zoom, focus and lens shift with position memory, allowing precise image placement from a distant booth and repeatable recall across channels. For shorter rooms, the broader TLD+ range steps down through mid-throw options such as the TLD+ 1.5-2.0 and TLD+ 2.0-2.8 lenses.

The lens is compatible with Barco large-venue and rental projectors across the Barco projector and lens collection, including HDX-W and HDX-4K, UDX-W/U/4K, UDM-W/4K and HDF/F-series bodies. Because the TLD+ mount is shared across these platforms, the lens can be redeployed across a projector fleet without replacement optics.

Key Features

• Long-throw zoom — The longest-throw option in the TLD+ range for distant projection booths.
• Throw ratio up to 11.2:1 — 6.93-10.3:1 on WUXGA, 7.39-10.8:1 on WQXGA/4K UHD, 7.5-11.2:1 on SXGA+.
• Motorized zoom and focus — Remote optical adjustment for precise framing and sharpness from a distance.
• Motorized lens shift with memory — Stores positions for repeatable multi-channel setup.
• Broad platform compatibility — Mounts on HDX, UDX, UDM and HDF/F-series projectors via the TLD+ interface.
• All-glass construction — High-quality optics for demanding large-venue imaging.
• Fleet reuse — Shared mount lets the lens move between compatible Barco bodies.

Typical Applications

• Deep auditoriums and lecture halls with rear projection booths
• Large-venue rental and staging with long throw distances
• Fixed installations projecting from the back of large rooms
• House of worship sanctuaries with distant projector positions

Technical Specifications

Frequently Asked Questions

Which projectors does the TLD+ 7.5-11.2 fit? It mounts on Barco large-venue projectors that accept the TLD+ lens family, including HDX, UDX, UDM and HDF/F-series bodies.

What is the throw ratio? 6.93-10.3:1 on WUXGA, 7.39-10.8:1 on WQXGA/4K UHD, and 7.5-11.2:1 on SXGA+.

Is this lens motorized? Yes. It supports motorized zoom, focus and lens shift with position memory.

What is the Barco article number? The order code is R9829997.
