Barco GC LENS (4.0 - 7.2 : 1) - R9802186

Product Overview

The Barco GC lens 4.0-7.2:1 (R9802186) is a long throw zoom optic for the Barco G-series and G100 WUXGA projector platform. Its long throw ratio places the projector far back from the screen, suiting deep auditoriums, rear-of-room booths and long-distance large-venue rigs. The lens is fully motorized on both zoom and focus and supports lens memory for both. A 1.8x zoom covers a wide span of long-throw geometries from a single optic.

Product Description

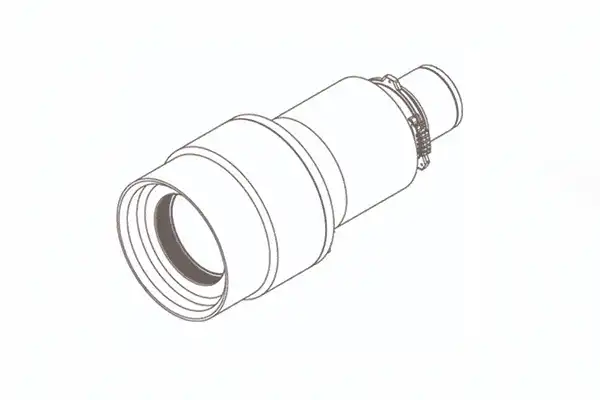

This GC long throw zoom lens is engineered for the longer projection distances on the G-platform, covering 4.25 m to 76.89 m depending on screen size. As shown in the product gallery, it uses the standard GC mount, projects 106.9 mm out of the projector body and has a 97 mm front diameter. Working F/# runs from 2.2 wide to 2.6 tele across an 84.1-149.8 mm focal range, with lens shift of vertical plus or minus 120 and horizontal plus or minus 50. Because lens memory covers both zoom and focus, integrators can store and recall full lens positions for scheduled or multi-aspect content.

This lens fits the Barco G-series and G100 WUXGA projectors. For the longest reach, step up to the GC+ lens 7.2-10.8:1; for a shorter long-zoom range, compare the GC lens 2.0-4.0:1. Browse the full Barco range on our Barco collection. Creation Networks supplies genuine Barco projection optics for fixed-install and rental AV.

Key Features

• Long throw 4.0-7.2:1 — places the projector far back for deep rooms and rear booths.
• 1.8x motorized zoom — wide powered zoom across an 84.1-149.8 mm focal range.
• Motorized focus with lens memory — stores and recalls zoom and focus positions.
• Wide lens shift — vertical plus or minus 120 and horizontal plus or minus 50 for off-axis placement.
• Working F/# 2.2-2.6 — from wide to tele across the zoom range.
• Long throw distance — 4.25 m to 76.89 m with a 50" to 500" focus range.
• WUXGA-optimized optics — matched to the G-series / G100 imager.
• Barco article R9802186 — genuine Barco GC optic for verified compatibility.

Typical Applications

• Deep auditoriums and theaters where the projector sits far from the screen.
• Rear-of-room and balcony projection booths.
• Large-venue rental and staging with long throw distances.
• Houses of worship with long projector-to-screen runs.
• Fixed installs needing repeatable lens-memory recall.

Technical Specifications

Frequently Asked Questions

Which projectors does the GC 4.0-7.2:1 lens fit? It is designed for the Barco G-series and G100 WUXGA projector platform.

Is this lens motorized or manual? Both zoom and focus are motorized.

Does it support lens memory? Yes, lens memory covers both zoom and focus, so compatible projectors can store and recall full lens positions.

When should I choose this lens? Choose the 4.0-7.2:1 long throw zoom when the projector must sit far from the screen, such as deep auditoriums or rear-of-room booths.

Is this a genuine Barco part? Yes, this is genuine Barco article R9802186 supplied by Creation Networks.
