Barco Projector lens. G-lens (0.75-0.95) - R9801840

Product Overview

The Barco R9801840 is a G-series short throw zoom lens with a 0.75-0.95:1 throw ratio at WUXGA, supplied with a lens ring. It is the widest, shortest-throw optic in the G-series lens line and replaces the earlier R9832781. The short throw allows a large image from a projector mounted very close to the screen. Its aperture range is f/2.3 to f/2.53.

Product Description

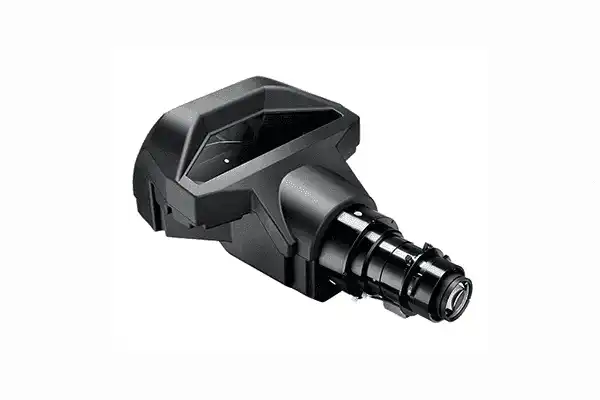

This lens is built for tight rooms and short-projection geometries where the projector sits just in front of the screen, such as small classrooms, simulation rooms, and confined ceiling mounts. The lens ships with its lens ring for mounting on G-series projectors. As shown in the product image, it uses the G-series bayonet mount for tool-free swaps. It is part of the same family as the longer-throw G 0.95-1.22:1 lens and the G 1.52-2.92:1 long zoom. Browse the full Barco projector and lens collection to match the right optic to your install.

Key Features

• Throw ratio 0.75-0.95:1 (WUXGA) — short throw for large images from very close placement; 0.79-1.00:1 at WXGA, 0.78-0.99:1 at XGA.
• Short throw zoom — widest, shortest-throw optic in the G-series lens line.
• Supplied with lens ring — ships with the mounting ring for G-series projectors.
• Aperture f/2.3-2.53 — rated aperture range across the zoom span.
• Replaces R9832781 — the current Barco part superseding the earlier reference.
• G-series lens line — part of Barco's G-series optics family.
• Article number R9801840 — the genuine Barco part reference for ordering and service.

Typical Applications

• Small classrooms and training rooms with short throw distances
• Simulation and visualization rooms
• Confined ceiling and wall mounts
• Houses of worship with close projector placement
• Rental and staging fleets on Barco G-series projectors

Technical Specifications

Frequently Asked Questions

Which Barco projectors use the R9801840 lens? It is designed for Barco G-series projectors that accept G-series optics.

Does this lens replace an older part? Yes. The R9801840 replaces the earlier R9832781 reference.

What throw ratio does it deliver? 0.75-0.95:1 at WUXGA, 0.79-1.00:1 at WXGA, and 0.78-0.99:1 at XGA.

What is the aperture range? The rated aperture is f/2.3 to f/2.53.

What is the Barco article number? The genuine Barco reference is R9801840.
