Barco- R9801225 CNHD-81B/CNWU-81B Wide Angle Fixed Lens 1.16:1 (EN15)

Product Overview

The Barco R9801225 is a wide angle fixed lens (EN15) with a 1.16:1 throw ratio, designed for the CNHD-81B and CNWU-81B single-chip DLP projectors as well as the F32 and FL33 series. It is a fixed focal length design with a 23.98 mm (0.94") focal length and an f/2.1 aperture, and it includes motorized focus. The wide angle projection delivers large, well-defined images in venues where the projector sits close to the screen. The standard focus range is 1.5 m to 15.0 m.

Product Description

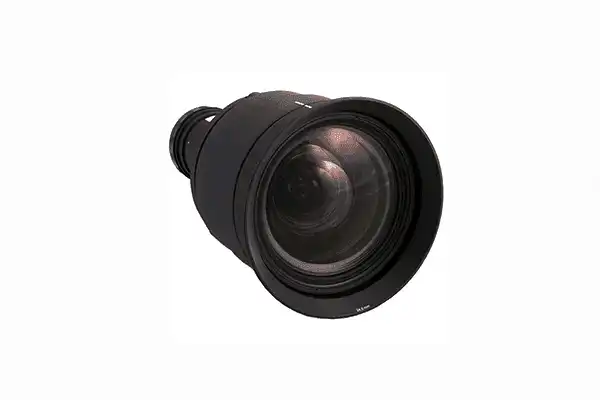

This fixed wide angle lens is intended for installations needing a large image from a short distance, such as large meeting rooms, lecture halls, and houses of worship. Because the focal length is fixed, image size is set by projector placement, while motorized focus allows remote sharpness adjustment. As shown in the product image, the lens mounts on the EN-series lens interface used by the compatible projectors. An extended focus range is available on request from Barco. It is the fixed-throw companion to the zoom-capable R9801228 wide angle zoom lens (EN13). Browse the full Barco projector and lens collection to match the right optic to your install.

Key Features

• Throw ratio 1.16:1 — wide angle fixed throw for large images from short distances.
• Fixed focal length 23.98 mm (0.94") — single fixed focal length for the EN15 lens.
• Motorized focus — power focus for remote sharpness control.
• Aperture f/2.1 — the rated maximum aperture.
• Standard focus range 1.5 m to 15.0 m — extended focus range available on request from Barco.
• EN15 lens type — the EN15 wide angle fixed lens for the CN-series and F32/FL33 projectors.
• Compatibility — for CNHD-81B, CNWU-81B, F32 series, and FL33 series.
• Article number R9801225 — the genuine Barco part reference for ordering and service.

Typical Applications

• Large meeting rooms and lecture halls with short projector distances
• Houses of worship and performance venues
• Permanent corporate and education installations
• Rental and staging fleets on Barco CN-series, F32, and FL33 projectors
• Visualization and conference rooms

Technical Specifications

Frequently Asked Questions

Which Barco projectors use the R9801225 lens? It is designed for the CNHD-81B, CNWU-81B, F32 series, and FL33 series projectors.

Is this a zoom lens? No. The EN15 is a fixed focal length wide angle lens; image size is set by projector placement, and it includes motorized focus.

What is the focus range? The standard focus range is 1.5 m to 15.0 m; an extended range is available on request from Barco.

What is the Barco article number? The genuine Barco reference is R9801225 (EN15).
