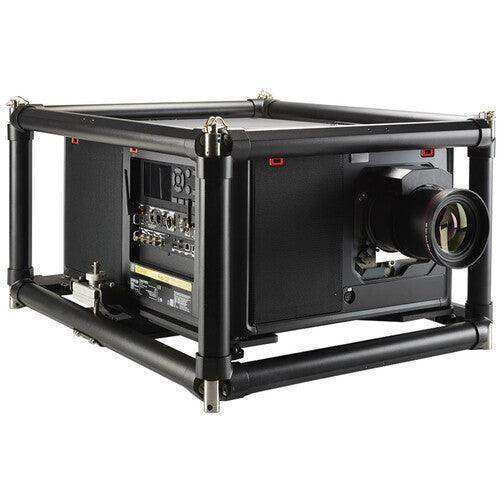

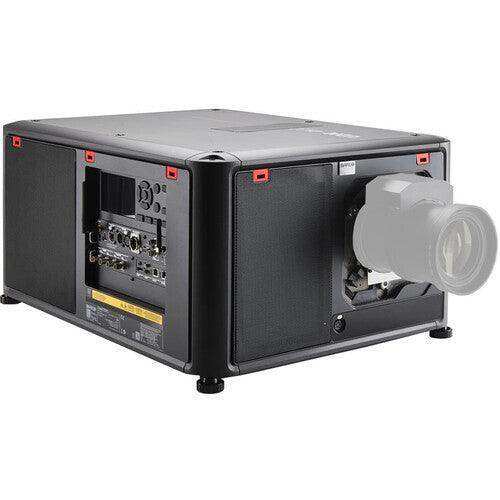

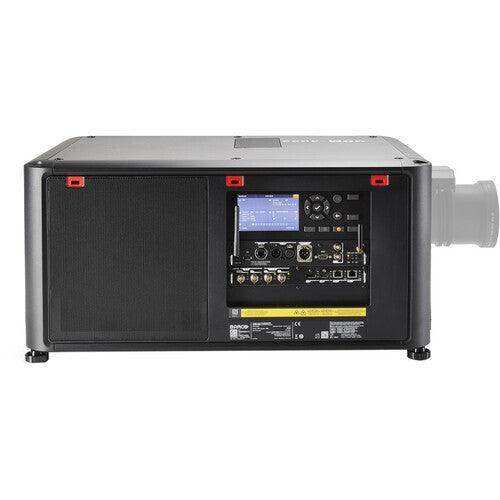

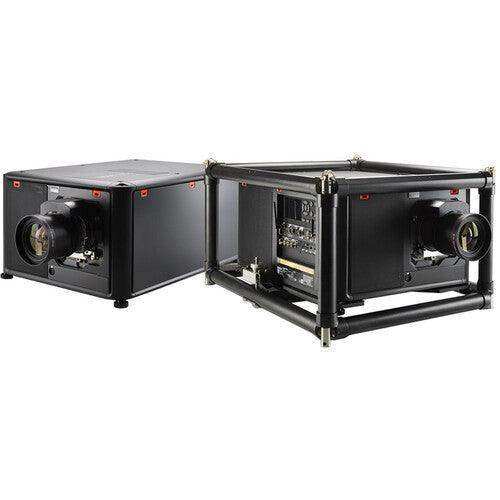

Barco R9401000-B UDM-W30 30,000-Lumen WUXGA Laser DLP Projector (No Lens, Gen2)

Product Overview

The Barco UDM-W30 large venue projector is built for the brightest permanent installations and live events — large auditoriums, houses of worship, projection mapping, and arena-scale staging. This 30,000-lumen-class 3-chip DLP laser projector delivers native WUXGA resolution from a laser phosphor source rated for 20,000 hours, with no lamps to replace. At 48 kg it is the most compact, lightest projector in its brightness category, cutting rigging and freight cost. Barco Pulse electronics and the Insights Management Suite make it a connected, remotely managed projector for multi-site fleets.

Product Description

The UDM-W30 (R9401000-B, Gen2) uses three 0.96″ DMD chips and a laser phosphor engine to deliver up to 29,000 ISO lumens (26,000 ANSI) at native WUXGA 1,920 × 1,200, with a color spectrum that exceeds the Rec. 709 space. It accepts input resolutions up to 4K, and Barco Single Step Processing handles warping, scaling, and processing in one pass for low latency and reduced dark time — valuable for live camera work and edge-blended arrays using ScenergiX. The modular, sealed-core design supports field serviceability and 360° orientation, while a built-in dust and pollution filter suits demanding venues. As a connected laser phosphor projector for permanent installation, it offers integrated 3G connectivity and the Insights dashboard for remote brightness control, log access, and fleet monitoring. It ships as a body only — Barco TLD+ lenses are selected separately to match throw distance, and the full TLD+ range is stocked on creationnetworks.net.

Key Features

• 30,000-lumen-class 3-chip DLP — Up to 29,000 ISO lumens for the largest screens and high-ambient-light venues.
• Native WUXGA resolution — 1,920 × 1,200 imaging with input support up to 4K (4,096 × 2,160).
• Pulse Single Step Processing — Warp, scale, and process in one step for low latency and reduced dark time.
• FLEX² brightness and resolution locking — Lock output per show for predictable, repeatable performance.
• 20,000-hour laser phosphor source — Lamp-free operation removes consumable cost, flicker, and lamp maintenance.
• Most compact 30K-class chassis — 48 kg lowers rigging labor and shipping cost versus heavier projectors.
• ScenergiX edge blending — Horizontal and vertical blending with embedded warp for multi-projector arrays.
• Insights Management Suite — Cloud dashboard, remote log access, and integrated 3G for fleet monitoring.
• 360° orientation with dust filter — Mount in any orientation; built-in filtration protects the optical path.

Typical Applications

• Auditorium — 30K-class output drives the largest lecture-hall and performing-arts screens.
• House of worship — High brightness and edge blending suit large sanctuary screens and IMAG.
• Broadcast studio — Low-latency Pulse processing supports live camera and virtual-set workflows.
• All-hands room — Fills arena-scale town-hall displays where other projectors fall short.
• Government space — Suited to large command, visualization, and briefing rooms.
• Multi-purpose room — Flexible mounting and locking presets adapt to changing event configurations.

Technical Specifications

*Brightness ±10%. **WiFi/GSM availability varies by country.

Frequently Asked Questions

Does the UDM-W30 include a lens?

No. It ships as a body only. Select a Barco TLD+ lens by throw ratio to match your throw distance — the full TLD+ range is stocked on creationnetworks.net.

How does it integrate into an existing AV system?

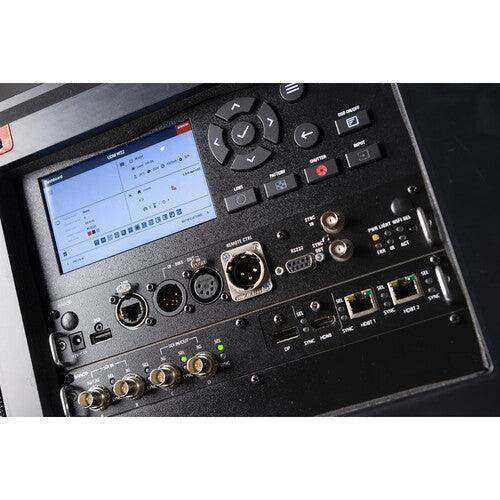

The UDM Pulse platform provides HDBaseT, HDMI 2.0 (HDCP 2.2, HDR10), DisplayPort 1.2, and Quad 3G/12G SDI inputs, with control over RS232, Ethernet/RJ-45, IR, DMX 512, and the integrated web server.

What are the installation requirements?

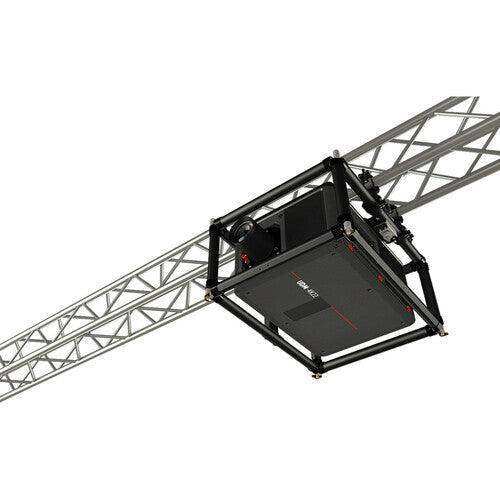

It supports 360° orientation for ceiling, truss, or floor-stack mounting and draws up to 2,200 W at 200–240V/13.5A, which should be factored into power and HVAC planning.

How is the projector fleet managed and serviced?

The Barco Insights dashboard provides remote log access and brightness control over integrated 3G. The modular, sealed-core design with built-in dust filtration supports fast field service.

What warranty and support does it carry?

The UDM-W30 carries a 3-year Barco warranty, with optional Essential Care extensions. Creation Networks supports configuration, lens selection, and post-sale technical questions — contact sales@creationnetworks.net.
