Barco PDS-4K HDMI & SDI with Audio/DisplayPort Card; Single/dual screen presentation switcher with Dante Audio - R9009653

Product Overview

The Barco PDS-4K HDMI & SDI presentation switcher (R9009653) is a small-venue 4K seamless switcher built for live event and staging environments that require reliable single, dual, and quad screen switching. This configuration ships with the Audio/DisplayPort 1.2 option card installed, adding two DisplayPort 1.2 inputs and full Dante audio embedding and de-embedding. It accepts UHD 4K signals at 60 Hz across six HDMI 2.0 and two 12G-SDI inputs, applying Event Master Athena scaling for clean transitions. Operators control the unit from the front-panel pushbuttons or over Ethernet through the built-in web UI.

Product Description

The PDS-4K R9009653 combines six HDMI 2.0 inputs, two 12G-SDI inputs, and two DisplayPort 1.2 inputs into a single processing engine that drives two mirrored sets of HDMI and 12G-SDI program outputs. Switching modes cover single screen, dual screen, and quad screen layouts, and operators can show up to two live sources at once using the built-in picture-in-picture layers. Athena scaling technology, shared with the Barco Event Master line, keeps signal clarity high and minimizes scaling artifacts during transitions. The included Audio/DisplayPort card adds two RJ45 Dante audio inputs so embedded audio can follow video or be routed independently across a Dante network.

Buyers comparing configurations can review the PDS-4K HDMI with Audio/DisplayPort card (R9009652) for an HDMI-only Dante option, or the base PDS-4K HDMI & SDI switcher (R9009651B). For larger productions, Barco Event Master processors and I/O cards extend the same scaling platform. Browse the full Barco collection for matching processing and projection gear.

Key Features

• Single / Dual / Quad Screen Switching — One unit handles single, dual, and quad screen program outputs for flexible stage and breakout-room layouts.
• 6x HDMI 2.0 and 2x 12G-SDI Inputs — Eight primary video inputs accept UHD 4K sources at up to 60 Hz.

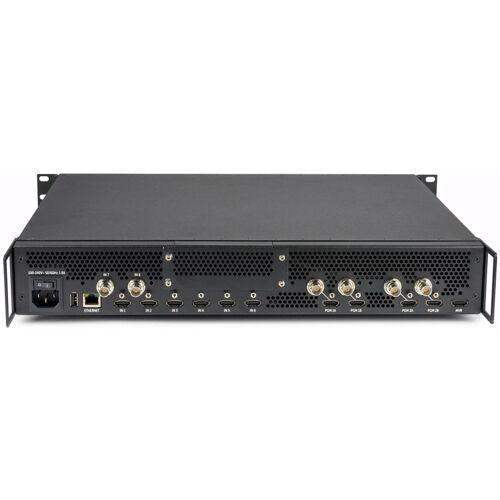

• Mirrored HDMI and 12G-SDI Outputs — Two sets of four HDMI and four 12G-SDI outputs feed main and backup destinations.
• Audio / DisplayPort 1.2 Card Included — Adds two DisplayPort 1.2 inputs and expanded audio handling in the open option slot.
• Dante Audio Networking — Two RJ45 Dante inputs allow embedding and de-embedding of audio over standard IP networks.
• Athena Scaling Technology — Shared Event Master scaling preserves clarity and reduces artifacts during source transitions.
• Picture-in-Picture Layers — Display up to two live sources simultaneously for added on-screen interactivity.

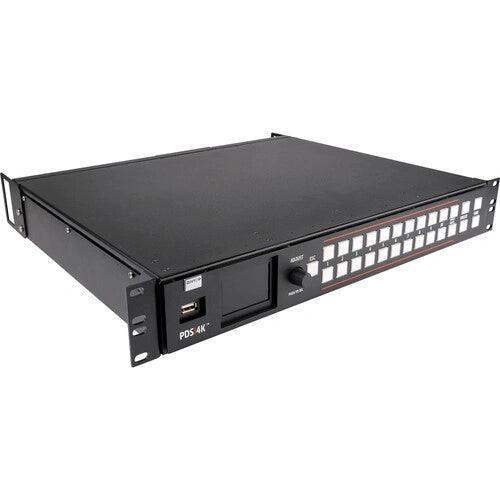

• Front Panel and Web UI Control — Operate via intuitive pushbuttons or remotely over Ethernet through the built-in web interface.

Typical Applications

• Live events and corporate general sessions requiring 4K seamless switching
• Rental and staging deployments needing single, dual, or quad screen output
• Houses of worship, auditoriums, and multi-purpose venues
• Broadcast-adjacent production and control room signal management with Dante audio

Technical Specifications

Frequently Asked Questions

Does the R9009653 include the Dante audio card? Yes. This configuration ships with the Audio/DisplayPort 1.2 option card installed, which provides two DisplayPort 1.2 inputs and Dante audio embedding and de-embedding.

What is the maximum supported resolution? The PDS-4K processes UHD 4K (3840 x 2160) video at up to 60 Hz.

How many screens can it drive at once? It supports single, dual, and quad screen switching, with picture-in-picture for up to two simultaneous live sources.

How is the switcher controlled? Operators use the front-panel pushbuttons or connect over Ethernet to the built-in web UI for remote operation.

Does it work with other Barco gear? Yes. It shares Athena scaling with the Barco Event Master platform and pairs with familiar Barco visualization and presentation solutions.
