Barco CXP Expansion Link Card - R9004746

Product Overview

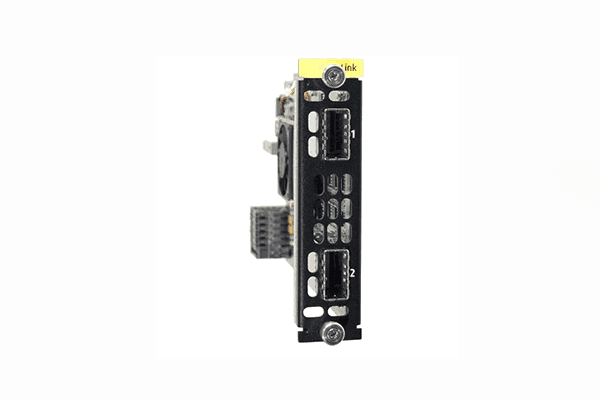

The Barco CXP Expansion Link Card (R9004746) extends the processing capacity of Barco Event Master processors by linking units together with high-bandwidth CXP interconnects. It is a 2-port 120G CXP stacking module that lets an E2 or S3-4K processor act as a connected stage box for additional input, output, and scaling capacity. The card uses MTP fiber optic cabling to carry an aggregated 120 Gbps of video data between frames. It installs as a plug-in module in the Event Master card slots.

Product Description

The CXP Expansion Link Card R9004746 is the interconnect that ties two Barco Event Master processors into a single, larger system. Each card provides two 120G CXP ports, and the 120G links reach up to 100 to 300 meters over MTP fiber optic cable depending on the run, allowing the processors to be distributed across a stage or venue. With the expanded link in place, the combined system gains more input and output capacity along with additional scaling and switching layers while maintaining picture quality across the production.

This card is designed for the Barco Event Master platform, including the E2 and S3-4K processors. It pairs with Event Master I/O cards such as the HDMI 2.0 Quad Input Card (R9004791B) and HDMI 2.0 Quad Output Card (R9004792B). Browse the full Barco collection for processors, I/O cards, and related staging gear.

Key Features

• Event Master Expansion — Links and expands Barco Event Master processors for greater system capacity.
• 2-Port 120G CXP Stacking Module — Two CXP ports provide the interconnect between processor frames.
• 120 Gbps Aggregate Throughput — Carries an aggregated data rate of 120 Gbps per second between units.
• MTP Fiber Reach — 120G interconnect links reach up to 100 to 300 meters over MTP fiber optic cable.
• Stage Box Operation — Lets an E2 or S3-4K processor act as a remote stage box for distributed I/O.
• Plug-In Module Form Factor — Installs as a plug-in card in Event Master processor slots.
• High-Density CXP Connector — High-end, high-density CXP connector for reliable interconnect.

Typical Applications

• Live events and rental staging using linked Barco Event Master processors
• Distributed stage box deployments over fiber between FOH and stage
• Large-format video productions needing expanded input, output, and scaling capacity
• Broadcast and control room systems built on the Event Master platform

Technical Specifications

Frequently Asked Questions

Which processors is the R9004746 compatible with? The Barco Event Master E2 and S3-4K processors.

What does the CXP card do? It links two Event Master processors so one can act as a stage box, adding input, output, and scaling capacity to the combined system.

What cabling does it use? MTP fiber optic cable, with 120G interconnect links reaching up to 100 to 300 meters.

What is the throughput? The card provides an aggregated data rate of 120 Gbps.

How does it install? As a plug-in module in the Event Master processor card slots.
