Barco PDS-4K HDMI Single/dual screen presentation switcher IN: 6x HDMI 2.0 OUT: 4x HDMI - R9009650B
Barco PDS-4K HDMI Single/dual screen presentation switcher IN: 6x HDMI 2.0 OUT: 4x HDMI - R9009650B is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Barco PDS-4K HDMI Single/dual screen presentation switcher IN: 6x H...
Product Overview

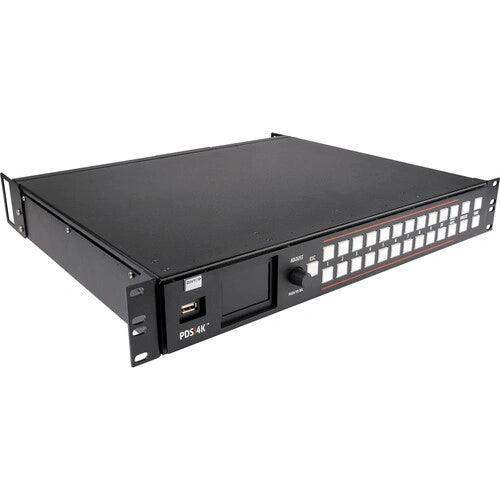

The Barco PDS-4K HDMI presentation switcher (R9009650B) is a small-venue 4K seamless switcher and the successor to the PDS-902 3G. This HDMI-only base configuration accepts six HDMI 2.0 inputs and drives four HDMI outputs, processing UHD 4K signals at up to 60 Hz with low latency. Event Master Athena scaling keeps source transitions clean for small to mid-size events. Operators run the unit from front-panel pushbuttons or remotely over Ethernet through the built-in web UI.
Product Description
The PDS-4K R9009650B routes six HDMI 2.0 inputs into a processing engine that drives four HDMI program outputs, supporting single, dual, and quad screen switching. The unit supports picture-in-picture to display up to two live sources at once, and Athena scaling technology, shared across the Barco Event Master platform, maintains clarity and limits artifacts during transitions. An open option card slot keeps the switcher expandable, accepting the Audio/DisplayPort 1.2 card to add DisplayPort inputs and Dante audio later.
Productions that need SDI connectivity should consider the PDS-4K HDMI & SDI switcher (R9009651B), while those wanting Dante audio out of the box can choose the PDS-4K HDMI with Audio/DisplayPort card (R9009652). Browse the full Barco collection for Event Master processors and projection gear.
Key Features
- Single / Dual / Quad Screen Switching — Handles single, dual, and quad screen program outputs for flexible venue layouts.
- 6x HDMI 2.0 Inputs — Six HDMI inputs accept UHD 4K sources at up to 60 Hz.
- 4x HDMI Outputs — Four HDMI program outputs feed displays, projectors, and recording destinations.
- 4K 60 Hz Processing — UHD 4K (3840 x 2160) at 60 Hz with low-latency transitions.
- Athena Scaling Technology — Shared Event Master scaling preserves clarity and reduces artifacts.
- Picture-in-Picture Layers — Display up to two live sources simultaneously for added interactivity.
- Open Option Card Slot — Expandable with the Audio/DisplayPort 1.2 card for DisplayPort inputs and Dante audio.
- Front Panel and Web UI Control — Operate via pushbuttons or remotely over Ethernet through the built-in web interface.
Typical Applications
- Small and mid-size live events and corporate sessions using HDMI sources
- Rental and staging deployments needing single, dual, or quad screen output
- Boardrooms, auditoriums, hotel ballrooms, and multi-purpose venues
- Education, training, and house-of-worship presentation systems
Technical Specifications
| Manufacturer | Barco |
| Manufacturer Part Number | R9009650B |
| Product Series | PDS-4K |
| Maximum Resolution | UHD 4K (3840 x 2160) at 60 Hz |
| HDMI Inputs | 6x HDMI 2.0 |
| HDMI Outputs | 4x HDMI |
| Switching Modes | Single / Dual / Quad screen |
| Option Slot | 1x open (accepts Audio/DisplayPort 1.2 + Dante card) |
| Scaling | Event Master Athena scaling |
| Control | Front-panel pushbuttons, Ethernet web UI |
| Limited Warranty | 3 Year |
Frequently Asked Questions
Does the R9009650B have SDI inputs? No. This is the HDMI-only base model. For 12G-SDI I/O, choose the PDS-4K HDMI & SDI switcher (R9009651B).
Can I add Dante audio later? Yes. The open option slot accepts the Audio/DisplayPort 1.2 card, which adds DisplayPort inputs and Dante audio.
What is the maximum supported resolution? UHD 4K (3840 x 2160) at up to 60 Hz.
How many screens can it drive? Single, dual, and quad screen switching, with picture-in-picture for up to two live sources.
How is it controlled? Through front-panel pushbuttons or remotely over Ethernet via the built-in web UI.
