Barco G62/I600 Rigging Frame - R9802814

Product Overview

The Barco G62/I600 Rigging Frame (R9802814) is a dedicated mounting structure that prepares Barco G62 and I600 series laser projectors for suspended truss installation and ground stacking. It carries the projector securely while providing precise mechanical alignment in the field. The frame is built for both rental staging and fixed-install applications where reliable rigging is required. It accepts third-party rigging hardware (rigtec) through standard attachment points.

Product Description

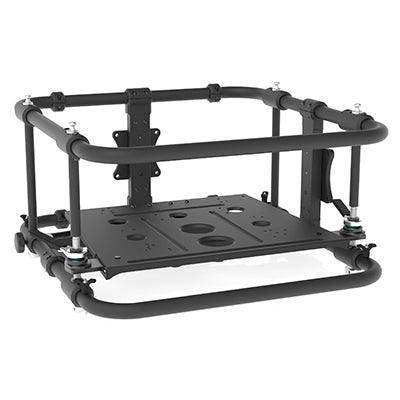

This rigging frame transforms a Barco G62 or I600 projector into a riggable unit that can be flown from truss or assembled into a ground stack. As shown in the product image, the steel frame surrounds the projector body and presents the pickup and stacking points needed for safe suspension. An integrated adjustment system lets technicians fine-tune the projector across the roll, pitch and yaw axes, so image geometry can be corrected after the unit is in position. Up to two or three frames can be stacked together, either resting on a flat surface as a ground stack or suspended together from a truss for multi-projector blends. The frame supports the Barco G62 and I600 platforms, including the G62-W9, G62-W11 and G62-W14 models commonly specified for large-venue work. Pair it with the rest of the Barco projection lineup for a complete staging package.

Key Features

• Roll, pitch and yaw adjustment — An integrated mechanical system lets you fine-tune projector orientation across all three axes after rigging.
• Stackable design — Up to two or three frames combine for ground stacks or suspended truss stacks in multi-projector setups.
• Truss and ground use — Supports both flown installation from truss and ground stacking on a flat surface.
• Third-party rigtec compatible — Standard attachment points accept common third-party rigging hardware.
• G62 and I600 fit — Engineered specifically for the Barco G62 and I600 projector chassis, including G62-W9, G62-W11 and G62-W14.
• Rental-ready construction — Steel frame built to withstand repeated transport, setup and strike on touring and staging jobs.
• Compact footprint — Measures 69.2 x 65.4 x 35.8 cm and weighs 17.9 kg for manageable handling and storage.

Typical Applications

• Large-venue rental — Flying G62 or I600 projectors over corporate, concert and event stages.
• Touring — Repeated rigging and de-rigging of projectors across show dates.
• Fixed installation — Permanent truss-mounted or stacked projector setups in auditoriums and houses of worship.

Technical Specifications

Frequently Asked Questions

Which projectors does the R9802814 rigging frame fit? It is designed for the Barco G62 and I600 series, including the G62-W9, G62-W11 and G62-W14 models.

Can the frame be flown from truss? Yes. The frame provides pickup points for suspended truss installation and accepts third-party rigging hardware.

How many frames can be stacked together? Up to two or three frames can be combined as a ground stack on a flat surface or as a suspended truss stack.

Does the frame allow image alignment after rigging? Yes. An integrated adjustment system fine-tunes the projector across roll, pitch and yaw axes once it is in position.
