Barco G lens (0.65 - 0.75 : 1) Short Throw - R9802300

Product Overview

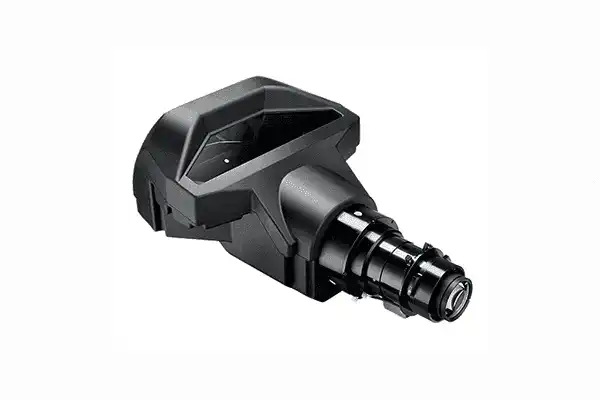

The Barco R9802300 G lens is a short-throw motorized zoom lens for the Barco G-series installation projectors, including the G50, G60 and G62 families. With a 0.65-0.75:1 throw ratio optimized for WUXGA, it produces a large image from a very short projector-to-screen distance, ideal for shallow rooms and tight mounting positions. It is the widest, shortest-throw lens in the G-series range. Motorized zoom and focus allow framing from the projector controls.

Product Description

The R9802300 is a short-throw G-series zoom lens with a 9.96-11.19mm focal length, a working aperture of f/2.0 (wide) to f/2.1 (tele) and a 1.15x zoom ratio. Throw distance ranges from 0.68 to 8.29 m with a focus range of 50 to 350 inches, and the lens weighs about 1.2 kg. It supports a 90-degree turned output for optimal viewing angle and a lens shift of up to +/-150% on specific projectors. Detailed optical data is available on the spec sheet. For longer placement on G-series projectors, see the GC lens options, and browse the full Barco collection for compatible projectors and accessories.

Key Features

• Ultra short-throw 0.65-0.75:1 ratio — optimized for WUXGA, producing a large image from a very short distance.
• Motorized zoom and focus — 1.15x zoom controlled from the projector interface for accurate setup.
• Lens shift up to +/-150% — flexible image positioning on supported projectors.
• 90-degree turned output — supports an optimal viewing angle in challenging mounting geometry.
• f/2.0-2.1 aperture — bright short-throw optics matched to G-series light output.
• Short throw distance — 0.68 to 8.29 m enables large images in confined spaces.
• Compact and light — about 1.2 kg, easy to handle during installation.
• G-series compatibility — designed for Barco G50, G60 and G62 installation projectors.

Typical Applications

• Shallow rooms and confined spaces needing a large image at very short distance.
• Fixed installations using Barco G50, G60 or G62 series projectors.
• Houses of worship and corporate spaces where the projector must sit close to the screen.
• Museum, simulation and immersive environments with short-throw geometry.

Technical Specifications

Frequently Asked Questions

Which Barco projectors does the R9802300 fit? It is designed for Barco G-series installation projectors, including G50, G60 and G62 models such as the G60-W7, G60-W8 and G60-W10.

What is the throw ratio? The throw ratio is 0.65-0.75:1, an ultra short throw optimized for WUXGA resolution.

Why does it have a 90-degree turned output? The turned output helps achieve an optimal viewing angle in mounting situations where a standard straight lens would be difficult to position.

How close can the projector sit to the screen? Throw distance ranges from about 0.68 to 8.29 m, allowing very short projector-to-screen placement for a given image size.
